Concentric Reducer Buttweld Fitting

  2. Buttweld Fitting
  3. Concentric Reducer Buttweld Fitting

Concentric Reducer Buttweld Fitting Manufacturer

Stainless Steel Concentric Reducer, Carbon Steel Concentric Reducer Fittings, Nickel Alloy Concentric Reducer, Alloy Steel Concentric Reducer Pipe Fittings Manufacturer & Exporter

ASME / ANSI B 16.9 Concentric Reducer Buttweld Fittings, ASTM A403 SS Concentric Reducer, ANSI B16.28 Concentric Reducer Pipe Fittings Suppliers & Dealers in India

A Concentric Pipe Reducer is used to join pipes on the same axis. The concentric weld reducer is a cone shaped fitting used when there is a change in the diameters of two pipes to be attached. ACE ALLOYS LLP is a quality Concentric Reducer Supplier and manufacturer based in India.  Our concentric reducer fittings are useful when there is a common centre line. Reducers in vertical lines are generally concentric unless specified. We also manufacture tri clamp concentric reducers, grooved concentric reducers for our customers varied needs.

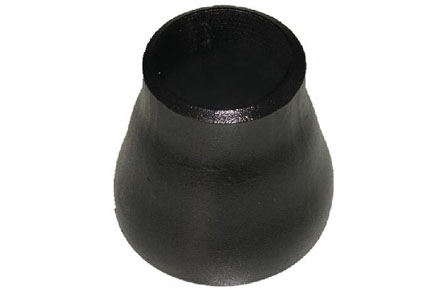

Concentric Reducer Buttweld Fitting
Concentric Reducer Buttweld Fitting

We are well-known stainless steel concentric reducer fittings, ANSI / ASME B16.9 Concentric Reducer Fittings and forged concentric reducer pipe fittings manufacturer. We also stock stainless steel concentric reducer fittings, carbon steel concentric reducer fittings for their constant demand. Alloy concentric reducer fittings, titanium concentric reducer fittings and Monel concentric reducer fittings can be manufactured as per customer requirements. These Buttweld concentric reducer fittings are known for their durability, reliability and long life.

For excellent mechanical strength, high corrosion and oxidation resistance we recommend our nickel concentric reducer fittings or Cupro nickel concentric reducer fittings and Hastelloy concentric reducer fittings. These are especially good for use at high temperatures due to their excellent heat resistant powers.

At Ace Alloy, our experience in the international market and an in-depth understanding of the industry enables us to provide our customers with the best possible solutions for their requirements. Contact us for high quality products that meet national and international standards. These buttweld concentric reducer fittings are customisable. Our expert team can help you choose the best solution as per your needs and deliver high quality products at affordable prices.

Monel 400 / K500 Concentric Reducer, Inconel 200 / 201 Concentric Reducer Fittings, Hastelloy C22 / C276 Concentric Reducer, Duplex Steel S31803 Concentric Reducer Pipe Fittings Dealer & Stockists

Concentric Reducer Buttweld Fitting Availability:

  • Butt Weld Concentric Reducer Buttweld Fitting
  • Seamless Concentric Reducer Buttweld Fitting
  • Welded Concentric Reducer Buttweld Fitting
  • ERW Concentric Reducer Buttweld Fitting
  • Fabricated Concentric Reducer Buttweld Fitting

Concentric Reducer Buttweld Fitting Specifications:

Standards ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule Sch 5 TO Sch XXS.
Sizes 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” )
Materials Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type Butt Weld (BW) / Seamless / ERW / Welded / Fabricated
Thickness Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Concentric Reducer Buttweld Fitting Dimensions

Concentric Reducer Buttweld Fitting Dimensions
Nominal Diameter Outside Diameter End to End
D1*D2
DN NPS Series A Series B H
20×15 3/4×1/2 26.9×21.3 25×18 38
20×10 3/4×3/8 26.9×17.3 25×14 38
25×20 1×3/4 33.7×26.9 32×25 51
25×15 1×1/2 33.7×21.3 32×18 51
32×25 1.1/4×1 42.4×33.7 38×32 51
32×20 1.1/4×3/4 42.4×26.9 38×25 51
32×15 1.1/4×1/2 42.4×21.3 38×18 51
40×32 1.1/2×1.1/4 48.3×42.4 45×38 64
40×25 1.1/2×1 48.3×33.7 45×32 64
40×20 1.1/2×3/4 48.3×26.9 45×25 64
40×15 1.1/2×1/2 48.3×21.3 45×18 64
50×40 2×1.1/2 60.3×48.3 57×45 76
50×32 2×1.1/4 60.3×42.4 57×38 76
50×25 2×1 60.3×33.7 57×32 76
50×20 2×3/4 60.3×26.9 57×25 76
65×50 2.1/2×2 73.0×60.3 76×57 89
65×40 2.1/2×1.1/2 73.0×48.3 76×45 89
65×32 2.1/2×1.1/4 73.0×42.4 76×38 89
65×25 2.1/2×1 73.0×33.7 76×32 89
80×65 3×2.1/2 88.9×73.0 89×76 89
80×50 3×2 88.9×60.3 89×57 89
80×40 3×1.1/2 88.9×48.3 89×45 89
80×32 3×1.1/4 88.9×42.4 89×38 89
90×80 3.1/2×3 101.6×88.9 - 102
90×65 3.1/2×2.1/2 101.6×73.0 - 102
90×50 3.1/2×2 101.6×60.3 - 102
90×40 3.1/2×1.1/2 101.6×48.3 - 102
90×32 3.1/2×1.1/4 101.6×42.4 - 102
100×90 4×3.1/2 114.3×101.6 - 102
100×80 4×3 114.3×88.9 108×89 102
100×65 4×2.1/2 114.3×73.0 108×76 102
100×50 4×2 114.3×60.3 108×57 102
100×40 4×1.1/2 114.3×48.3 108×45 102
125×100 5×4 141.3×114.3 133×108 127
125×90 5×3.1/2 141.3×101.6 - 127
125×80 5×3 141.3×88.9 133×89 127
125×65 5×2.1/2 141.3×73.0 133×76 127
125×50 5×2 141.3×60.3 133×57 127
150×125 6×5 168.3×141.3 159×133 140
150×100 6×5 168.3×114.3 159×108 140
150×90 6×3.1/2 168.3×101.6 - 140
150×80 6×3 168.3×88.9 159×89 140
150×65 6×2.1/2 168.3×73.0 159×76 140
200×150 8×6 219.1×168.3 219×159 152
200×125 8×5 219.1×141.3 219×133 152
200×100 8×4 219.1×114.3 219×108 152
200×90 8×3.1/2 219.1×101.6 - 152
250×200 10×8 273.0×219.1 273×219 178
250×150 10×6 273.0×168.3 273×159 178
250×125 10×5 273.0×141.3 273×133 178
250×100 10×4 273.0×114.3 273×108 178
300×250 12×10 323.9×273.1 325×273 203
300×200 12×8 323.9×219.1 325×219 203
300×150 12×6 323.9×168.3 325×159 203
300×125 12×5 323.9×141.3 325×133 203
350×300 14×12 355.6×323.9 377×325 330
350×250 14×10 355.6×273.0 377×273 330
350×200 14×8 355.6×219.1 377×219 330
350×150 14×6 355.6×168.3 377×159 330
400×350 16×14 406.4×355.6 426×377 356
400×300 16×12 406.4×323.9 426×325 356
400×250 16×10 406.4×273.0 426×273 356
400×200 16×8 406.4×219.1 426×219 356
450×400 18×16 457×406.4 478×426 381
450×350 18×14 457×355.6 478×377 381
450×300 18×12 457×323.9 478×325 381
450×250 18×10 457×273.0 478×273 381
500×450 20×18 508×457 529×478 508
500×400 20×16 508×406.4 529×426 508
500×350 20×14 508×355.6 529×377 508
500×300 20×12 508×323.9 529×325 508
550×500 22×20 559×508 - 508
550×450 22×18 559×457 - 508
550×400 22×16 559×406.4 - 508
550×350 22×14 559×355.6 - 508
600×550 24×22 610×559 - 508
600×500 24×20 610×508 630×529 508
600×450 24×18 610×457 630×478 508
600×400 24×22 610×406.4 630×426 508
650×600 26×24 660×610 - 610
650×550 26×22 660×559 - 610
650×500 26×20 660×508 - 610
650×450 26×18 660×457 - 610
700×650 28×26 711×660 - 610
700×600 28×24 711×610 720×630 610
700×550 28×22 711×559 - 610
700×500 28×20 711×508 720×530 610
750×700 30×28 762×711 - 610
750×650 30×26 762×660 - 610
750×600 30×24 762×610 - 610
750×550 30×22 762×559 - 610
800×750 32×30 813×762 - 610
800×700 32×28 813×711 820×720 610
800×650 32×26 813×660 - 610
800×600 32×24 813×610 820×630 610
850×800 34×32 864×813 - 610
850×750 34×30 864×762 - 610
850×700 34×28 864×711 - 610
850×650 34×26 864×660 - 610
900×850 36×34 914×864 - 610
900×800 36×32 914×813 920×820 610
900×750 36×30 914×762 - 610
900×700 36×28 914×711 920×720 610
950×900 38×36 965×914 - 610
950×850 38×34 965×864 - 610
950×800 38×32 965×813 - 610
950×750 38×30 965×762 - 610
1000×950 40×38 1016×965 - 610
1000×900 40×36 1016×914 1020×920 610
1000×850 40×34 1016×864 - 610
1000×800 40×32 1016×813 1020×820 610
1050×1000 42×40 1067×1016 - 610
1050×950 42×38 1067×965 - 610
1050×900 42×36 1067×914 - 610
1050×850 42×34 1067×864 - 610
1100×1050 44×42 1118×1067 - 610
1100×1000 44×40 1118×1016 1120×1020 610
1100×950 44×38 1118×965 - 610
1100×900 44×36 1118×914 1220×920 610
1150×1100 46×44 1168×1118 - 711
1150×1050 46×42 1168×1067 - 711
1150×1000 46×40 1168×1016 - 711
1150×950 46×38 1168×965 - 711
1200×1150 48×46 1220×1168 - 711
1200×1100 48×44 1220×1118 1220×1120 711
1200×1050 48×42 1220×1067 - 711
1200×1000 48×40 1220×1016 1220×1020 711
The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld Concentric Reducer Material & Grades

Stainless Steel Buttweld Concentric Reducer
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld Concentric Reducer
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld Concentric Reducer
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld Concentric Reducer
ASTM A420 WPL3, A420 WPL6
Alloy Steel Buttweld Concentric Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld Concentric Reducer
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Types of Concentric Reducer Buttweld Fitting

  • 201 Stainless Steel Reducer
  • 202 Stainless Steel Reducer
  • 304 Stainless Steel Reducer
  • 304L Stainless Steel Reducer
  • 316TI Stainless Steel Reducer
  • 316H Stainless Steel Reducer
  • 316L Stainless Steel Reducer
  • 316LN Stainless Steel Reducer
  • 317 Stainless Steel Reducer
  • 317L Stainless Steel Reducer
  • 321 Stainless Steel Reducer
  • 347H Stainless Steel Reducer
  • 904L Stainless Steel Reducer
  • 321H Stainless Steel Reducer
  • 347 Stainless Steel Reducer
  • Stainless Steel Buttweld Reducer
  • Duplex Stainless Steel Reducer
  • 304H Stainless Steel Reducer
  • 309S Stainless Steel Reducer
  • 310S Stainless Steel Reducer
  • 310H Stainless Steel Reducer
  • 316 Stainless Steel Reducer
  • Alloy Steel Buttweld Reducer
  • Stainless Steel Reducer
  • Carbon Steel Reducer
  • Alloy Steel Reducer
  • Carbon Steel Buttweld Reducer
  • 309H Stainless Steel Reducer
  • Super Duplex Reducer
  • Steel Reducer Pipe Fittings
  • Stainless Steel Concentric Reducer Suppliers
  • SS Concentric Reducers
  • Welded Butt weld Concentric Reducer Stockholder
  • Seamless Butt weld Concentric Reducer Distributors
  • Carbon Steel Concentric Reducer
  • High Quality Concentric Reducer Manufacturer
  • Duplex Steel Buttweld Concentric Reducer
  • Super Duplex Steel Buttweld Concentric Reducer
  • Copper Nickel Concentric Reducer
  • High Nickel Alloy Concentric Reducer
  • Hastelloy Concentric Reducer Stockist
  • Titanium Buttweld Concentric Reducer
  • Inconel Butt weld Concentric Reducer
  • Buttweld Concentric Reducer
  • Butt Weld Pipe Reducers

Concentric Reducer Buttweld Fitting Available Standards

  • ASTM A403 Reducer
  • ASTM A234 WPB Reducer
  • ASTM A694 Reducer
  • ASTM A860 WPHY 52 Reducer
  • ASTM A860 WPHY 56 Reducer
  • ASTM A860 WPHY 60 Reducer
  • ASTM A860 WPHY 65 Reducer
  • ASTM A860 WPHY 70 Reducer
  • ASTM A234 Reducer
  • ASTM A234 Alloy Steel Reducer
  • ASTM A420 WPL6 Reducer
  • ASTM A860 WPHY 42 Reducer
  • ASTM A420 WPL3 Reducer
  • ASTM A234 WP12 Reducer
  • ASTM A234 WP11 Reducer
  • ASTM A234 WP22 Reducer
  • ASTM A234 WP5 Reducer
  • ASTM A234 WP9 Reducer
  • ASTM A234 WP91 Reducer
  • ASTM A403 Stainless Steel Concentric Reducers

Other Standards of Concentric Reducer Buttweld Fitting

  • DIN 1.4961 Reducer
  • DIN 1.4840 Reducer
  • DIN 1.4845 Reducer
  • DIN 1.4449 Reducer
  • DIN 1.4438 Reducer
  • DIN 1.4841 Reducer
  • ASME B16.9 Reducer
  • ASME B16.25 Reducer
  • MSS SP-75 Reducer
  • SCH10 Reducer
  • SCH20 Reducer
  • SCH30 Reducer
  • STD SCH40 Reducer
  • DIN 1.4305 Reducer
  • DIN 1.4301 Reducer
  • DIN 1.4307 Reducer
  • DIN 1.4948 Reducer
  • DIN 1.4401 Reducer
  • DIN 1.4404 Reducer
  • DIN 1.4919 Reducer
  • DIN 1.4571 Reducer
  • DIN 1.4541 Reducer
  • DIN 1.4878 Reducer
  • UNS S32900 Reducer
  • UNS S34700 Reducer
  • UNS S34709 Reducer
  • UNS S31000 Reducer
  • UNS S31008 Reducer
  • Duplex Steel Reducer
  • UNS S31700 Reducer
  • UNS S31703 Reducer
  • UNS S31400 Reducer
  • SCH60 Reducer
  • SCH XS Reducer
  • SCH80. Reducer
  • DIN 2605 Reducer
  • DIN 2609 Reducer
  • DIN 2617 Reducer
  • EN 10253-3 Reducer
  • A403 Gr WP304 Reducer
  • A403 Gr WP 304L Reducer
  • UNS N08904 Reducer
  • UNS S17400 Reducer
  • A403 Gr WP316Ti Reducer
  • UNS S32109 Reducer
  • A403 Gr WP321 Reducer
  • A403 Gr WP321H Reducer
  • A403 Gr WP347 Reducer
  • A403 Gr WP347H Reducer
  • A403 Gr WP317 Reducer
  • A403 Gr WP 317L Reducer
  • A234WPC Reducer
  • A420 WPL6 Reducer
  • UNS S30300 Reducer
  • UNS S30400 Reducer
  • UNS S30403 Reducer
  • UNS S30409 Reducer
  • UNS S31600 Reducer
  • UNS S31603 Reducer
  • UNS S31609 Reducer
  • DIN 1.4460 Reducer
  • DIN 1.4550 Reducer
  • DIN 1.4006 Reducer
  • DIN 1.4005 Reducer
  • DIN 1.4021 Reducer
  • DIN 1.4016 Reducer
  • UNS S31635 Reducer
  • UNS S32100 Reducer
  • UNS S41000 Reducer
  • UNS S41600 Reducer
  • UNS S42000 Reducer
  • A403 Gr WP316 Reducer
  • A403 Gr WP316L Reducer
  • UNS S43000 Reducer
  • UNS S44600 Reducer
  • UNS S44200 Reducer
  • UNS S15500 Reducer
  • UNS S13800 Reducer
  • UNS S66286 Reducer
  • UNS S66286 Reducer
  • UNS S20910 Reducer
  • UNS S21800 Reducer
  • SCH160 Reducer
  • DIN 2615 Reducer
  • DIN 2616 Reducer
  • UNS S43020 Reducer
  • UNS S43100 Reducer
  • UNS S44004 Reducer
  • DIN 1.4104 Reducer
  • DIN 1.4057 Reducer
  • DIN 1.4125 Reducer
  • DIN 1.4762 Reducer
  • DIN 1.4742 Reducer
  • DIN 1.4539 Reducer
  • DIN 1.4542 Reducer
  • DIN 1.4545 Reducer
  • DIN 1.4534 Reducer
  • DIN 1.4980 Reducer
  • SCH100 Reducer
  • SCH120 Reducer
  • SCH140 Reducer
  • EN 10253-1 Reducer
  • ANSI B16.9 Buttweld Concentric Reducer Dealer
  • ASME B16.28 Buttweld Concentric Pipe Reducers Exporter
  • A234 AISI 4130 High Strength Low Alloyed Steel Reducer
  • ASME B16.9 Butt weld Concentric Reducer
  • EN 10253-2 Reducer
  • SCH XXS Reducer

Use the contact button below for Concentric Reducer Buttweld Fitting Price List and Ready stock information.

Call +91-22-6743 7444 / +91-22-6743 8222 OR

Email us at info@acealloysllp.com for quick response

SEND US YOUR REQUIREMENT

Concentric Reducer Buttweld Fitting Applications

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

Concentric Reducer Buttweld Fitting Manufacturer & Supplier

  • Concentric Reducer Buttweld Fitting manufacturer in india
  • Concentric Reducer Buttweld Fitting supplier in india
  • Concentric Reducer Buttweld Fitting manufacturer in Mumbai
  • Concentric Reducer Buttweld Fitting manufacturer in Pune
  • Concentric Reducer Buttweld Fitting supplier in Chennai
  • Concentric Reducer Buttweld Fitting manufacturer in Hyderabad

Top Export Destinations - Concentric Reducer

Iran, Argentina, Colombia, Mexico, Africa, Houston, Brazil, Tunisia, Kazakhstan, Vietnam, London, Trinidad and Tobago, Kuwait, Canada, Iraq, Sudan, Israel, Azerbaijan, Turkey, Egypt, Australia, Dubai, Chine, United States, Italy, Saudi Arabia, UAE, Malaysia, Sri Lanka, Nigeria, South Africa, Peru, Indonesia, UK, Germany, Bahrain, New Zealand, Thailand (Bangkok), Jordan, Russia, Venezuela, Ethiopa, Ghana, Uganda, Cameroon, Algeria, Morocco, Mozambique, Angola, Qatar, Yemen, Oman, Lebanon, Cyprus, Johannesburg, Brazzaville, Cairo, Maputo, Lagos, Douala, Tripoli, Mogadishu, Khartoum, Port Harcourt, Antananarivo, Port Elizabeth, Kano, New York, Abu Dhabi, Dar es Salaam, Benin, Kampala, Luanda, Conakry, Rabat, Bulawayo, Cape Town, Alexandria, Fez, Ouagadougou, Mbuji-Mayi, Soweto, Singapore, Dakar, Omdurman, Hong Kong, Zaria, Lubumbashi, Kinshasa, Harare, Abidjan, Yaoundé, Addis Ababa, Giza, Algiers, Accra, Colombo, Kaduna, Maiduguri, Nairobi, Casablanca, Pretoria, Kolwezi, Subra al-Haymah, Durban, Freetown, Bamako, Ibadan, South America, Austalia, Austria, Bangladesh, Mozabique, Myanmar, Netherland, Phillipine, Spain, Jordon.

We Supply Concentric Reducer to following Domestic Cities

Bangalore, Hyderabad, Ahmedabad, Chennai, Suryapet, Jamalpur, Bhiwadi, Ballia, Ambala, Sadar, Udgir, Miryalaguda, Bansberia, Mumbai, India, Maharashtra, Delhi, Karnataka, Andhra Pradesh, Kerala, Tripura, Benin, Puducherry, Mizoram, Manipur, Tadepalligudem, Betul, Nagapattinam, Bundi, Baraut, Buxar, Muktsar, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri and Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Gujarat, Tamil Nadu, West Bengal, Gujarat, Bihar, Rajasthan, Uttar Pradesh, Punjab, Haryana, Madhya Pradesh, Jharkhand, Chhattisgarh, Assam, Chandigarh, Orissa, Kalyan, Dombivali, Vasai, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Bhadreswar, Kasganj, Kalyani, Nagaur, Port, Blair, Datia, Hinganghat, Banswara, Nagda, Raipur, Kota, Guwahati, Solapur, Hubli and Dharwad, Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Ulhasnagar, Jhansi, Kolapur, Ajmer, Akola, Durgapur, Nanded, Gorakhpur, Belgaum, Mangalore, Ambattur, Tirunelveli, Saharanpur, Guntur, Bikaner, Amravati, Kurnool, Bhavnagar, Dehradun, Asansol, Waghala, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri.
REQUEST A QUOTE
