Forged Fittings
Hitesh Metal is one of the renowned manufacturer and suppliers of Steel Forged Pipe Fittings , which has outstanding resistance to hydrochloric acid at all concentrations and temperatures. We also offer the same in different forms such as Stainless Steel Forged Fittings, Carbon Steel Forged Fittings, Alloy Steel Forged Fittings, Duplex Steel Forged Socket weld Fittings and Nickel Alloy Forged Threaded Fittings.
These Forged Threaded Fittings offered by Hitesh Metal is a solid solution strengthened, nickel - molybdenum alloy, with significant resistance to reducing environments like hydrogen chloride gas, and sulphuric, acetic and phosphoric acids. Molybdenum is the primary alloying element which provides significant corrosion resistance to reducing environments.
These Steel Forged Socket Weld Fittings provides resistance to pure sulphuric acid and a number of non - oxidizing acids. The alloy should not be used in oxidizing media or where oxidizing contaminants are available in reducing media. These Threaded Forged Fittings offered by Hitesh Metal are the building block of a strong caricature and the composition of leverages with the requisite strength and also with the quality standard that helps it in taking a lot of pressure for a lot of coming years.
They can be used in the as - welded condition because it resists the formation of grain - boundary carbide precipitates in the weld heat - affected zone. Hitesh Metal also offer these Socket Weld Forged Fittings in different sizes, shapes and designs as per customers’ specifications at affordable rates.

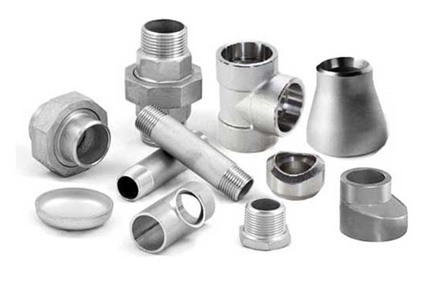

Stainless Steel Forged Fittings
Hitesh Metal provide best quality Stainless Steel Forged Fittings are traded by us. Manufactured using the best quality stainless steel which is procured from reputed vendors of the market, these fittings are easy to install, rust-resistant and durable.
Our range of Stainless Steel Forged Fittings includes - 45° and 90° elbows, equal and reducing tees, couplings, hexagon and reducing nipples, crosses, street elbows, caps, plugs, hexagon bushes, unions, concentric and eccentric swage nipples, pipe nipples and forged outlet fittings.
Designation | ASTM A182, ASME SA182 |
Range | 1/8" NB TO 4" NB. |
Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Form | Socketweld Fittings, Threaded Fittings |
Grade | ASTM / ASME A/SA 182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L. |
Types | 45° and 90° elbows, tees, couplings, bushing, pipe nipples, hexagon and reducing nipples, crosses, street elbows, hexagon bushes, caps, equal and reducing tees, unions, concentric and eccentric swage nipples, plugs. |

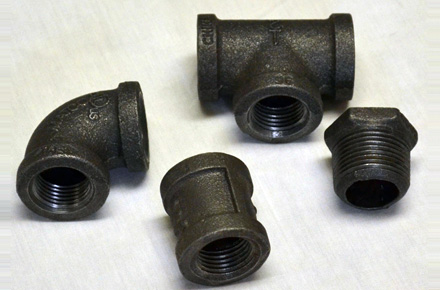

Carbon Steel Forged Fittings
Owing to our massive and sophisticated infrastructural unit, we are highly dedicated in offering qualitative IBR Carbon Steel Forged Fitting. Our product range is procured in compliance with variegated demands and needs of our client base.
These products are also checked stringently by quality analysts to ensure that defect free and best quality products to our honored clients. The exclusive range carbon steel forged fittings is available in different dimensions and alloys.
Standard | ASTM / ASME A105/ A105N/ A694 F42/46/52/56/60/65/70 / A350 LF3/ A350 LF2 |
Sizes | 1/2" TO 4" |
Pressure Rating | 2000#, 3000#, 6000#, 9000# |
Grade | F42 / F46 / F52 / F56 / F60 / F65 / F70 |
Range | 150#, 300#, 400#, 600#, 900#, 1500# & 2500#. |
Type | Socketweld Fittings, Threaded Fittings |
Form | Tee, Union, Full Coupling, Half Coupling,Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush |

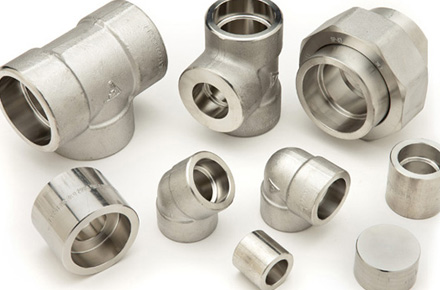

Alloy Steel Forged Fittings
We are among the leading organizations engaged in manufacturing and supplying an excellent quality assortment of Alloy Steel Forged Fittings. We bring forth an exclusive range of this Alloy Steel Forged Socket Weld Fittings and Threaded Fittings which is well known for its parameters like durability and high performance. We manufacture using top quality materials. Our ranges of fitting are extensively used for fastening purposes.
These apparels are widely appreciated by the customers for their exquisite designs, elegant patterns and vivid colors which we provide after quality checking to our esteemed customers. We check this alloy forged fitting on numerous parameters in order to deliver a defect free range to customers.
Standard | ASTM / ASME A/SA 182, ASTM A276, ASME SA276 |
Range | ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Grade | ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91. |
Class | 150#, 300#, 400#, 600#, 900#, 1500# & 2500#. |
Type | Socketweld Fittings, Threaded Fittings |
Form | Tee, Union, Full Coupling, Half Coupling,Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush |

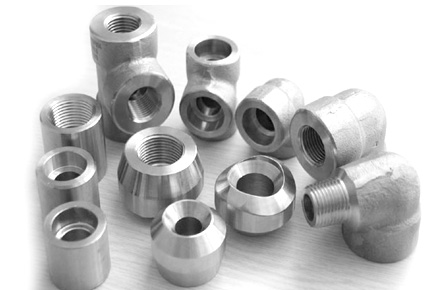

Duplex Steel Forged Fittings
We are an unparalleled name in offering a premium quality Duplex Steel Forged Fittings. The offered forged fitting is manufactured from the superior quality of material & modern techniques in adherence with the set norms of industry.
We check this duplex forged fitting on numerous parameters in order to deliver a defect free range to customers. At our premises, this fitting is manufactured from rich quality raw material and modern technology as per the industry set parameters. Tested against assorted constraints, we provide this fitting in a range of specifications.
Size | 1/2"NB TO 4"NB IN |
Standard | ASTM A182 / ASME SA182 |
Dimensions | ANSI/ASME B16.11 & BS3799, etc. |
Grade | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
Class | 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc. |
Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings |

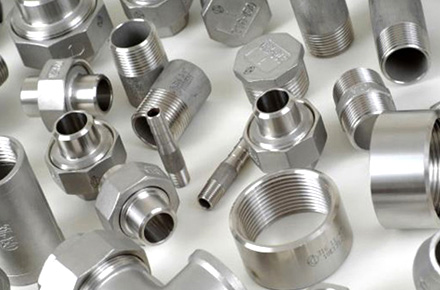

Nickel Alloy Forged Fittings
We offer a diversified range of the Nickel Alloy Forged Fittings which is manufactured using the finest quality metals and alloys to ensure the flaw less performance and zero defect in fabrication. Nickel Alloy Socket weld Fittings and Threaded Fitting are assured to be manufactured from heavy materials and hence suitable for both extreme high and low temperature/ pressure applications.
High Nickel Alloy Forged Fittings that are used across many industries like automobile industries, cement industries, sugar industries and others. Before we deliver the Fittings they are subjected to various testing parameters to ensure that the Fittings are defect free and the required functionalities are met. To make them versatile and the fittings are designed as per various standards, grades and types.
Size | 1/2"NB TO 4"NB IN |
Standards | ASTM / ASME SB 564, ASTM / ASME SB 160, ASTM / ASME SB 366, ASTM / ASME SB 472 |
Class | 150LBS, 250LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Finish | Bright, Polish & Black |
Type | SOCKET WELD (S/W) & SCREWED (SCRD), Threaded – NPT, BSP, BSPT |
Form | Tee, Union, Full Coupling, Half Coupling,Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush |
Grade | Nickel Alloy 200 (UNS No. N02200) , 2.4060, 2.4066 Nickel Alloy 201 (UNS No. N02201) , 2.4060, 2.4066 |
STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
Nickel 200 | 2.4066 | N02200 | NW 2200 | N-100M | NA 11 | НП-2 | Ni 99.2 |
Nickel 201 | 2.4068 | N02201 | NW 2201 | - | NA 12 | НП-2 | LC-Ni 99 |
