Wire Mesh

  2. Wire Mesh

Wire Mesh

Hitesh Metal is renowned supplier & trader of high quality Steel Wire Mesh, which is available in various sizes and shapes. We also offer the same in different forms such as Stainless Steel Wire Mesh, Brass Alloy Wire Mesh, Copper Alloy Wire Mesh, Nickel Alloy Wire Mesh, Phosphor Bronze Wire Mesh, Black Wire Mesh, and Star Insect Screen.

This Hexagonal Wire Mesh offered by Hitesh Metal is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. It is also used in mines, gardening, machine protection and other decorations.

This Welding Wire Mesh offered by Hitesh Metal is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. The sizes are specified by combining the spacing, in inches or mm, and the wire cross section area in hundredths of square inches or mm.

Our Netting Wire Mesh is a square grid of uniformly placed wires, welded at all intersections, and meeting the requirements of ASTM or other standards. Machines are used to produce the mesh with precise dimensional control, where the product can result in considerable savings in time, labour and money.

Our range of Fencing Wire Mesh is designed and developed in conformation with set industrial standards and meet international quality norms. Hitesh Metal also offer these in different sizes, shapes and designs as per customers’ specifications at affordable rates.

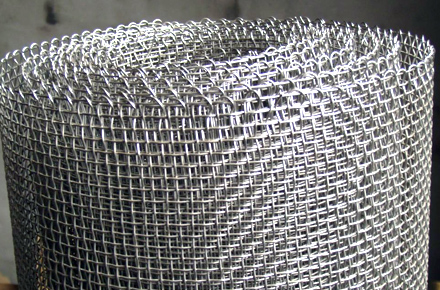

Stainless Steel Wire Mesh

Stainless Steel Wire Mesh

Being a noteworthy enterprise of this industry, we Hitesh Metal. are Manufacturing & Exporting a wide spectrum of Stainless Steel Wire Mesh.

The Stainless Steel Wire Mesh we offer made by using high grade quality Stainless Steel thus known for their Corrosion resistant nature, Excellent finishing, High quality, Ability to withstand temperature variations, Heat-resistant, Reasonable price. These wire mesh are widely appreciated in industrial Apllications such as Machine Manufacturing units, Construction Secto, Filtration Applications, Oil & Chemical Industries, Pharma Industries,Food Industries

Specification for Stainless Steel Wire Mesh

Specification for Stainless Steel Wire Mesh

Chemical Composition
Mesh SWG DIAMETERS OF WIRE SIZE OF OPENING Approx Percentage Open Area
Inch MM Inch MM Micron
4 12 0.104 2.640 0.146 3,710 3,710 34.14
4 13 0.092 2.340 0.158 4,010 4,010 39.98
4 14 0.080 2.030 0.170 4,320 4.320 46,28
4 15 0.072 1.830 0.178 4,520 4,520 50.67
4 16 0.064 1.630 0.186 4,720 4,720 55.25
4 17 0.056 1.430 0.194 4,920 4,920 60.03
4 18 0.048 1.220 0.202 5,130 5,130 65.27
5 14 0.080 2.030 0.120 3,050 3,050 36.05
5 15 0.072 1.830 0.128 3,250 3,250 40.93
5 16 0.064 1.630 0.136 3,450 3,450 46.12
5 17 0.056 1.430 0.144 3,650 3650 51.62
5 18 0.048 1.220 0.152 3,860 3,860 57.74
5 19 0.040 1.020 0.160 4,060 4,060 63.87
5 20 0.036 0.910 0.164 4,170 4,170 67.38
6 16 0.064 1.630 0.102 2,603 2,603 37.82
6 17 0.056 1.430 0.110 2,803 2,803 43.85
6 19 0.040 1.020 0.127 3,213 3,213 57.62
6 20 0.036 0.910 0.131 3,323 3,323 61.63
6 21 0.032 0.810 0.135 3,423 3,423 65.39
8 16 0.064 1.630 0.061 1,545 1545 23.68
8 17 0.056 1.430 0.061 1,745 1,745 30.21
8 18 0.048 1.220 0.077 1,955 1,955 37.91
8 19 0.040 1.020 0.085 2,155 2,155 46.07
8 20 0.036 0.910 0.089 2,265 2,265 50.89
8 21 0.032 0.810 0.093 2,365 2,365 55.48
8 22 0.028 0.710 0.097 2,465 2,465 60.28
8 23 0.024 0.610 0.0101 2,565 2,565 65.27
8 24 0.022 0.550 0.103 2,625 2,625 68.36
8 25 0.020 0.500 0.105 2,675 2,675 70.98
10 20 0.036 0.910 0.064 1,630 1,630 41.18
10 21 0.032 0.810 0.068 1,730 1,730 46.39
10 22 0.028 0.710 0.072 1,830 1,830 51.91
10 23 0.024 0.610 0.076 1,930 1,930 57.74
10 24 0.022 0.550 0.078 1,990 1,990 61.38
10 25 0.020 0.500 0.080 2,040 2,040 64.50
12 22 0.028 0.710 0.055 1,407 1,407 44.16
12 23 0.024 0.610 0.059 1,507 1,507 50.67
12 24 0.022 0.550 0.062 1,567 1,567 54.78
12 25 0.020 0.500 0.064 1,617 1,617 58.34
12 26 0.018 0.450 0.066 1,667 1,667 62.00
14 24 0.022 0.550 0.050 1,264 1,264 48.56
14 25 0.020 0.500 0.052 1,314 1,314 52.48
14 26 0.018 0.450 0.054 1,364 1,364 56.55
14 27 0.016 0.400 0.056 1,414 1,414 60.77
14 28 0.015 0.370 0.057 1,444 1,444 63.37
16 24 0.022 0.550 0.041 1,038 1,038 42.71
16 25 0.020 0.500 0.043 1,088 1,088 46.93
16 26 0.018 0.450 0.045 1,138 1,138 51.34
16 27 0.016 0.400 0.047 1,188 1,188 55.96
16 29 0.013 0.340 0.049 1,248 1,248 61.75
16 30 0.012 0.310 0.050 1,278 1,278 64.76
18 25 0.020 0.500 0.036 0.911 911 41.69
18 26 0.018 0.450 0.038 0.961 961 46.39
18 27 0.016 0.400 0.040 1.011 1,011 51.34
18 28 0.015 0.370 0.041 1.041 1,041 54.43
20 24 0.022 0.550 0.028 0.720 720 32.14
20 25 0.020 0.500 0.030 0.770 770 36.76
20 26 0.018 0.450 0.032 0.820 820 41.69
20 27 0.016 0.400 0.034 0.870 870 46.93
20 28 0.015 0.370 0.035 0.900 900 50.22
20 29 0.013 0.340 0.037 0.930 930 53.62
20 30 0.012 0.310 0.038 0.960 960 57.14
24 27 0.016 0.400 0.026 0.658 658 38.69
24 28 0.015 0.370 0.027 0.688 688 42.30
24 29 0.013 0.340 0.028 0.718 718 46.07
24 30 0.012 0.310 0.029 0.748 748 50.00
24 32 0.011 0.270 0.031 0.788 788 55.48
30 28 0.015 0.370 0.019 0.477 477 31.70
30 29 0.013 0.340 0.020 0.507 507 35.81
30 30 0.012 0.310 0.021 0.537 537 40.18
30 31 0.011 0.290 0.022 0.557 557 43.23
30 32 0.011 0.270 0.023 0.557 577 46.39
40 32 0.011 0.270 0.014 0.365 365 33.04
40 33 0.010 0.250 0.015 0.385 385 36.76
40 34 0.009 0.234 0.016 0.401 401 39.88
40 35 0.008 0.210 0.017 0.425 425 44.80
40 36 0.008 0.193 0.017 0.442 442 48.45
50 34 0.009 0.234 0.011 0.274 274 29.09
50 35 0.008 0.210 0.012 0.298 298 34.41
50 36 0.008 0.193 0.012 0.315 315 38.45
50 37 0.007 0.172 0.013 0.336 336 43.75
50 38 0.006 0.152 0.014 0.356 356 49.11
60 36 0.008 0.193 0.009 0.230 230 29.60
60 37 0.007 0.172 0.010 0.251 251 32.25
60 38 0.006 0.152 0.011 0.271 271 41.08
80 38 0.006 0.152 0.007 0.166 166 21.17
80 39 0.005 0.130 0.007 0.188 188 34.88
80 40 0.005 0.122 0.008 0.196 196 37.91
80 41 0.004 0.112 0.008 0.206 206 41.89
80 42 0.004 0.102 0.008 0.216 216 46.07
100 42 0.004 0.102 0.006 0.152 152 35.81
100 43 0.004 0.091 0.006 0.163 163 41.18
100 44 0.003 0.081 0.007 0.173 173 46.39
120 44 0.003 0.081 0.005 0.131 131 38.11
150 45 0.003 0.071 0.004 0.098 98 33.72
150 45.5 0.002 0.063 0.004 0.106 106 39.43
200 47 0.002 0.050 0.003 0.077 77 36.76
250 48 0.002 0.040 0.002 0.062 62 36.76
300 48 0.002 0.040 0.002 0.045 45 27.83
325 48.5 0.001 0.035 0.002 0.043 43 30.49
400 49.5 0.001 0.028 0.001 0.036 36 31.25
500 50 0.001 0.025 0.001 0.026 26 25.79

Weave type

WEAVE TYPE MESH COUNT WARP WIRE IN INCHES SHUTE WIRE IN INCHES ABSOLUTE MICRON RATING NOMINAL MICRON RATING
PDW 8X20 0.014 0.0126 330-350  280
PDW 12X64 0.024 0.0165 270-290  200
PDW 14X88 0.02 0.013 220-240  150
PDW 16X80 0.0169 0.0134 225-235  140
PDW 24X110 0.015 0.01 115-125  80
PDW - TWIN WARP 24X128 2 X .010 0.004 110-120  75
PDW 30X150 0.009 0.007 110-112  63
PDW - TWIN WARP 30X150 2 X .009 .007" 95-113  60
PDW 40X200 0.007 0.0055 70-75  55
PDW 50X250 0.0055 0.0045 58-63  40
PDW 80X400 0.005 0.003 40-45  35
TDW 30X250 0.01 0.008 110-120  53
TDW 80X700 0.004 0.003 35-40  25
TDW 120X400 0.004 0.0025 50-55  40
TDW 165X800 0.0028 0.002 25-28  15
TDW 200X600 0.0024 0.0018 30  20
TDW 165X1400 0.0028 0.0016 16-20  10
TDW 200X1400 0.0028 0.0016 12-14   5
TDW 325X2300 0.0014 0.001 8-9   2
TDW 400X2800 0.001 0.0008 6-7 1

Grades for Stainless Steel Material Used

Grade C
Max		 Mn
Max		 P
Max		 S
Max		 Si
Max		 Cr
Min/Max		 Ni
Max		 MO
Max
304 0.08 2.00 0.05 0.03 1.00 18-20 18-10 -
304L 0.03 2.00 0.05 0.03 1.00 16-18 18-12 -
316 0.08 2.00 0.05 0.03 1.00 16-18 10-14 2-2.25
316L 0.03 2.00 0.05 0.03 1.00 16-18 10-14 2-2.25

Call +91-9619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

SEND US YOUR REQUIREMENT

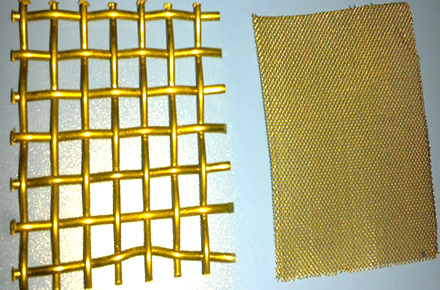

Brass Alloy Wire Mesh

Brass Alloy Wire Mesh

With our expertise in this domain, we Hitesh Metal. are able to manufacture & Export a superior quality range of Brass Wire Mesh. All our products are available in various sizes, designs, and shapes at market leading prices to meet the demands of customers.

Our range of Brass Wire Mesh has gained appreciation from the clients due to its abrasion & corrosion resistance, higher strength and lower electrical conductivity. These are widely used for sieving various pellet, porcelain clay & glass, powder, chinaware printing, filtering liquid and gas.

Specification for Brass Alloy Wire Mesh

Mesh Wire Dia.(mm) Opening(mm)
  SWG MM Inch
6 22 0.711 0.028 3.522
8 23 0.610 0.024 2.565
10 25 0.508 0.020 2.032
12 26 0.457 0.018 1.660
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.840
24 0 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.010 0.540
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.404
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60x50 36 0.193 0.0076
60x50 37 0.173 0.0068
60 37 0.173 0.0068 0.250
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.170
100 42 0.102 0.004 0.152
120x108 43 0.091 0.0036
120 44 0.081 0.0032 0.131
140 46 0.061 0.0024 0.120
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076

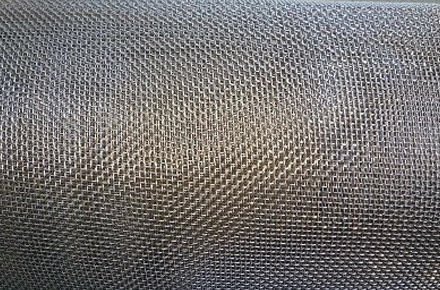

Copper Alloy Wire Mesh

Copper Alloy Wire Mesh

We Hitesh Metal. is a distinguished manufacturer, exporter and supplier of a wide assortment of Copper Alloy Wire Mesh. The offered mesh is broadly used for commercial and non-commercial applications.

Our range is widely acclaimed by our clients for its characteristic features such as durability, corrosion resistance and high tensile strength, Electromagnetic and thermal conduction properties, Resistant to atmospheric corrosion, Anti sparkling, Darkens after a period of time.

Specification for Copper Alloy Wire Mesh

Opening/linear inch Wire Diameter Width of Opening Open Area
Inches mm Inches mm
2 Mesh 0.063 1.60 0.437 11.10 76.4%
4 Mesh 0.047 1.19 0.203 5.16 65.9%
4 Mesh 0.063 1.60 0.187 4.75 55.9%
8 Mesh 0.028 0.71 0.097 2.46 60.2%
10 Mesh 0.025 0.64 0.075 1.91 56.3%
12 Mesh 0.023 0.584 0.060 1.52 52.4%
14 Mesh 0.020 0.508 0.051 1.30 51.8%
16 Mesh 0.011 0.279 0.0515 1.30 67.9%
16 Mesh 0.018 0.457 0.0445 1.13 50.7%
18 Mesh 0.017 0.432 0.0386 0.98 48.2%
20 Mesh 0.016 0.406 0.0340 0.86 46.2%
24 Mesh 0.014 0.356 0.0277 0.70 44.1%
30 Mesh 0.013 0.330 0.0203 0.52 37.2%
40 Mesh 0.010 0.254 0.0150 0.38 36.0%
50 Mesh 0.009 0.229 0.0110 0.28 30.3%
60 Mesh 0.0075 0.191 0.0092 0.23 30.2%
80 Mesh 0.0055 0.140 0.0070 0.18 31.4%
100 Mesh 0.0045 0.114 0.0055 0.14 30.3%
100 Mesh 0.0022 0.055 0.0078 0.198 60.8%
145 Mesh 0.0022 0.055 0.00469 0.1168 46.4%

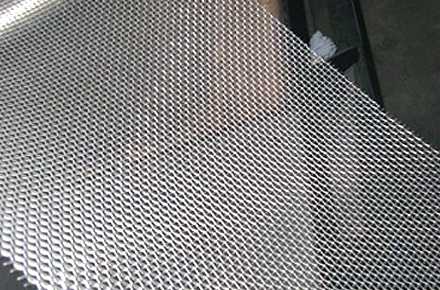

Nickel Alloy Wire Mesh

Nickel Alloy Wire Mesh

With genuine intentions to enhance our reputation in the national & international market, we Hitesh Metal. Manufacturer & export an exceptional quality wide range of Nickel Wire Mesh. The wire mesh which we offer is widely valued for their long lasting service and wide uses.

Nickel 200/201 Wire Mesh is technically pure nickel with good mechanical properties and excellent resistance to alkali hydroxides as well as organic compositions. Nickel 200/201 Wire Mesh is a multipurpose grade and is used in application where alloys are not essential. It also has good magnetic and magnetostrictive properties, high thermal and electrical conductivity as well as low gas content in the electronics industry.

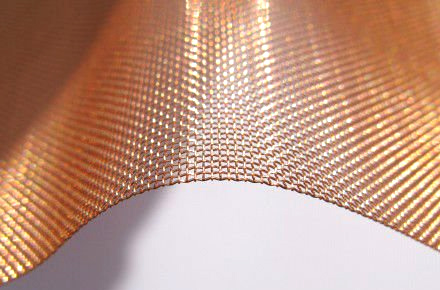

Phosphor Bronze Wire Mesh

Phosphor Bronze Wire Mesh

We Hitesh Metal. have gained expertise in manufacturing & exporting a supreme quality of Phosphor Bronze Wire Mesh. Our range has gained appreciation from the clients due to its abrasion & corrosion resistance, higher strength and lower electrical conductivity.

The wire mesh manufactured and supplied to our customer is thoroughly checked and tested. we take into consideration every minute detail while manufacturing these wire meshes, whether it is uniform mesh counting or uniform wire thickness or strength of the wire mesh.

Specification For Phosphor Bronze Alloy Wire Mesh

mesh wire diameter opening (mm)
  SWG mm inch
6 22 0.711 0.028 3.522
8 23 0.610 0.024 2.565
10 25 0.508 0.020 2.032
12 26 0.457 0.018 1.660
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.840
24 30 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.010 0.540
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60X50 36 0.0076 0.0076 -
60X50 37 0.0068 0.0068 -
60 37 0.0068 0.0068 0.250
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.170
100 42 0.012 0.004 0.152
120X108 43 0.091 0.0036 -
120 44 0.081 0.3200 0.131
140 46 0.061 0.0024 0.120
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076
250 48 0.041 0.0016 0.061
300 49 0.031 0.0012 0.054
325 49 0.031 0.0012 0.047
350 49 0.031 0.0012 0.042
400 49 0.031 0.0012 0.033
450 49 0.031 0.0012 0.029
500 50 0.025 0.0010 0.026

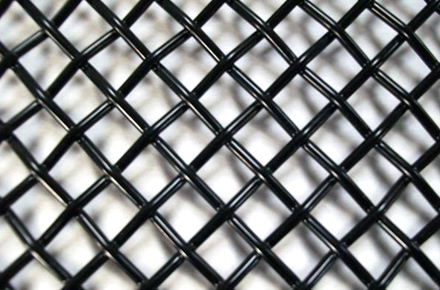

Black Wire Mesh

Black Wire Mesh

We Hitesh Metal. involved in manufacturing & exporting a wide array of Black Wire Mesh to cater the variegated requirements of the customers worldwide. These Black Wire Mesh are manufactured using premium grade raw material that is specially tested before manufacturing the final assortment

These Black Wire Mesh are made from very high quality raw material which ensures high durability at its user end. These Black Wire Mesh are in high demand in the market. Different sizes and designs are easily available in the market.

Features

  • Good strength
  • Uniform mesh
  • Fine rigidity

Specification for Black Wire Mesh

Mesh Wire Dia.( mm) Opening (mm)
8 0.71 2.47
10 0.65 1.89
12 0.60 1.52
14 0.50 1.31
16 0.40 1.19
20 0.40 0.87
24 0.35 0.71
30 0.30 0.55
40 0.25 0.39
50 0.20 0.31
60 0.17 0.25
80X70 0.135 -
100X90 0.11 -

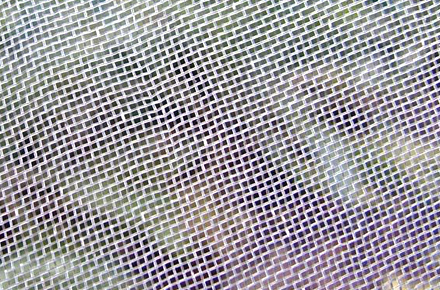

Star Insect Screen

Star Insect Screen

With firm commitment to quality, we Hitesh Metal. are engaged in Manufacturing & Exporting a quality-assured array of Star Insect Screen. With state-of-the-art infrastructure facilities we procure these product by using optimum quality material.

Our offered ranges of Insect Screen is widely used to prevent insects from entering the home, used in hotel, restaurant, communal building and residential houses to prevent the common insects or birds. These have aesthetic appearance and are offered in different options of size, range and colors.

Features

  • Light Weight
  • Good corrosion resisting and Rust resisting
  • Precisely designed
  • High grade material
  • Excellent finish

Size Specification for Star Insect Wire Mesh

Mesh size Grade Guage
13*28.5 202,304,316(S.S) 0.33
16*23 202,304,316(S.S) 0.71
16*34 202,304,316(S.S) 0.22
14*30 202,304,316(S.S) 0.29
16*30 202,304,316(S.S) 0.30
Star Insect Wire Cloth Dutch Weave
Mesh Wire Dia.(mm)
12X64 0.58/0.64
14X88 0.50/0.33
24X110 0.36/0.25
30X150 0.23/0.18
40X200 0.18/0.13
Call +91-9619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

SEND US YOUR REQUIREMENT

Top Export Destinations - Wire Mesh

Iran, Argentina, Colombia, Mexico, Africa, Houston, Brazil, Tunisia, Kazakhstan, Vietnam, London, Trinidad and Tobago, Kuwait, Canada, Iraq, Sudan, Israel, Azerbaijan, Turkey, Egypt, Australia, Dubai, Chine, United States, Italy, Saudi Arabia, UAE, Malaysia, Sri Lanka, Nigeria, South Africa, Peru, Indonesia, UK, Germany, Bahrain, New Zealand, Thailand (Bangkok), Jordan, Russia, Venezuela, Ethiopa, Ghana, Uganda, Cameroon, Algeria, Morocco, Mozambique, Angola, Qatar, Yemen, Oman, Lebanon, Cyprus, Johannesburg, Brazzaville, Cairo, Maputo, Lagos, Douala, Tripoli, Mogadishu, Khartoum, Port Harcourt, Antananarivo, Port Elizabeth, Kano, New York, Abu Dhabi, Dar es Salaam, Benin, Kampala, Luanda, Conakry, Rabat, Bulawayo, Cape Town, Alexandria, Fez, Ouagadougou, Mbuji-Mayi, Soweto, Singapore, Dakar, Omdurman, Hong Kong, Zaria, Lubumbashi, Kinshasa, Harare, Abidjan, Yaoundé, Addis Ababa, Giza, Algiers, Accra, Colombo, Kaduna, Maiduguri, Nairobi, Casablanca, Pretoria, Kolwezi, Subra al-Haymah, Durban, Freetown, Bamako, Ibadan, South America, Austalia, Austria, Bangladesh, Mozabique, Myanmar, Netherland, Phillipine, Spain, Jordon.

We Supply Wire Mesh to following Domestic Cities

Bangalore, Hyderabad, Ahmedabad, Chennai, Suryapet, Jamalpur, Bhiwadi, Ballia, Ambala, Sadar, Udgir, Miryalaguda, Bansberia, Mumbai, India, Maharashtra, Delhi, Karnataka, Andhra Pradesh, Kerala, Tripura, Benin, Puducherry, Mizoram, Manipur, Tadepalligudem, Betul, Nagapattinam, Bundi, Baraut, Buxar, Muktsar, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri and Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Gujarat, Tamil Nadu, West Bengal, Gujarat, Bihar, Rajasthan, Uttar Pradesh, Punjab, Haryana, Madhya Pradesh, Jharkhand, Chhattisgarh, Assam, Chandigarh, Orissa, Kalyan, Dombivali, Vasai, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Bhadreswar, Kasganj, Kalyani, Nagaur, Port, Blair, Datia, Hinganghat, Banswara, Nagda, Raipur, Kota, Guwahati, Solapur, Hubli and Dharwad, Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Ulhasnagar, Jhansi, Kolapur, Ajmer, Akola, Durgapur, Nanded, Gorakhpur, Belgaum, Mangalore, Ambattur, Tirunelveli, Saharanpur, Guntur, Bikaner, Amravati, Kurnool, Bhavnagar, Dehradun, Asansol, Waghala, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri.
REQUEST A QUOTE
Whatsapp
Phone
