Buttweld Fittings
Hitesh Metal is a renowned manufacturer & exporter of Butt Weld Fittings , which are made up of pure stainless steel. We also offer the same in different forms such as Stainless Steel Butt weld Pipe Fittings, Carbon Steel Butt weld Pipe Fittings, Alloy Steel Butt weld Pipe Fittings, Duplex Steel Butt weld Pipe Fittings, and Nickel Alloy Butt weld Pipe Fittings.
The intense use of these Cross Pipe Fittings from Hitesh Metal is to join four different pipes together for the flow of fluid in different directions at the same time. These are used in several industries for providing a torque free and leak free sealing in any type of piping or tubing connection. Elbow Pipe Fittings are extremely efficient and are considered for their high tolerances and excellent finishes.
They provide optimum flow characteristics, without pockets or sharp corners, creating less frictional resistance, no pressure loss, less turbulence. A Tee Pipe Fittings from Hitesh Metal is designed to be welded on site at its end(s) to connect pipe(s) together and allow change in direction or pipe diameter, or branching or ending.
It is available in several shapes depending on the size of pipes which these fittings are required. The inner and outer finishing of these Stub End Pipe Fittings is superb and plays a vital role in keeping these fittings efficient and durable enough to last for years. Hitesh Metal also offer these products in different sizes, shapes and designs as per customers’ specifications at affordable rates.

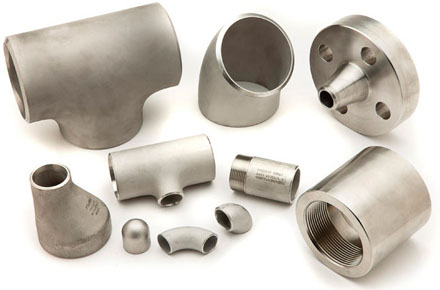

Stainless Steel Buttweld Fittings
Hitesh Metal is one of the best Stainless Steel Buttweld Fittings manufacturers in the state with high degree of reliability and guaranteed goods manufactured by using superb quality raw materials in affordable prices.
In order to meet maximum clients' satisfaction, offered range is quality checked on various parameters set by the industry. These fittings are available from us in varied dimensions and sizes that suit the requirements of different industries. Steel Butt weld Pipe fittings are offered in various shapes such as tees, elbows, reducers, stub-ends, caps, collars, inserts etc.
| Designation | ASTM A403, ASME SA403 |
| Size | 1/2" NB TO 48" NB. |
| Schedules | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Wall Thickness | Sch. 5S To Sch. XXS |
| Grade | ASTM A403 WP 304/ 304L/ 304H/316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L |

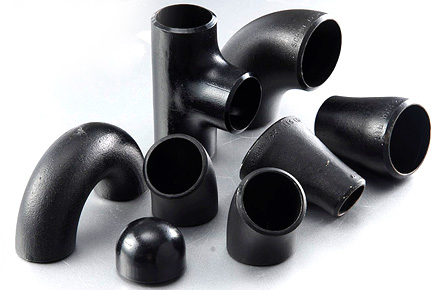

Carbon Steel Buttweld Fittings
With detailed knowledge of varied industry aspects, we have been able to offer a range of Carbon Steel Butt Weld Fittings. All our products are developed by a team of skilled experts, keeping the international norms and guidelines in mind.
Due to attributes like resistance against corrosion, durability and excellent finishing, our offered fittings are widely appreciated in the market. The Carbon Steel Buttweld Pipe Fittings offered by us are strictly tested by our experts on various parameters, in order to meet the quality standards.
| Standard | ASTM A234 Gr WPB ST37.2, ST35.8, A105 / MSS-SP-75, ANSI B16.9 |
| Sizes | 1/4” NB TO 32” NB |
| Range | ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Designation | ASTM / ASME A/SA 234 / 420 |
| Schedules | Sch.40 to Sch.XXs |
| Grade | WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Type | Seamless / Welded / Fabricated |

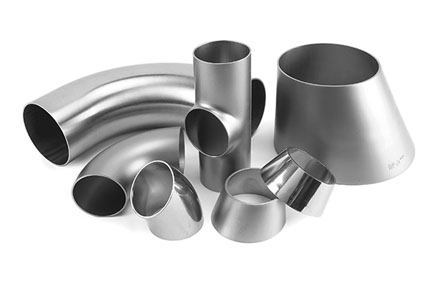

Alloy Steel Buttweld Fittings
We are a renowned and widely appreciated organization engaged in offering a comprehensive range of Alloy Steel Buttweld Fittings made from the top quality raw materials supplied by the best vendors in the business. Keeping in mind various requirements of the clients, we offer them in various designs , shapes and sizes as per the client's demand.
Our range of Alloy Steel Pipe Fittings are ideal for application in diverse industry for high pressure and temperature applications. These Buttweld Fittings are designed with precision for easy installation.
| Standard | ASTM / ASME A/SA 234 |
| Size | 1/8” NB TO 48” NB. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
| Grade | ASTM A 234 WP - P5, P9, P11, P12, P21, P22 & P91 |
| Thickness | SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Type | Seamless / Welded / Fabricated |

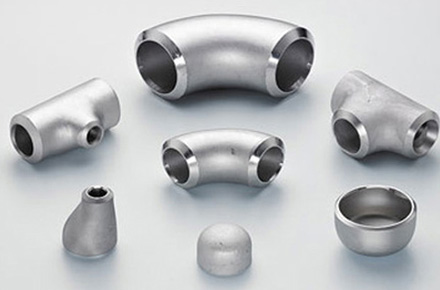

Duplex Steel Buttweld Fittings
Hitesh Metal is the Supplier & Exporter of a wide range of products which include Duplex Steel Buttweld Fittings such as Duplex Steel Elbow, Duplex Steel LR Bend, Duplex Steel Stub End, Duplex Steel tee and Duplex Steel Nipple. These are engineered under the firm direction of experience quality controllers and following international standard. These are acclaimed for consistent performance and corrosion resistance.
Duplex Steel Pipe Fittings are engineered from first grade stainless steel and using latest techniques. These are available in different types including seamless / welded/ fabricated and UNS NO.S 31803, S 32205 grades.
| Size | 1/2" to 36" |
| Standard | ASTM / ASME A815 / SA815. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | UNS No. S31803, S32205, S32550, S32750, S32760. |
| Type | Seamless & Welded |
| Schedule | Sch 5 TO Sch XXS. |
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S31803 / S32205 |

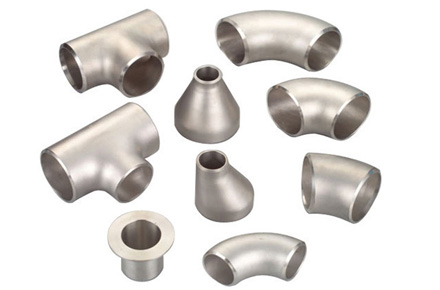

Nickel Alloy Buttweld Fittings
We are manufacturing a wide range of Nickel Alloys 200 / 201 Butt weld Pipe Fittings such as ASTM B366 Nickel 200 / 201 End Cap, Elbows, Tees that are using high quality raw materials in Mumbai, Indiawhich are available to our clients in various grades. Nickel Alloy Butt Weld Fittings are available in standard as well as customized sizes as per the requirements of our clients.
These nickel alloy grades buttweld pipe fittings are available in range of ½” NB TO 12” NB. These are widely used in various application industries like oil & gas, pharma, nuclear power, sugar, chemical and cement etc. We offer Nickel Alloy Pipe Fittings in various shapes such as elbow, tee, reducer, return bends, stub-ends, cap, collar, cross, insert and more as per the clients requirments.
| Size | Nickel Alloy 200 (UNS No. N02200) Seamless Butt Weld Fittings : 1/2" - 10" |
| Nickel Alloy 201 (UNS No. N02201) Welded Butt Weld Fittings: 1/2" - 48" | |
| Standards | ASTM B 366 / ASME SB 366 |
| Type | Seamless / ERW / Welded / Fabricated |
| Schedule | Sch 5 TO Sch XXS. |
| Wall Thickness | from 2 to 40 mm.. |
| Grade | Nickel Alloy 200 (UNS No. N02200) B 366, 2.4060, 2.4066 |
| Nickel Alloy 201 (UNS No. N02201) B 366, 2.4060, 2.4066 |
