Stainless Steel 180 Degree Long Radius Elbow, Carbon Steel 180 Degree Long Radius Elbow Fittings, Nickel Alloy 180 Degree Long Radius Elbows, Alloy Steel 180 Degree Long Radius Elbow Buttweld Fittings Manufacturer & Exporter

ASME/ANSI B16.9, MSS-SP-43 180 Degree Long Radius Elbow, ANSI B16.28 180 Degree LR Elbow Pipe Fittings Dealer & Exporter in India

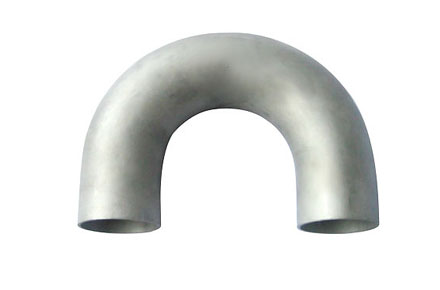

We, Hitesh Metal are the chief manufacturer and exporter of 180 Degree Long Radius Elbow. 180 Degrees Long Radius Elbow consists of a complete semi-circle direction changing pipe. The 180 Degree LR Elbow is used in areas having a scattered area of application. We manufacture supreme quality 180 Long Radius Degree Reducing Elbow and ANSI B16.9 180 Deg Long Radius Elbow. We supply the most economically priced and customized products to our customers worldwide. Buttweld 180 Degree Long Radius Elbow is one of our best-sellers in the market.

The materials used in the processing of 180 Long Radius Elbow are unadulterated and unblended alloys made utilizing premiere quality chromium, molybdenum, carbon and stainless steel. The products belonging to 180° Long Radius Elbow Buttweld Fitting catalogue are prefabricated under the guidance of our diligent workforce. The Stainless Steel 180 Degree Long Radius Elbow and Carbon Steel 180 Deg Long Radius Elbow is our mostly in demand product throughout the year due to their qualities like high resistance to corrosion, exceptional hardness and malleability.

We manufacture Alloy Steel 180 Degree Long Radius Elbow in various sizes, specifications and grades according to the requirements of our customers. The ASME B16.9 180 Deg Long Radius Elbow assembled by us stands true to all the standards laid by the international union and surpasses the Raw materials certificate, 100% radiography report and NABL approved the test.

We assure you with the best in class products and services at best market prices. Contact us today for your specific needs.

Monel 400 / K500 180 Deg Long Radius Elbow, Inconel 200 / 201 180 Deg Long Radius Elbow Fittings, Hastelloy C22 / C276 180 Deg Long Radius Elbows, Duplex Steel S31803 180 Deg Long Radius Elbow Pipe Fittings Dealer & Stockists

180 Degree Long Radius Elbow Buttweld Fitting Specifications:

Standards	ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule	Sch 5 TO Sch XXS.
Sizes	1/2"NB TO 48"NB IN / Diameters – from 21,3 to 711 mm, Wall Thickness – from 2 to 40 mm
Materials	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 45/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type	Butt Weld (BW) / Welded / ERW / Fabricated
Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

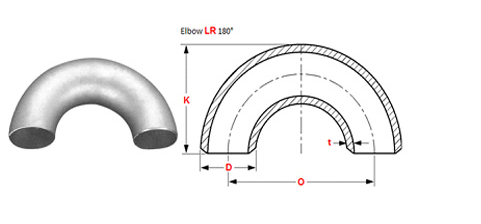

180 Degree Long Radius Elbow Buttweld Fitting Dimensions

NPS	O.D. D	180 Degree Long Radius
		Center to Center O	Back to Face K
1/2	21.3	76	48
3/4	26.7	76	51
1	33.4	76	56
1¼	42.2	95	70
1½	48.3	114	83
2	60.3	152	106
2½	73	190	132
3	88.9	229	159
3½	101.6	267	184
4	114.3	305	210
5	141.3	381	262
6	168.3	457	313
8	219.1	610	414
10	273	762	518
12	323.8	914	619
14	355.6	1067	711
16	406.4	1219	813
18	457	1372	914
20	508	1524	1016
22	559	1676	1118
24	610	1829	1219

The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld 180 Degree Long Radius Elbow Material & Grades

Stainless Steel Buttweld 180 Degree Long Radius Elbow

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld 180 Degree Long Radius Elbow

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld 180 Degree Long Radius Elbow

ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld 180 Degree Long Radius Elbow

ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld 180 Degree Long Radius Elbow

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld 180 Degree Long Radius Elbow

ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Use the contact button below for 180 Degree Long Radius Elbow Buttweld Fitting Price List and Ready stock information.

180 Degree Long Radius Elbow Buttweld Fitting Applications

Off-Shore Oil Drilling Companies	Power Generation	Petrochemicals	Gas Processing
Specialty Chemicals	Pharmaceuticals	Pharmaceutical Equipment	Chemical Equipment
Sea Water Equipment	Heat Exchangers	Condensers	Pulp & Paper Industry
