37 Degree Flare Fittings
Hitesh Metal is one of the trader & supplier of 37 Degree Flare Fittings, which is manufactured in the EBM process and feature good machinability that can be machined as stock parts. It is kept at an elevated temperature throughout the entire build, and the material thus comes out of the EBM process in a naturally aged condition.
These 37 Deg Flare Fittings offered by Hitesh Metal are stronger and equally corrosion - resistant against most applications. The grades are nominally all alpha in structure, whereas many of the titanium alloys have a two phase alpha + beta structure.
We put forward a broad range of 37 degree flare pipe fittings that is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material at our end. Our range finds applications in various industries and is offered at market leading rates to our clients.
37 degree flare tube fittings offered by Hitesh Metal are a difficult metal to shape and machine using traditional techniques due to rapid work hardening. While alloys cannot be heat treated to increase strength, the addition of 2.5 % copper would result in a material which responds to solution treatment and ageing in a similar way to aluminium - copper.
We offer a wide range that is made of qualitative raw material procured from reliable experts. Hitesh Metal also offer these flare fittings in different sizes, shapes and designs as per customers’ specifications at affordable rates.
37 Degree Flare Fitting, Jic Fittings Manufacturer, 37 Deg Flared Tube Fittings, Brass Flare Fittings, Flare Elbow Fittings, Flare Union Suppliers, 37 Degree Flare Hydraulic Fittings in India.
 |
 |
 |
Features:
The 37 degree flared tube fittings manufactured by us provide leakproof, full flow connections in hydraulic systems operating at working pressures as specified in the tables below.
| Thread Size | Working Pressures | ||||
| Nom Inch Tube O.D. | SAE J514 Flared Tube End and SAE J1926/3/ ISO 11926-3 O-Ring Port Thread Size (Notes 1 & 2) | 37 Deg. Flared Tube Ends, Unions and Bulkheads. | 37 Deg. Female Swivels. | ||
| MPa | psi | MPa | psi | ||
| 1/8 | 5/16-24 UNF | 34.5 | 5,000 | 34.5 | 5,000 |
| 3/16 | 3/8-24 UNF | 34.5 | 5,000 | 34.5 | 5,000 |
| 1/4 | 7/16-20 UNF | 34.5 | 5,000 | 31 | 4,500 |
| 5/16 | 1/2-20 UNF | 34.5 | 5,000 | 27.5 | 4,000 |
| 3/8 | 9/16-18 UNF | 34.5 | 5,000 | 27.5 | 4,000 |
| 1/2 | 3/4-16 UNF | 31 | 4,500 | 27.5 | 4,000 |
| 5/8 | 7/8-14 UNF | 24 | 3,500 | 21 | 3,000 |
| 3/4 | 1-1/16-12 UN | 24 | 3,500 | 21 | 3,000 |
| 7/8 | 1-3/16-12 UN | 21 | 3,000 | 17 | 2,500 |
| 1 | 1-5/16-12 UN | 21 | 3,000 | 17 | 2,500 |
| 1 1/4 | 1-5/8-12 UN | 17 | 2,500 | 14 | 2,000 |
| 1 1/2 | 1-7/8-12 UN | 14 | 2,000 | 10.5 | 1,500 |
| 2 | 2-1/2-12 UN | 10.5 | 1,500 | 8 | 1,125 |
Instrumentation 37 Degree Flare Fittings
| CONNECTORS | |
|---|---|

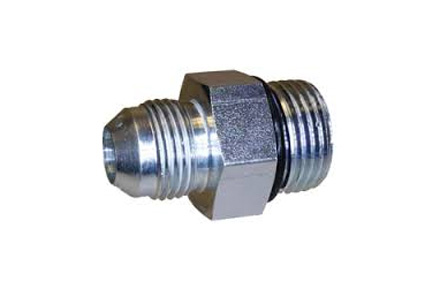

| Male Connector | Female Connector |
| UNION FITTINGS | ||
|---|---|---|
| Bulk head Union | ||
| Union Elbow | ||
| ELBOW FITTINGS | ||
| Union Elbow | Male Elbow | |
| Female Elbow | 45 Deg Male Elbow | |
| Bulkhead 45 Degree Elbow | ||
| TEE FITTINGS | ||

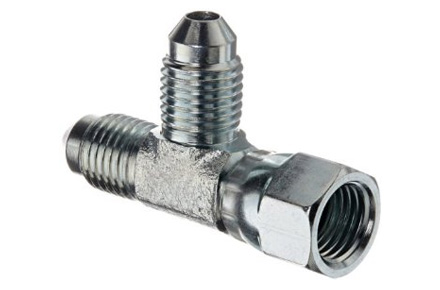

| Female Run Tee | Male Branch Tee | |
| Union Tee | ||
| CROSS FITTINGS |
| END CLOSURE FITTINGS | ||
| Fitting End Closure | Pipe End Closure | |
| NUTS AND SLEEVE FITTINGS |
