Flareless Tube Fittings

Hitesh Metal take immense pleasure in introducing itself as one of the leading manufacturer, stockiest & exporter of high quality Flareless Tube Fittings, which is an austenitic chromium nickel stainless steel. It is non - magnetic in the annealed condition but it becomes magnetic when cold worked.

Flareless Pipe Fittings is used for aircraft structural parts, architectural & automotive trim, automobile wheel covers, conveyor belts & appliances. This alloy is used to form washer & springs, and its combination between ductility & toughness is excellent even at low temperature. Flareless Compression Tube Fittings has slightly higher carbon version than SS 304, which is further widely used in the stamping, spinning & wire forming industry.

Its weldability is also good, where having other diameters may be furnished, provided such tubes comply with all other requirements of this specification. Flareless Compression Pipe Fittings provides excellent toughness and is frequently used for aircraft fittings, electrical switchgear components etc. It offers excellent machinability, good strength & corrosion resistance, and is mainly used in parts requiring cold forming after machining. It has characteristics like deep drawing quality, excellent toughness, low temperature properties responding well to hardening by cold working & forming & welding properties.

Over the past forty years it has been widely used for its strength at high temperatures and its ability to resist oxidation, carburization, and other types of high - temperature corrosion.

Hitesh Metal also offer these fittings in different sizes, shapes and designs as per customers’ specifications at affordable rates.

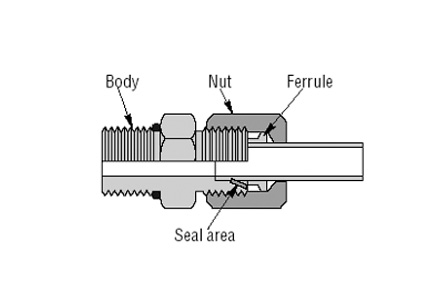

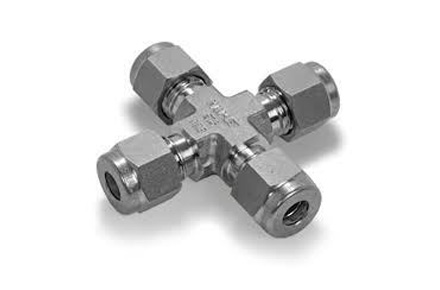

Flareless Pipe Fittings Flareless Tube Fittings Flareless Compression Pipe Fittings
Size 1/4 inch-1 inch, 1 inch-2 inch, 2 inch-3 inch, 3 inch-10 inch, 10 inch-20 inch
Application Structure Pipe, Gas Pipe, Hydraulic Pipe, Chemical Fertilizer Pipe
Material SS, MS, Brass
Stainless Steel 304/304L Flareless Nuts & Ferrule Fittings, Stainless Steel 316/316L Flareless Nuts & Ferrule Fittings, Stainless Steel 904L Flareless Nuts & Ferrule Fittings, Inconel 600 Flareless Nuts & Ferrule Fittings, Inconel 625 Flareless Nuts & Ferrule Fittings, Incoloy 800/800H Flareless Nuts & Ferrule Fittings, Monel 400 Flareless Nuts & Ferrule Fittings, Monel K500 Flareless Nuts & Ferrule Fittings, Nickel 200 Flareless Nuts & Ferrule Fittings, Nickel 201 Flareless Nuts & Ferrule Fittings, Hastelloy C22 Flareless Nuts & Ferrule Fittings, Hastelloy C276 Flareless Nuts & Ferrule Fittings, Duplex Steel 2205 Flareless Nuts & Ferrule Fittings, Brass Alloy Flareless Nuts & Ferrule Fittings
Call +919619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

SEND US YOUR REQUIREMENT

Specification for Flareless Nuts & Ferrule Fittings

Nut and Ferrule fittings
SERIES TUBE OD. THREAD M S2 h1 d I PART NO.
NUT FERRULE
METRIC
SIZE TUBE		 L 250 Kg/cm2 6 M12 X 1.5 14 15 6 9.5 N6L F6L
8 M14 X 1.5 17 15 8 9.5 N8L F8L
10 M16 X 1.5 19 16 10 10 N10L F10L
12 M18 X 1.5 22 16 12 10 N12L F12L
15 M22 X 1.5 27 17.5 15 10 N15L F15L
160 Kg/cm2 18 M26 X 1.5 32 18 18 10 N18L F18L
22 M30 X 2 36 20.5 22 10.5 N22L F22L
100Kg/cm2 28 M36 X 2 41 21 28 10.5 N28L F28L
35 M45 X 2 50 24 35 13 N35L F35L
42 M52 X 2 60 24 42 13.5 N42L F42L
H 630 Kg/cm2 6 M14 X 1.5 17 16 6 9.5 N6H F6H
8 M16 X 1.5 19 16 8 9.5 N8H F8H
10 M18 X 1.5 22 17.5 10 10 N10H F10H
12 M20 X 1.5 24 18 12 10 N12H F12H
14 M22 X 1.5 27 20 14 10 N14H F14H
400 Kg/cm2 16 M24 X 1.5 30 21 16 10.5 N16H F16H
20 M30 X 2 36 24 20 12.5 N20H F20H
25 M36 X 2 46 26.5 25 12.5 N25H F25H
250 Kg/cm2 30 M42 X 2 50 29.5 30 13 N30H F30H
38 M52 x 2 60 32.5 38 13.5 N38H F38H
SERIES TUBE OD. THREAD M S2 h1 d I PART NO.
NUT FERRULE
INCH SI ZE
OD TUBE		 6000 PSI 1/4" M14 X 1.5 0.67 0.63 0.25 0.36 4N 4F
3/8" M16 X 1.5 0.75 0.63 0.38 0.39 6N 6F
1/2" M20 X 1.5 0.94 0.66 0.5 0.39 8N 8F
3/4" M27 X 1.5 1.25 0.78 0.75 0.47 12N 12F
1" M36 X 2 1.75 0.98 1.01 0.47 16N 16F
3000 PSI 1 1/4" M42 X 2 1.97 1.16 1.26 0.51 20N 20F
1 1/2" M52 x 2 2.36 1.26 1.5 0.53 24N 24F
2000 PSI 2" M60 X 2 2.75 1.28 2.01 0.59 32N 32F
NOM.
BORE TUBE		 6000 PSI 1/4" M22 X 1.5 1.06 0.74 0.53 0.39 4NNB 4FNB
3/8" M26 X 1.5 1.25 0.78 0.67 0.43 6NNB 6FNB
1/2" M30 X 1.5 1.42 0.94 0.84 0.45 8NNB 8FNB
3/4" M36 X 2 1.61 0.98 1.06 0.49 12NNB 12FNB
3000 PSI 1" M45 X 2 2.05 1.16 1.33 0.51 16NNB 16FNB
1 1/4" M52 X 2 2.36 1.18 1.68 0.53 20NNB 20FNB
2000 PSI 1 1/2" M60 X 2 2.75 1.26 1.91 0.59 24NNB 24FNB
