JIS Flanges Manufacturer & Supplier

JIS Pipe Flanges, JIS B2220 Slip On Flanges, JIS B2291 Plate Flanges, JIS B2220 10K Blind Flanges, JIS B2291 16K Weld Neck Flanges, JIS B2220 Socket Weld Flanges, JIS B2291 Lap Joint Flanges Manufacturer & Suppliers in India.

Highly Acclaimed JIS B2220 / B2291 Pipe Flange Manufacturer, Suppliers & Exporters, Stockist in India

There are many JIS Flanges Manufacturers and traders in the market in which Hitesh Metal is a renowned one. We manufacture JIS Pipe Flanges in all sizes and shapes and offer them at affordable prices. Keeping all the national and international standards in view, we follow all the regulations while fabricating our JIS B2220 Flanges and JIS B2291 Flanges.

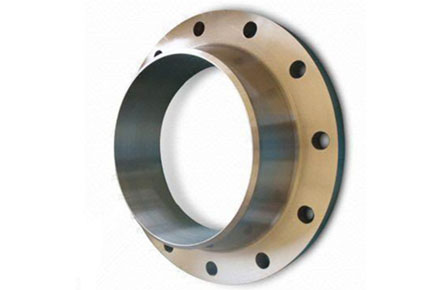

JIS Flanges
JIS Flanges

We finely finish all of our JIS Standard Flanges with extreme dimensional accuracy. We also own a crew of prestigious clientele who are well satisfied with the quality and performance of our JIS Slip on Flanges and JIS Weld Neck Flanges. For the distinguished properties of our JIS Blind Flanges and JIS Socket Weld Flanges, they have huge demand in the market.

Our JIS Threaded Flanges and JIS Lap Joint Flanges have various industrial applications for which they are exported to many countries. We reassure all of our JIS Orifice Flanges and JIS Spectacle Blind flanges at affordable prices. Our JIS Alloy Steel Flanges and JIS Nickel Alloy Flanges are long lasting and easy to install.

We hire well experienced and trained personnel to design JIS Reducing Flanges and JIS Forged Flanges with exemplary skill. Customized products are fabricating with different JIS Flange Dimensions and JIS Flange Sizes based on the client’s requirement. All the material which is used to fabricate our JIS Stainless Steel Flanges and JIS Carbon Steel Flanges are lent from renowned vendors of the market.

Please contact us and we assure you a speedy delivery of quality products that meet your specific needs and demands, all of our products are packed in wooden boxes to enable damage free transit. No sooner you place the order, than our sales personnel will deliver you within less span of time. Hurry up!

JIS Flanges Specifications:

Size DN15 - DN2000
Process Forged
Standard JIS B 2220
Type Slip On Flanges, Slip On Hub Flanges, Blind Flanges
Pressure Grade 2K, 5K, 10K, 16K, 20K, 30K, 40K

JIS Flange Dimensions

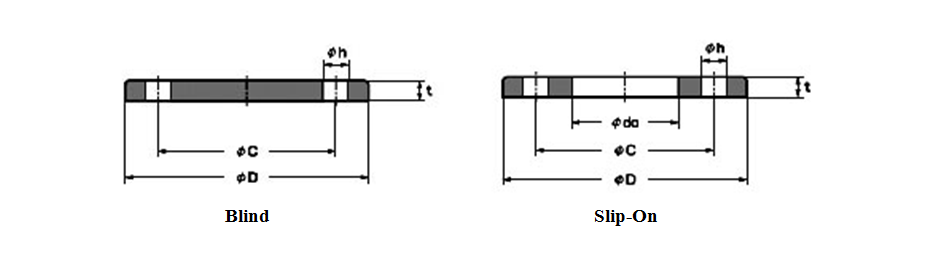

JIS Flanges 2 kg/cm2

JIS Flanges 2 kg/cm2
Pipe D do t C Holes ψh
18 450 457.2 605 460 22 555 16 23
20 500 508.0 655 511 22 605 20 23
22 550 558.0 720 562 24 665 20 25
24 600 609.6 770 613 24 715 20 25
26 650 660.4 825 664 24 770 24 25
28 700 711.2 875 715 24 820 24 25
30 750 766 24 880 24 27
32 800 812.8 995 817 24 930 24 27
34 850 863.6 1045 868 24 980 24 27
36 900 914.4 1095 919 24 1030 24 27
40 1000 1016.0 1195 1021 26 1130 28 27
44 1100 1117.6 1305 1122 26 1240 28 27
48 1200 1219.2 1420 1224 26 1350 32 27
54 1350 1371.6 1575 1376 26 1505 32 27
60 1500 1524.0 1730 1529 28 1660 36 27

JIS Flanges 5 kg/cm2

JIS Flanges 5 kg/cm2
Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8 +0.5 -0 75 +1.0 -0 9 +1.0-0 - ±1.0 42 ±0.8 1 - - +2.0-0 - +2.0-0 55 ±0.5 4 12
1/2 15 21.7 22.2 80 9 - 48 1 - - - 60 4 12
3/4 20 27.2 27.7 85 10 - 52 1 - - - 65 4 12
1 25 34.0 34.5 95 10 - 62 1 - - - 75 4 12
1-1/4 32 42.7 43.2 115 12 - 72 2 - - - 90 4 15
1-1/2 40 48.6 49.1 120 12 - 78 2 - - - 95 4 15
2 50 60.5 61.1 130 14 - 88 2 - - - 105 4 15
2-1/2 65 76.3 77.1 155 14 - 112 2 - - - 130 4 15
3 80 89.1 90.0 180 14 - 125 2 - - - 145 4 19
3-1/2 90 101.6 102.6 +1.0 -0 190 14 - 135 2 - - - 155 4 19
4 100 114.3 115.4 200 16 - 145 2 - - - 165 8 19
5 125 139.8 141.2 235 16 - 180 2 - - - 200 8 19
6 150 165.2 166.6 265 18 - 210 2 - - - 230 8 19
7 175 190.7 192.1 300 18 - 235 ±0.9 2 - - - 260 ±0.6 8 23
8 200 216.3 218.0 320 +1.5 -0 20 - 255 2 - - - 280 8 23
9 225 241.8 243.7 345 20 - 280 2 - - - 305 12 23
10 250 267.4 269.5 385 22 +1.5-0 32 320 2 5 286 290 345 12 23
12 300 318.5 321.0 430 22 34 365 3 5 338 342 390 12 23
14 350 355.6 358.1 480 24 36 405 3 5 378 382 435 12 25
16 400 406.4 409.0 +1.5 -0 540 24 36 465 3 5 432 436 495 16 25
18 450 457.2 460.0 605 +2.0 -0 24 40 525 3 5 495 500 555 ±0.8 16 25
20 500 508.0 511.0 655 24 40 575 3 5 546 552 605 20 25
22 550 558.8 562.0 720 26 42 630 3 5 597 603 665 20 27
24 600 609.6 613.0 +2.0 -0 770 26 44 680 ±1.0 3 5 648 654 +2.5-0 715 20 27
26 650 660.4 664.0 825 26 48 735 3 5 702 +2.5-0 708 770 24 27
28 700 711.2 715.0 875 26 48 785 3 5 751 758 820 24 27
30 750 762.0 766.0 945 28 52 ±1.5 840 3 5 802 810 880 24 33
32 800 812.8 817.0 +2.5 -0 995 28 52 890 3 5 854 +3.0-0 862 +3.0-0 930 24 33
34 850 863.6 868.0 1045 +2.5 -0 28 54 940 3 5 904 912 980 ±1.0 24 33
36 900 914.4 919.0 1095 30 56 990 3 5 956 964 1030 24 33
40 1000 1016.0 1021.0 +3.0 -0 1195 32 60 1090 ±1.2 3 5 1058 +3.5-0 1066 +3.5-0 1130 28 33
44 1100 1117.6 1123.0 1305 32 - 1200 3 - - - 1240 28 33
48 1200 1219.2 1224.0 1420 34 - 1305 3 - - - 1350 32 33
54 1350 1371.6 1377.0 1575 +3.0 -0 34 - 1460 3 - - - 1505 ±1.5 32 33
60 1500 1524.0 1529.0 1730 36 - 1615 3 - - - 1660 36 33

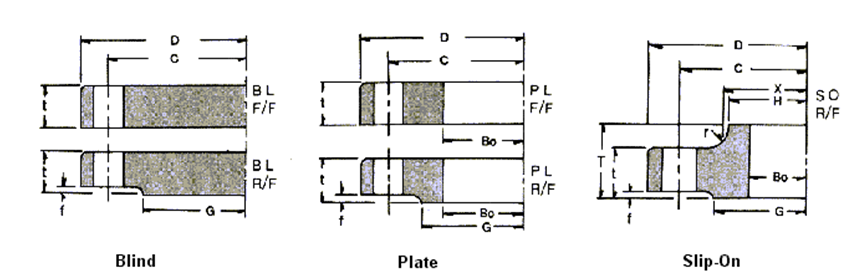

JIS Flanges 10 kg/cm2

JIS Flanges 10 kg/cm2
Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8 +0.5-0 90 +1.0-0 12 +1.0-0 - ±1.0 48 ±0.8 1 - - +1.5-0 - +1.5-0 65 ±0.5 4 15
1/2 15 21.7 22.2 95 12 - 52 1 - - - 70 4 15
3/4 20 27.2 27.7 100 14 - 58 1 - - - 75 4 15
1 25 34.0 34.5 125 14 - 70 1 - - - 90 4 19
1-1/4 32 42.7 43.2 135 16 - 80 2 - - - 100 4 19
1-1/2 40 48.6 49.1 140 16 - 85 2 - - - 105 4 19
2 50 60.5 61.1 155 16 - 100 2 - - - 120 4 19
2-1/2 65 76.3 77.1 175 18 - 120 2 - - - 140 4 19
3 80 89.1 90.0 185 18 - 130 2 - - - 150 8 19
3-1/2 90 101.6 102.6 +1.0-0 195 18 - 140 2 - - - 160 8 19
4 100 114.3 115.4 210 18 - 155 2 - - - 175 8 19
5 125 139.8 141.2 250 20 - 185 2 - - - 210 8 23
6 150 165.2 166.6 280 22 +1.5-0 - 215 2 - - - 240 8 23
7 175 190.7 192.1 305 +1.5-0 22 32 240 ±0.9 2 6 208 212 265 ±0.6 12 23
8 200 216.3 218.0 330 22 32 265 2 6 234 238 290 12 23
9 225 241.8 243.7 350 22 34 285 2 6 260 264 310 12 23
10 250 267.4 269.5 400 24 36 325 2 6 288 292 355 12 25
12 300 318.5 321.0 445 24 38 370 3 6 340 346 400 16 25
14 350 355.6 358.1 490 26 42 415 3 6 380 386 445 16 25
16 400 406.4 409.0 +1.5-0 560 28 44 475 3 6 436 442 510 16 27
18 450 457.2 460.0 620 +2.0-0 30 48 530 3 6 496 +2.0-0 502 +2.0-0 565 ±0.8 20 27
20 500 508.0 511.0 675 30 48 585 3 6 548 554 620 20 27
22 550 558.8 562.0 745 32 52 ±1.5 640 3 6 604 610 680 20 33
24 600 609.6 613.0 +2.0-0 795 32 52 690 ±1.0 3 6 656 +2.5-0 662 +2.5-0 730 24 33
26 650 660.4 664.0 845 34 56 740 3 6 706 712 780 24 33
28 700 711.2 715.0 905 34 58 800 3 6 762 770 840 24 33
30 750 762.0 766.0 970 36 62 855 3 6 816 824 900 24 33
32 800 812.8 817.0 +2.5-0 1020 +2.5-0 36 64 905 3 6 868 +3.0-0 876 +3.0-0 950 28 33
34 850 863.6 868.0 1070 36 66 955 3 6 920 928 1000 ±1.0 28 33
36 900 914.4 919.0 1120 38 70 1005 ±1.2 3 6 971 979 1050 28 33
40 1000 1016.0 1021.0 +3.0-0 1235 40 74 1110 3 6 1073 +3.5-0 1081 +3.5-0 1160 28 39
44 1100 1117.6 1123.0 1345 42 78 1220 3 8 1175 1185 1270 28 39
48 1200 1219.2 1224.0 1465 44 82 1325 3 8 1278 1290 1380 ±1.5 32 39
54 1350 1371.6 1377.0 1630 +3.0-0 48 88 1480 3 8 1432 1450 1540 36 45
60 1500 1524.0 1529.0 1795 50 90 1635 3 8 1585 1600 1700 40 45

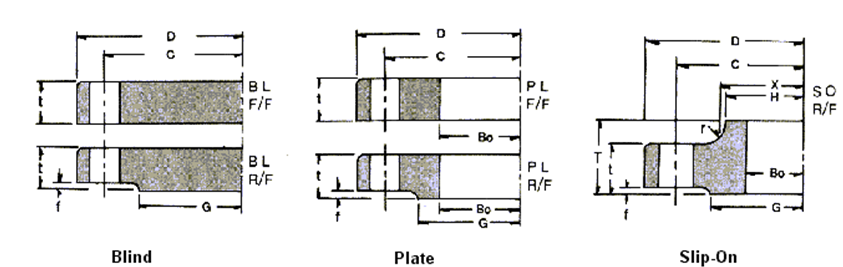

JIS Flanges 16 kg/cm2

JIS Flanges 16 kg/cm2
Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8 +0.5-0 90 +1.0-0 12 +1.0 16 ±1.0 48 ±0.8 1 4 26 +1.0-0 28 +1.0-0 65 ±0.5 4 15
1/2 15 21.7 22.2 95 12 16 52 1 4 30 32 70 4 15
3/4 20 27.2 27.7 100 14 20 58 1 4 38 42 75 4 15
1 25 34.0 34.5 125 14 20 70 1 4 46 50 90 4 19
1-1/4 32 42.7 43.2 135 16 22 80 2 5 56 60 100 4 19
1-1/2 40 48.6 49.1 140 16 24 85 2 5 62 66 105 4 19
2 50 60.5 61.1 155 16 24 100 2 5 76 80 120 8 19
2-1/2 65 76.3 77.1 175 18 26 120 2 5 94 98 140 8 19
3 80 89.1 90.0 200 20 28 135 2 6 108 112 160 8 23
3-1/2 90 101.6 102.6 +1.0-0 210 20 30 145 2 6 120 124 170 8 23
4 100 114.3 115.4 225 22 +1.5-0 34 160 2 6 134 138 185 8 23
5 125 139.8 141.2 270 22 34 195 2 6 164 170 225 8 25
6 150 165.2 166.6 305 +1.5-0 24 38 230 ±0.9 2 6 196 202 260 ±0.6 12 25
7 175 190.7 192.1 325 26 40 250 2 6 216 222 +1.5-0 280 12 25
8 200 216.3 218.0 350 26 40 275 2 6 244 +1.5-0 252 305 12 25
9 225 241.8 243.7 385 26 40 325 2 6 266 272 335 12 27
10 250 267.4 269.5 430 28 44 345 2 6 304 312 380 12 27
12 300 318.5 321.0 480 30 48 395 3 8 354 364 430 16 27
14 350 355.6 358.1 540 34 52 ±1.5 440 3 8 398 408 480 16 33
16 400 406.4 409.0 +1.5-0 605 +2.0-0 38 60 495 3 10 446 456 +2.0-0 540 16 33
18 450 457.2 460.0 675 40 64 560 3 10 504 +2.0-0 514 605 ±0.8 20 33
20 500 508.0 511.0 730 42 68 615 3 10 558 568 660 20 33
22 550 558.8 562.0 795 44 70 670 ±1.0 3 10 612 622 720 20 39
24 600 609.6 613.0 +2.0-0 845 46 74 720 3 10 666 +2.5-0 676 +2.5-0 770 24 39
26 650 660.4 664.0 895 48 77 770 5 10 704 726 820 24 39
28 700 711.2 715.0 960 50 80 820 5 10 754 776 875 24 42
30 750 762.0 766.0 1020 +2.5-0 52 +2.0-0 83 880 5 10 806 832 935 24 42
32 800 812.8 817.0 +2.5-0 1085 54 86 930 5 10 865 +3.0-0 885 +3.0-0 990 ±1.0 24 48
34 850 863.6 868.0 1135 56 89 980 5 10 916 936 1040 24 48
36 900 914.4 919.0 1185 58 93 1030 ±1.2 5 10 968 986 1090 28 48
40 1000 1016.0 1021.0 +3.0-0 1320 62 99 1140 5 12 1070 +3.5-0 1098 +3.5-0 1210 28 56
44 1100 1117.6 1123.0 1420 66 105 ±2.0 1240 5 12 1180 1200 1310 32 56
48 1200 1219.2 1225.0 1530 +3.0-0 70 112 1350 5 12 1282 1302 1420 ±1.5 32 56
52 1300 1320.8 1326.0 1645 74 - 1450 5 - - - 1530 32 62
54 1350 1371.6 1377.0 1700 76 - 1510 5 - - - 1590 32 62
56 1400 1422.4 1428.0 1755 78 - 1560 5 - - - 1640 36 62
60 1500 1524.0 1529.0 1865 80 - 1670 5 - - - 1750 36 62

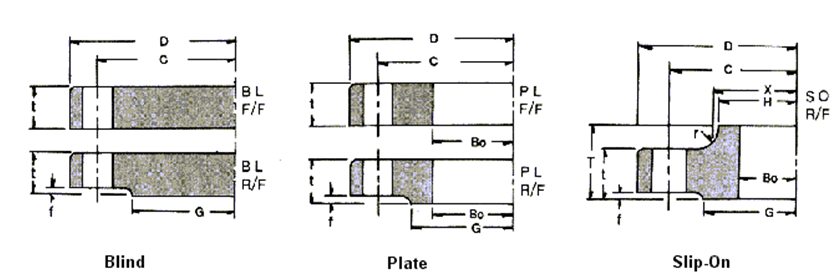

JIS Flanges 20 kg/cm2

JIS Flanges 20 kg/cm2
Pipe Pipe Bo D t T G f r H X C Holes Bolt Dia.
inch mm
3/8 10 17.3 17.8 +0.5-0 90 +1.0-0 14 +1.0 20 ±1.0 48 ±0.8 1 4 30 +1.0-0 32 +1.0-0 65 ±0.5 4 15
1/2 15 21.7 22.2 95 14 20 52 1 4 34 36 70 4 15
3/4 20 27.2 27.7 100 16 22 58 1 4 40 42 75 4 15
1 25 34.0 34.5 125 16 24 70 1 4 48 50 90 4 19
1-1/4 32 42.7 43.2 135 18 26 80 2 5 56 60 100 4 19
1-1/2 40 48.6 49.1 140 18 26 85 2 5 62 66 105 4 19
2 50 60.5 61.1 155 18 26 100 2 5 76 80 120 8 19
2-1/2 65 76.3 77.1 175 20 30 120 2 5 100 104 140 8 19
3 80 89.1 90.0 200 22 +1.5-0 34 135 2 6 113 117 160 8 23
3-1/2 90 101.6 102.6 +1.0-0 210 24 36 145 2 6 126 130 170 8 23
4 100 114.3 115.4 225 24 36 160 2 6 138 142 185 8 23
5 125 139.8 141.2 270 26 40 195 2 6 166 172 225 8 25
6 150 165.2 166.6 305 +1.5-0 28 42 230 ±0.9 2 6 196 202 260 ±0.6 12 25
7 175 190.7 192.1 325 30 46 250 2 6 218 226 +1.5-0 280 12 25
8 200 216.3 218.0 350 30 46 275 2 6 244 +1.5-0 252 305 12 25
9 225 241.8 243.7 385 32 48 300 2 6 266 274 335 12 27
10 250 267.4 269.5 430 34 52 ±1.5 345 2 6 304 312 380 12 27
12 300 318.5 321.0 480 36 56 395 3 8 354 364 430 16 27
14 350 355.6 358.1 540 40 62 440 3 8 398 408 480 16 33
16 400 406.4 409.0 +1.5-0 605 +2.0-0 46 70 495 3 10 446 456 +2.0-0 540 16 33
18 450 457.2 460.0 675 48 78 560 3 10 504 +2.0-0 514 605 ±0.8 20 33
20 500 508.0 511.0 730 50 84 615 3 10 558 568 660 20 33
22 550 558.8 562.0 795 52 +2.0-0 90 670 ±1.0 3 10 612 622 720 20 39
24 600 609.6 613.0 +2.0-0 845 54 96 720 3 10 666 +2.5-0 676 +2.5-0 770 24 39
26 650 660.4 664.0 945 60 - 790 5 - - - 850 24 48
28 700 711.2 715.0 995 64 - 840 5 - - - 900 24 48
30 750 762.0 766.0 1080 +2.5-0 68 - 900 5 - - - 970 ±1.0 24 56
32 800 812.8 817.0 +2.5-0 1140 72 - 960 5 - - - 1030 24 56
34 850 863.6 868.0 1200 74 - 1020 ±1.2 5 - - - 1090 24 56
36 900 914.4 919.0 1250 76 - 1070 5 - - - 1140 28 56

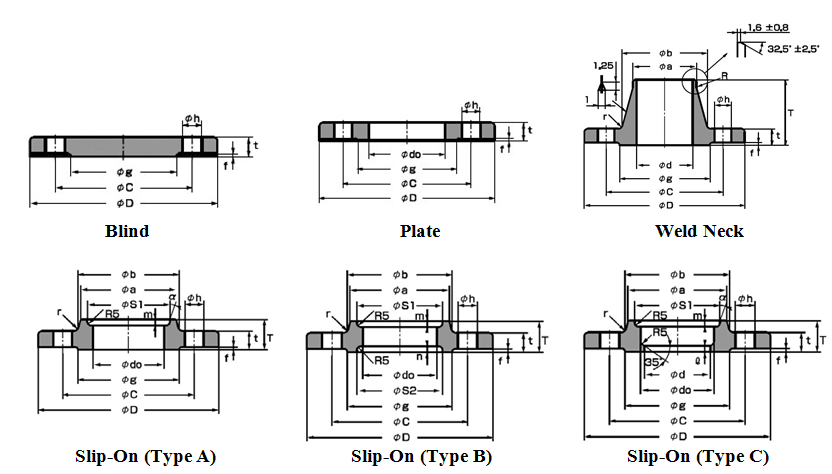

JIS Flanges 30 kg/cm2

JIS Flanges 30 kg/cm2
Pipe Pipe D t f g C Holes h Plate Slip-On Weld Neck Slip-On Type A、B、C
inch Mm do T a b r d d a b T R r S1 m S2 n a l
3/8 10 17.3 110 16 1 52 75 4 19 17.8 24 30 34 4 - - - - - - - 27 4 27 4 - -
1/2 15 21.7 115 18 1 55 80 4 19 22.2 26 36 40 5 - 16.1 21.7 40 45 20 6 31 4 40 5 - -
3/4 20 27.2 120 18 1 60 85 4 19 27.7 28 42 46 5 - 21.4 27.2 44 45 20 6 37 5 44 5 - -
1 25 34.0 130 20 1 70 95 4 19 34.5 30 50 54 5 - 27.2 34.0 52 48 20 6 44 6 52 5 - -
1-1/4 32 42.7 140 22 2 80 105 4 19 43.2 32 60 64 6 - 35.5 42.7 62 52 30 6 52 6 60 5 - -
1-1/2 40 48.6 160 22 2 90 120 4 23 49.1 34 66 70 6 - 41.2 48.6 70 54 30 6 58 6 66 5 - -
2 50 60.5 165 22 2 105 130 8 19 61.1 36 82 86 6 - 52.7 60.5 84 57 30 8 70 6.5 78 5 - -
2-1/2 65 76.3 200 26 2 130 160 8 23 77.1 40 102 106 8 65.9 65.9 76.3 104 69 30 8 96 9.5 - - 20° 6
3 80 89.1 210 28 2 140 170 8 23 90.0 44 115 121 8 78.1 78.1 89.1 118 73 30 8 109 9.5 - - 20° 6
3-1/2 90 101.6 230 30 2 150 185 8 25 102.6 46 128 134 8 90.2 90.2 101.6 130 74 30 8 122 9.5 - - 20° 6
4 100 114.3 240 32 2 160 195 8 25 115.4 48 141 147 8 102.3 102.3 114.3 142 76 30 8 135 9.5 - - 20° 6
5 125 139.8 275 36 2 195 230 8 25 141.2 54 166 172 8 126.6 126.6 139.8 172 86 50 10 160 9.5 - - 20° 6
6 150 165.2 325 38 2 235 275 12 27 166.6 58 196 204 8 151.0 151.0 165.2 202 95 50 10 186 9.5 - - 20° 6
8 200 216.3 370 42 2 280 320 12 27 218.0 64 248 256 8 199.9 199.9 216.3 254 102 50 10 237 9.5 - - 20° 6
10 250 267.4 450 48 2 345 390 12 33 269.5 72 306 314 10 248.8 248.8 267.4 312 118 50 12 290 10 - - 20° 6
12 300 318.5 515 52 3 405 450 16 33 321.0 78 360 370 10 297.9 297.9 318.5 366 127 50 15 345 12 - - 30° 6
14 350 355.6 560 54 3 450 495 16 33 358.1 84 402 412 12 333.4 333.4 355.6 406 134 80 15 383 13 - - 30° 6
16 400 406.4 630 60 3 510 560 16 39 409.0 92 456 468 15 381.0 381.0 406.4 462 149 80 20 435 14 - - 30° 7

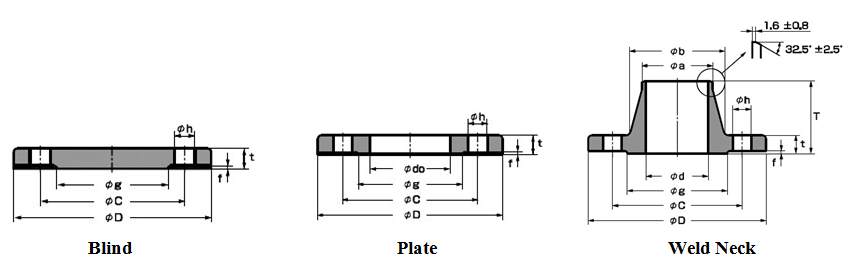

JIS Flanges 40 kg/cm2

JIS Flanges 40 kg/cm2
Pipe Pipe D do t f g c Holes h Weld Neck
inch mm d a b T
3/8 10 17.3 110 17.8 18 1 52 75 4 19 - 17.3 38 53
1/2 15 21.7 115 22.2 20 1 55 80 4 19 15.8 21.7 40 53
3/4 20 27.2 120 27.7 20 1 60 85 4 19 21.1 27.2 45 58
1 25 34.0 130 34.5 22 1 70 95 4 19 26.8 34.0 54 63
1-1/4 32 42.7 140 43.2 24 2 80 105 4 19 35.1 42.7 62 69
1-1/2 40 48.6 160 49.1 24 2 90 120 4 23 40.7 48.6 72 72
2 50 60.5 165 61.1 26 2 105 130 8 19 52.2 60.5 88 75
2-1/2 65 76.3 200 77.1 30 2 130 160 8 23 65.3 76.3 108 81
3 80 89.1 210 90.0 32 2 140 170 8 23 76.4 89.1 119 85
3-1/2 90 101.6 230 102.6 34 2 150 185 8 25 89.5 101.6 130 88
4 100 114.3 250 115.4 36 2 165 205 8 25 101.5 114.3 146 104
5 125 139.8 300 141.2 40 2 200 250 8 27 - - - -
6 150 165.2 355 166.6 44 2 240 295 12 33 150.0 165.2 215 120
8 200 216.3 405 218.0 50 2 290 345 12 33 198.7 216.3 270 135
10 250 267.4 475 269.5 56 2 355 410 12 33 247.5 267.4 333 154
12 300 318.5 540 321.0 60 2 410 470 16 39 296.4 318.5 400 159
14 350 355.6 585 358.1 64 3 455 515 16 39 331.8 355.6 432 168
16 400 406.4 645 409.0 70 3 515 570 16 39 379.1 406.4 466 181

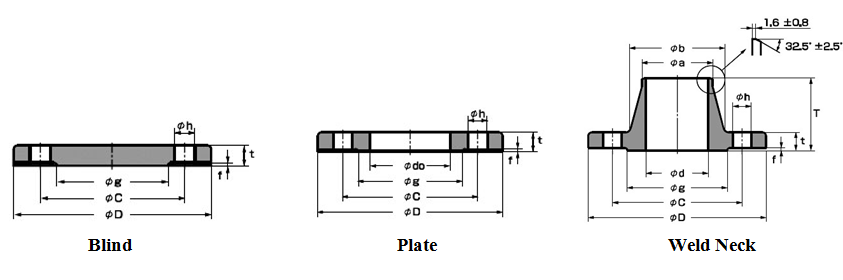

JIS Flanges 63 kg/cm2

JIS Flanges 63 kg/cm2
Pipe Pipe D do t F g c Holes h Weld Neck
inch mm d a b T
3/8 10 17.3 115 17.8 23 1 52 80 4 19 - 17.3 40 61
1/2 15 21.7 120 22.2 23 1 55 85 4 19 15.8 21.7 42 61
3/4 20 27.2 135 27.7 25 1 60 95 4 23 21.1 27.2 46 71
1 25 34.0 140 34.5 27 1 70 100 4 23 26.8 34.0 56 74
1-1/4 32 42.7 150 43.2 30 2 80 110 4 23 35.1 42.7 60 75
1-1/2 40 48.6 175 49.1 32 2 90 130 4 25 40.7 48.6 75 85
2 50 60.5 185 61.1 34 2 105 145 8 25 52.2 60.5 92 104
2-1/2 65 76.3 220 77.1 38 2 130 175 8 25 65.3 76.3 118 107
3 80 89.1 230 90.0 40 2 140 185 8 25 76.4 89.1 130 120
3-1/2 90 101.6 255 102.6 42 2 150 205 8 27 89.5 101.6 140 126
4 100 114.3 270 115.4 44 2 165 220 8 27 101.5 114.3 154 126
5 125 139.8 325 141.2 50 2 200 265 8 33 - - - -
6 150 165.2 365 166.6 54 2 240 305 12 33 150.0 165.2 230 173
8 200 216.3 425 218.0 60 2 290 360 12 33 198.7 216.3 280 215
10 250 267.4 500 269.5 68 2 355 430 12 39 247.5 267.4 348 256
12 300 318.5 560 321.0 77 3 410 485 16 39 296.4 318.5 402 286
14 350 355.6 615 358.1 81 3 455 530 16 46 331.8 355.6 438 301
16 400 406.4 680 409.0 89 3 515 590 16 46 379.1 406.4 490 314

Types of JIS Flanges

  • JIS Weld Neck Flanges
  • JIS Plate Flanges
  • JIS Slip On Flanges/ SORF
  • JIS Blind Flanges
  • JIS Weld Neck Flanges
  • JIS Socket Weld Flanges
  • JIS Orifice Flanges
  • JIS Blank Flange
  • Blank Flange Rotatable JIS
  • JIS Welding Flange Rotatable
  • JIS Flange with Tube
  • JIS Reducing Flanges
  • JIS Conflat Flanges
  • JIS Flange Bolted Weld-On
  • JIS Square Flange
  • JIS Lap Joint Flanges
  • JIS Girth Flanges
  • JIS Spectacle Blind Flanges
  • JIS Anchor Flanges
  • JIS Screw Flanges
  • JIS Ring Joint Flanges
  • JIS Swivel Flanges
  • JIS ANSI 150 Flanges
  • JIS Long WN Flanges
  • JIS Spade Flanges
  • JIS Spacer Flanges
  • JIS Figure 8 Flanges
  • JIS Weld Neck Flanges
  • JIS Plate Flanges
  • JIS Slip On Flanges
  • JIS Blind Flanges
  • JIS Threaded / Screwed Flanges
  • JIS B2220 Weld Neck Flanges
  • JIS B2220 Plate Flanges
  • JIS B2220 Slip On Flanges/ SORF
  • JIS B2220 Blind Flanges
  • JIS B2220 Weld Neck Flanges
  • JIS B2220 Socket Weld Flanges
  • JIS B2220 Orifice Flanges
  • JIS B2220 Blank Flange
  • Blank Flange Rotatable JIS B2220
  • JIS B2220 Welding Flange Rotatable
  • JIS B2220 Flange with Tube
  • JIS B2220 Reducing Flanges
  • JIS B2220 Conflat Flanges
  • JIS B2220 Flange Bolted Weld-On
  • JIS B2220 Square Flange
  • JIS B2220 Lap Joint Flanges
  • JIS B2220 Girth Flanges
  • JIS B2220 Spectacle Blind Flanges
  • JIS B2220 Anchor Flanges
  • JIS B2220 Screw Flanges
  • JIS B2220 Ring Joint Flanges
  • JIS B2220 Swivel Flanges
  • JIS B2220 ANSI 150 Flanges
  • JIS B2220 Long WN Flanges
  • JIS B2220 Spade Flanges
  • JIS B2220 Spacer Flanges
  • JIS B2220 Figure 8 Flanges
  • JIS B2220 Weld Neck Flanges
  • JIS B2220 Plate Flanges
  • JIS B2220 Slip On Flanges
  • JIS B2220 Blind Flanges
  • JIS B2291 Weld Neck Flanges
  • JIS B2220 Threaded / Screwed Flanges
  • JIS B2291 Plate Flanges
  • JIS B2291 Slip On Flanges/ SORF
  • JIS B2291 Blind Flanges
  • JIS B2291 Weld Neck Flanges
  • JIS B2291 Socket Weld Flanges
  • JIS B2291 Orifice Flanges
  • JIS B2291 Blank Flange
  • Blank Flange Rotatable JIS B2291
  • JIS B2291 Welding Flange Rotatable
  • JIS B2291 Flange with Tube
  • JIS B2291 Reducing Flanges
  • JIS B2291 Conflat Flanges
  • JIS B2291 Flange Bolted Weld-On
  • JIS B2291 Square Flange
  • JIS B2291 Lap Joint Flanges
  • JIS B2291 Girth Flanges
  • JIS B2291 Spectacle Blind Flanges
  • JIS B2291 Anchor Flanges
  • JIS B2291 Screw Flanges
  • JIS B2291 Ring Joint Flanges
  • JIS B2291 Swivel Flanges
  • JIS B2291 ANSI 150 Flanges
  • JIS B2291 Long WN Flanges
  • JIS B2291 Spade Flanges
  • JIS B2291 Spacer Flanges
  • JIS B2291 Figure 8 Flanges
  • JIS B2291 Weld Neck Flanges
  • JIS B2291 Plate Flanges
  • JIS B2291 Slip On Flanges
  • JIS B2291 Blind Flanges
  • JIS B2291 Threaded / Screwed Flanges

For JIS Flanges price list as on :

Request the latest JIS Flanges Price List. Use the contact button below for JIS Flanges Ready stock information and updated price list.

Call +91-9619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

SEND US YOUR REQUIREMENT

JIS Flanges Applications

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

JIS Flanges Manufacturer & Supplier

  • JIS Flanges manufacturer in india
  • JIS Flanges supplier in india
  • JIS Flanges manufacturer in Mumbai
  • JIS Flanges manufacturer in Pune
  • JIS Flanges supplier in Chennai
  • JIS Flanges manufacturer in Hyderabad

Top Export Destinations - JIS Flanges

Iran, Argentina, Colombia, Mexico, Africa, Houston, Brazil, Tunisia, Kazakhstan, Vietnam, London, Trinidad and Tobago, Kuwait, Canada, Iraq, Sudan, Israel, Azerbaijan, Turkey, Egypt, Australia, Dubai, Chine, United States, Italy, Saudi Arabia, UAE, Malaysia, Sri Lanka, Nigeria, South Africa, Peru, Indonesia, UK, Germany, Bahrain, New Zealand, Thailand (Bangkok), Jordan, Russia, Venezuela, Ethiopa, Ghana, Uganda, Cameroon, Algeria, Morocco, Mozambique, Angola, Qatar, Yemen, Oman, Lebanon, Cyprus, Johannesburg, Brazzaville, Cairo, Maputo, Lagos, Douala, Tripoli, Mogadishu, Khartoum, Port Harcourt, Antananarivo, Port Elizabeth, Kano, New York, Abu Dhabi, Dar es Salaam, Benin, Kampala, Luanda, Conakry, Rabat, Bulawayo, Cape Town, Alexandria, Fez, Ouagadougou, Mbuji-Mayi, Soweto, Singapore, Dakar, Omdurman, Hong Kong, Zaria, Lubumbashi, Kinshasa, Harare, Abidjan, Yaoundé, Addis Ababa, Giza, Algiers, Accra, Colombo, Kaduna, Maiduguri, Nairobi, Casablanca, Pretoria, Kolwezi, Subra al-Haymah, Durban, Freetown, Bamako, Ibadan, South America, Austalia, Austria, Bangladesh, Mozabique, Myanmar, Netherland, Phillipine, Spain, Jordon.

We Supply JIS Flanges to following Domestic Cities

Bangalore, Hyderabad, Ahmedabad, Chennai, Suryapet, Jamalpur, Bhiwadi, Ballia, Ambala, Sadar, Udgir, Miryalaguda, Bansberia, Mumbai, India, Maharashtra, Delhi, Karnataka, Andhra Pradesh, Kerala, Tripura, Benin, Puducherry, Mizoram, Manipur, Tadepalligudem, Betul, Nagapattinam, Bundi, Baraut, Buxar, Muktsar, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri and Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Gujarat, Tamil Nadu, West Bengal, Gujarat, Bihar, Rajasthan, Uttar Pradesh, Punjab, Haryana, Madhya Pradesh, Jharkhand, Chhattisgarh, Assam, Chandigarh, Orissa, Kalyan, Dombivali, Vasai, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Bhadreswar, Kasganj, Kalyani, Nagaur, Port, Blair, Datia, Hinganghat, Banswara, Nagda, Raipur, Kota, Guwahati, Solapur, Hubli and Dharwad, Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Ulhasnagar, Jhansi, Kolapur, Ajmer, Akola, Durgapur, Nanded, Gorakhpur, Belgaum, Mangalore, Ambattur, Tirunelveli, Saharanpur, Guntur, Bikaner, Amravati, Kurnool, Bhavnagar, Dehradun, Asansol, Waghala, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri.
REQUEST A QUOTE
Whatsapp
Phone
