Orifice Flanges Manufacturer & Supplier

ASME B 16.5, ASME B 16.47, MSS SP44, ASTM A182 Orifice (ORFF) Pipe Flanges & Raised Face Orifice Flanges Manufacturer & Exporter in India

Stainless Steel Orifice Flanges, Carbon Steel Orifice Flanges, Alloy Steel Orifice Flanges, Nickel Alloy Orifice Flanges, Monel Orifice Flanges, Hastelloy Orifice Flanges Dealer in India

Orifice Flanges are industrial mechanisms which are generally used along with orifice meters to measure the flow of fluids inside a pump. Our Orifice Pipe Flanges are generally of two types which are Raised face Orifice flanges and Ring Type Joint Orifice Flanges. Hitesh Metal is an eminent manufacturer and trader of a wide variety of raised face orifice flange.

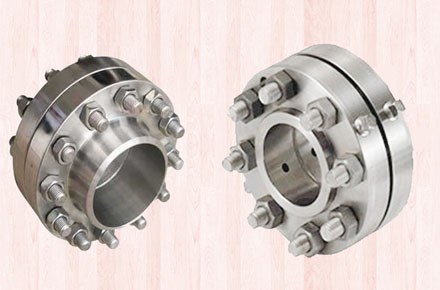

Orifice Flanges
Orifice Flanges

We have a team of professional clientele who are satisfied with the features and properties of our Stainless Steel Orifice Flanges. Being a renowned Orifice Flanges Manufacturer in the market, we design our products keeping all the national and international standards in view. Carbon Steel Orifice Flanges of all sizes and shapes are fabricated according to the customer’s requirement.

We hire professionally trained and experienced individuals to design Inconel Orifice Flanges using latest techniques. Prior to the mass production of Alloy Steel Orifice Flanges, we properly test our machinery for any flaws. This Orifice Plate Flange and Weld Neck Orifice Flanges contribute error-free and dimensionally precise products to our customers.

All the raw materials and metals to fabricate Forged Orifice Flanges and ANSI B16.5 Orifice Flanges are lent by genuine and honest vendors. We maintain friendly relations with our clients collecting time to time feedback about our ASME Orifice Flanges and DIN Orifice Flanges from them.

To attain detailed idea about all orifice flange assembly and their features, do visit our official website. If you have any queries, please get in touch with us. Place your order right now!

Orifice Flanges Availability:

  • Orifice Flanges
  • Slip-On Orifice Flanges
  • Welding Neck Orifice Flanges
  • Stainless Steel Orifice Flanges
  • Carbon Steel Orifice Flanges
  • Alloy Steel Orifice Flanges
  • Nickel Alloy Steel Orifice Flanges
  • Copper Alloy Orifice Flanges
  • Duplex Steel Orifice Flanges

Orifice Flanges Specifications:

Size ½" (15 NB) to 48" (1200NB)
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Standards ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
Material Aluminum, Brass, Bronze, Cast iron, Stainless Steel, Carbon Steel, Alloy, Nickel, Copper etc.
Type Orifice, Slip-On, Welding Neck

Grade specifications of Orifice Flanges

Stainless Steel Orifice Face Flanges
Standard ASTM A182 , A240
Grades F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L
Carbon Steel Orifice Face Flanges
Standard ASTM A105
Grades Gr. F42,46,52,56,60,65,70
Alloy Steel Orifice Face Flanges
Standard ASTM A182
Grades F1,F5,F9,F11,F22,F91
Nickel Alloy Steel Orifice Face Flanges
Standard ASTM SB564, SB160, SB472, SB162
Grades Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020),
Copper Alloy Orifice Face Flanges
Standard ASTM SB 61 , SB62 , SB151 , SB152
Grades UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,
Duplex Steel Slip-On Face Flanges
Standard ASTM A182, A240
Grades UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

Orifice Flange Dimensions – ANSI/ASME B16.5 Class 300 to Class 2500

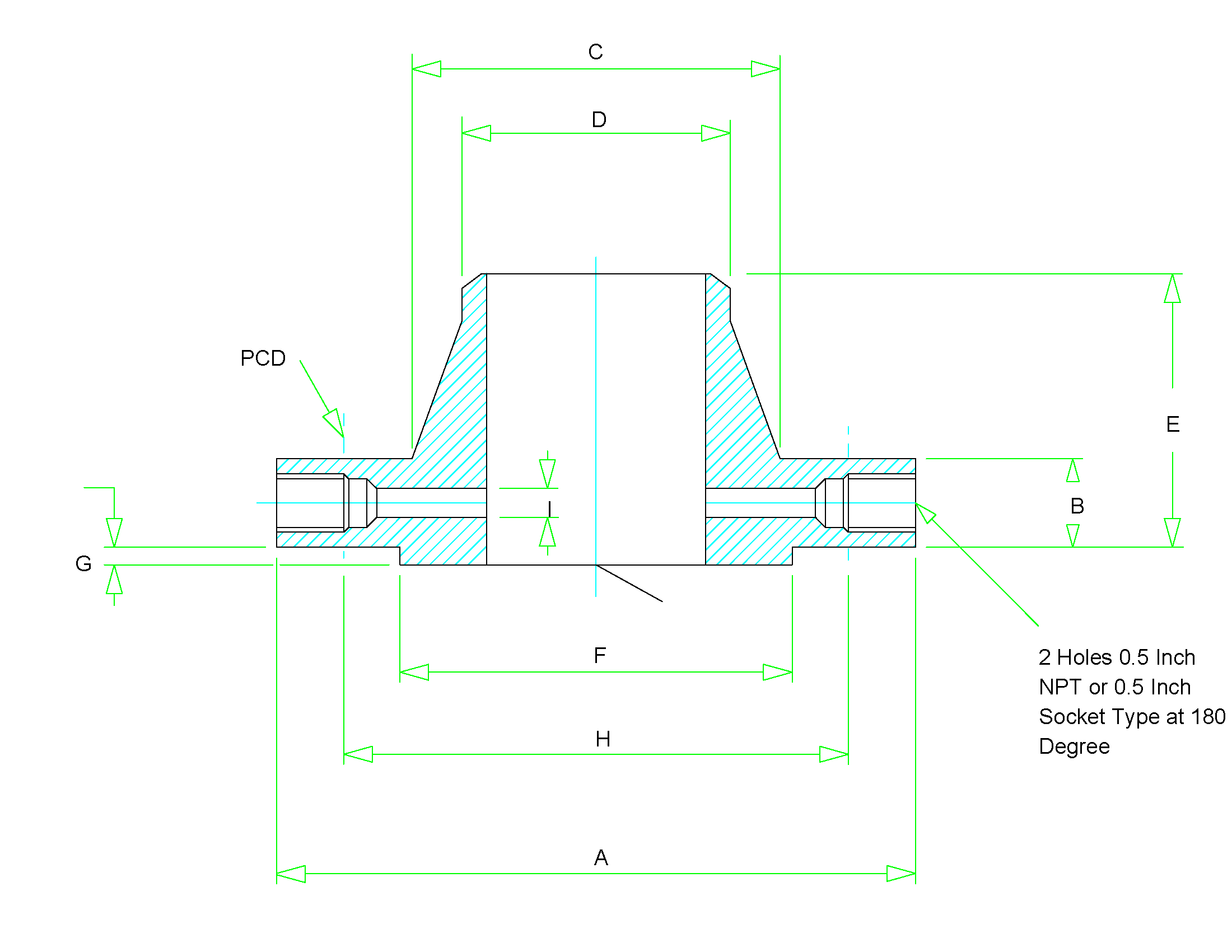

Orifice Flange Dimension

ANSI/ASME B16.5 Class 300 Orifice Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD Welding Neck Length RF Dia. RF Height PCD Orifice Hole dia No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H I
1 25 125 36.6 54 33.4 81 50.8 2 88.9 6.4 4 5/8 125 3/4 M16 4.5
1 1/2 40 155 36.6 70 48.3 84 73 2 114.3 6.4 4 3/4 135 7/8 M20 6.5
2 50 165 36.6 84 60.3 84 92.1 2 127 6.4 8 5/8 125 3/4 M16 7
2 1/2 65 190 36.6 100 73 87 104.8 2 149.2 6.4 8 3/4 135 7/8 M20 7.5
3 80 210 36.6 117 88.9 87 127 2 168.3 9.5 8 3/4 135 7/8 M20 9.4
4 100 255 36.6 146 114.3 90 157.2 2 200 12.7 8 3/4 135 7/8 M20 13.2
6 150 320 36.6 206 168.3 98 215.9 2 269.9 12.7 12 3/4 135 7/8 M20 14.6
8 200 380 39.7 260 219.1 110 269.9 2 330.2 12.7 12 7/8 145 1 M24 30
10 250 445 46.1 321 273 116 323.8 2 387.3 12.7 16 1 165 1 1/8 M27 41
12 300 520 49.3 375 323.8 129 381 2 450.8 12.7 16 1 1/8 180 1 1/4 M30 62
14 350 585 52.4 425 355.6 141 412.8 2 514.4 12.7 20 1 1/8 185 1 1/4 M30 84
16 400 650 55.6 483 406.4 144 469.9 2 571.5 12.7 20 1 1/4 195 1 3/8 M33 111
18 450 710 58.8 533 457 157 533.4 2 628.6 12.7 24 1 1/4 205 1 3/8 M33 138
20 500 775 62 587 508 160 584.2 2 685.8 12.7 24 1 1/4 215 1 3/8 M33 171
24 600 915 68.3 702 610 167 692.2 2 812.8 12.7 24 1 1/2 240 1 5/8 M39 247

ANSI/ASME B16.5 Class 600 Orifice Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD Welding Neck Length RF Dia. RF Height PCD Orifice Hole dia No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H I
1 25 125 36.6 54 33.5 81 50.8 7 88.9 6.4 4 5/8 125 3/4 M16 5.5
1 1/2 40 155 36.6 70 48.3 84 73 7 114.3 6.4 4 3/4 135 7/8 M20 7.8
2 50 165 36.6 84 60.3 84 92.1 7 127 6.4 8 5/8 125 3/4 M16 8.3
2 1/2 65 190 36.6 100 73 87 104.8 7 149.2 6.4 8 3/4 135 7/8 M20 10.8
3 80 210 36.6 117 88.9 87 127 7 168.3 9.5 8 3/4 135 7/8 M20 12.6
4 100 275 38.1 152 114.3 102 157.2 7 215.9 12.7 8 7/8 150 1 M24 19
6 150 355 47.7 222 168.3 117 215.9 7 292.1 12.7 12 1 180 1 1/8 M27 37
8 200 420 55.6 273 219.1 133 269.9 7 349.2 12.7 12 1 1/8 195 1 1/4 M30 53
10 250 510 63.5 343 273 152 323.8 7 431.8 12.7 16 1 1/4 220 1 3/8 M33 86
12 300 560 66.7 400 323.8 156 381 7 489 12.7 20 1 1/4 230 1 3/8 M33 102
14 350 605 69.9 432 355.6 165 412.8 7 527 12.7 20 1 3/8 240 1 1/2 M36 150
16 400 685 76.2 495 406.4 178 469.9 7 603.2 12.7 20 1 1/2 260 1 5/8 M39 190
18 450 745 82.6 546 457.2 184 533.4 7 654 12.7 20 1 5/8 280 1 3/4 M42 240
20 500 815 88.9 610 508 190 584.2 7 723.9 12.7 24 1 5/8 300 1 3/4 M42 295
24 600 940 101.6 718 609.6 203 692.2 7 838.2 12.7 24 1 7/8 335 2 M48 365

ANSI/ASME B16.5 Class 900 Orifice Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD Welding Neck Length RF Dia. RF Height PCD Orifice Hole dia No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H I
1 25 150 38.1 52 33.5 83 50.8 7 101.6 6.4 4 7/8 150 1 M24 5.4
1 1/2 40 180 38.1 70 48.3 89 73 7 123.8 6.4 4 1 160 1 1/8 M27 7.8
2 50 215 38.1 105 60.3 102 92.1 7 165.1 6.4 8 7/8 150 1 M30 11.5
2 1/2 65 245 41.3 124 73 105 104.8 7 190.5 6.4 8 1 165 1 1/8 M27 15.8
3 80 240 38.1 127 88.9 102 127 7 190.5 9.5 8 7/8 150 1 M24 22
4 100 290 44.5 159 114.3 114 157.2 7 235 12.7 8 1 1/8 180 1 1/4 M30 22
6 150 380 55.6 235 168.3 140 215.9 7 317.5 12.7 12 1 1/8 195 1 1/4 M30 70
8 200 470 63.5 298 219.1 162 269.9 7 393.7 12.7 12 1 3/8 230 1 1/2 M36 119
10 250 545 69.9 368 273 184 323.8 7 469.9 12.7 16 1 3/8 240 1 1/2 M36 204
12 300 610 79.4 419 323.8 200 381 7 533.4 12.7 20 1 3/8 260 1 1/2 M36 303
14 350 640 85.8 451 355.6 213 412.8 7 558.8 12.7 20 1 1/2 280 1 5/8 M39 400
16 400 705 88.9 508 406.4 216 469.9 7 616 12.7 20 1 5/8 290 1 3/4 M42 510
18 450 785 101.9 565 457.2 229 533.4 7 685.8 12.7 20 1 7/8 330 2 M48 738
20 500 855 108 622 508 248 584.2 7 749.3 12.7 20 2 355 2 1/8 M52 932
24 600 1040 139.7 749 609.6 292 692.2 7 901.7 12.7 20 2 1/2 445 2 5/8 M64 1511

ANSI/ASME B16.5 Class 1500 Orifice Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD Welding Neck Length RF Dia. RF Height PCD Orifice Hole dia No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H I
1 25 150 38.1 52 33.5 83 50.8 7 101.6 6.4 4 7/8 150 1 M24 5.4
1 1/2 40 180 38.1 70 48.3 89 73 7 123.8 6.4 4 1 160 1 1/8 M27 7.8
2 50 215 38.1 105 60.3 102 92.1 7 165.1 6.4 8 7/8 150 1 M24 11.5
2 1/2 65 245 41.3 124 73 105 104.8 7 190.5 6.4 8 1 165 1 1/8 M27 15.8
3 80 265 47.7 133 88.9 117 127 7 203.2 9.5 8 1 1/8 185 1 1/4 M30 22
4 100 310 54 162 114.3 124 157.2 7 241.3 12.7 8 1 1/4 205 1 3/8 M33 22
6 150 395 82.6 229 168.3 171 215.9 7 317.5 12.7 12 1 3/8 265 1 1/2 M36 70
8 200 485 92.1 292 219.1 213 269.9 7 393.7 12.7 12 1 5/8 300 1 3/4 M42 119
10 250 585 108 368 273 254 323.8 7 482.6 12.7 12 1 7/8 345 1 M48 204
12 300 675 123.9 451 323.8 283 381 7 571.5 12.7 16 2 380 2 1/8 M52 303
14 350 750 133.4 495 355.6 298 412.8 7 635 12.7 16 2 1/4 415 2 3/8 M56 400
16 400 825 146.1 552 406.4 311 469.9 7 704.8 12.7 16 2 1/2 450 2 5/8 M64 510
18 450 915 162 597 457.2 327 533.4 7 774.7 12.7 16 2 3/4 500 2 7/8 M72 738
20 500 985 177.8 641 508 356 584.2 7 831.8 12.7 16 3 545 3 1/8 M76 932
24 600 1170 203.2 762 609.6 406 692.2 7 990.6 12.7 16 3 1/2 620 3 5/8 M90 1511

ANSI/ASME B16.5 Class 2500 Orifice Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD Welding Neck Length RF Dia. RF Height PCD Orifice Hole dia No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H I
1 25 160 38.1 57 33.5 92 50.8 7 108 6.4 4 7/8 150 1 M24 6.5
1 1/2 40 205 44.5 79 48.3 111 73 7 146 6.4 4 1 1/8 180 1 1/4 M30 13
2 50 235 50.8 95 60.3 127 92.1 7 171.4 6.4 8 1 185 1 1/8 M27 19
2 1/2 65 265 57.2 114 73 143 104.8 7 196.8 6.4 8 1 1/8 205 1 1/4 M30 24
3 80 305 66.7 133 88.9 168 127 7 228.6 9.5 8 1 1/4 230 1 3/8 M33 43
4 100 355 76.2 165 114.3 190 157.2 7 273 12.7 8 1 1/2 260 1 5/8 M39 66
6 150 485 108 235 168.3 273 215.9 7 368.3 12.7 8 2 350 2 1/8 M52 172
8 200 550 127 305 219.1 318 269.9 7 438.2 12.7 12 2 385 2 1/8 M52 261
10 250 675 165.1 375 273 419 323.8 7 539.8 12.7 12 2 1/2 490 2 5/8 M64 485
12 300 760 184.2 441 323.8 464 381 7 619.1 12.7 12 2 3/4 540 2 7/8 M72 730

Types of Orifice Flanges

  • Industry Standard Class 75 Orifice Flanges
  • Industry Standard Class 150 Orifice Flanges
  • Industry Standard Class 175 Orifice Flanges
  • Industry Standard Class 250 Orifice Flanges
  • Industry Standard Class 300 Orifice Flanges
  • Industry Standard Class 350 Orifice Flanges
  • Plate Orifice Flanges
  • Ring Type Joint Orifice Flanges
  • Drawing Orifice Flanges
  • Square Orifice Flanges
  • Nipo Orifice Flanges
  • Reducing Orifice Flanges
  • Forged Orifice Flanges
  • Stainless Steel Orifice Flanges
  • Industry Standard Class 125 Light-weight Orifice Flanges
  • Industry Standard Class 125/150 Orifice Flanges

Other Standards of Orifice Flanges

  • ANSI B16.5 Orifice Flanges
  • ANSI B16.5 Class 150 Orifice Flanges
  • ANSI B16.5 Class 300 Orifice Flanges
  • ANSI B16.5 Class 400 Orifice Flanges
  • ANSI B16.5 Class 600 Orifice Flanges
  • ANSI B16.5 Class 900 Orifice Flanges
  • ANSI B16.5 Class 1500 Orifice Flanges
  • ANSI B16.5 Class 2500 Orifice Flanges
  • ASME B16.47 Series A Orifice Flanges
  • ASME B16.47 Series B Orifice Flanges
  • ANSI B16.36 Orifice Orifice Flanges
  • 150Lbs Orifice Flanges
  • 300Lbs Orifice Flanges
  • 600Lbs Orifice Flanges
  • 900Lbs Orifice Flanges
  • 1500Lbs Orifice Flanges
  • 2500Lbs Orifice Flanges
  • DIN Orifice Flanges PN6-PN40

For Orifice Flanges price list as on :

Request the latest Orifice Flanges Price List. Use the contact button below for Orifice Flanges Ready stock information and updated price list.

Call +91-22-6743 7444 / +91-22-6743 8222 OR

Email us at hiteshmetal@yahoo.com for quick response

SEND US YOUR REQUIREMENT

Orifice Flanges Applications

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry
