Stainless Steel Slip on Flanges Manufacturer

ANSI B 16.5, ASME B 16.47 Stainless Steel Slip on Flange, ASTM A182 SS SORF Flanges, SS Slip On Raised Face Flanges Stockist & Exporter

Manufacturer & Supplier of Stainless Steel 304 Slip on Flange, SS 316 Slip on Flange, SS UNS S30400/ S31600 Flanges, Stainless Steel Werkstoff Nr. 1.4301 / 1.4401 Pipe Flanges in India

At Hitesh Metal, we are strives to deliver high-quality Stainless Steel Slip on Flanges which are widely used to establish a connection in pipes. Our steel slip on flanges is high on quality, robust, durable and easy to install. We carry a large inventory of slip on flanges in many grades, sizes and according to customer’s specifications and requirements.

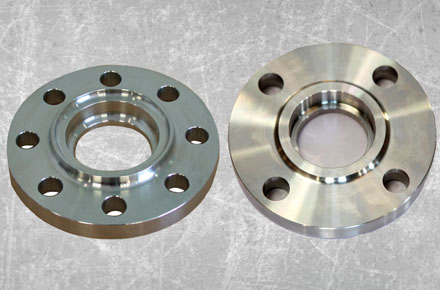

Stainless Steel Slip on Flanges
Stainless Steel Slip on Flanges

We are a well-known manufacturer of Steel Slip-On Pipe Flanges across the globe. These flanges typically come with a raised face, flat face, or RTJ facing. Our SS Slip on Flanges has a high demand product over the national and international market.

Our product ensures accuracy and precision so that our clients get value for their money. Moreover, offered a range of Stainless Steel SORF Flanges or Stainless Steel Slip on Raised Face Flanges is an attachment fitting that is secured to the end of a pipe for installation purposes.

We keep the largest assortment of slip on flanges stock that made from high-end quality stainless steel material at industry leading prices. Contact us today to request a free quote!

Stainless Steel Slip on Flanges Availability:


Stainless Steel Slip on Flanges Specifications:

Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size 1/2" NB TO 48" NB
Designation A 182 / A 240, SA 182 / SA 240
Class 150#, 300#, 400#, 600#, 900#, 1500# & 2500#.
Grade ASTM A182 F304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L ETC.

Available Grades of ANSI 16.5 Stainless Steel Slip on Flanges
ASTM A182 Stainless Steel Slip on Flanges Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 316 1.4401 S31600 SUS 316 316S31 - Z7CND17‐11‐02 X5CrNiMo17-12-2
Stainless Steel 304 / 316 Slip on Flanges Chemical Composition
Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.040 max 0.030 max 18 – 20 – 8 – 11
SS 316 0.08 max 2 max 0.75 max 0.045 max 0.030 max 16 – 18 2 – 3 10 – 14 0.1 max
Stainless Steel S30400 / S31600 Slip on Flanges Mechanical & Physical Properties
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel Slip on Flange Dimensions – Class 150 to Class 1500

Slip on Flange Dimension

Stainless Steel Slip on Flange Class 150 Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 90 9.6 30 14 34.9 2 60.3 22.2 4 1/2 50 55 5/8 M14 0.8
3/4 20 100 11.2 38 14 42.9 2 69.9 27.7 4 1/2 50 65 5/8 M14 0.9
1 25 110 12.7 49 16 50.8 2 79.4 34.5 4 1/2 55 65 5/8 M14 0.9
1 1/4 32 115 14.3 59 19 63.5 2 88.9 43.2 4 1/2 55 70 5/8 M14 1.4
1 1/2 40 125 15.9 65 21 73 2 98.4 49.5 4 1/2 65 70 5/8 M14 1.4
2 50 150 17.5 78 24 92.1 2 120.7 61.9 4 5/8 70 85 3/4 M16 2.3
2 1/2 65 180 20.7 90 27 104.8 2 139.7 74.6 4 5/8 75 90 3/4 M16 3.2
3 80 190 22.3 108 29 127 2 152.4 90.7 4 5/8 75 90 3/4 M16 3.7
3 1/2 90 215 22.3 122 30 139.7 2 177.8 103.4 8 5/8 75 90 3/4 M16 5
4 100 230 22.3 135 32 157.2 2 190.5 116.1 8 5/8 75 90 3/4 M16 5.9
5 125 255 22.3 164 35 185.7 2 215.9 143.8 8 3/4 85 95 7/8 M20 6.8
6 150 280 23.9 192 38 215.9 2 241.3 170.7 8 3/4 85 100 7/8 M20 8.6
8 200 345 27 246 43 269.9 2 298.5 221.5 8 3/4 90 110 7/8 M20 13.7
10 250 405 28.6 305 48 323.8 2 362 276.2 12 7/8 100 115 1 M24 19.5
12 300 485 30.2 365 54 381 2 431.8 327 12 7/8 100 120 1 M24 29
14 350 535 33.4 400 56 412.8 2 476.3 359.2 12 1 115 135 1 1/8 M27 41
16 400 595 35 457 62 469.9 2 539.8 410.5 16 1 115 135 1 1/8 M27 54
18 450 635 38.1 505 67 533.4 2 577.9 461.8 16 1 1/8 125 145 1 1/4 M30 59
20 500 700 41.3 559 71 584.2 2 635 513.1 20 1 1/8 140 160 1 1/4 M30 75
24 600 815 46.1 663 81 692.2 2 749.3 616 20 1 1/4 150 170 1 3/8 M33 100

Stainless Steel Slip on Flange Class 300 Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 12.7 38 21 34.9 2 66.7 22.2 4 1/2 55 65 5/8 M14 1.2
3/4 20 115 14.3 48 24 42.9 2 82.6 27.7 4 5/8 65 75 3/4 M16 1.4
1 25 125 15.9 54 25 50.8 2 88.9 34.5 4 5/8 65 75 3/4 M16 1.4
1 1/4 32 135 17.5 64 25 63.5 2 98.4 43.2 4 5/8 70 85 3/4 M16 1.8
1 1/2 40 155 19.1 70 29 73 2 114.3 49.5 4 3/4 75 90 7/8 M20 2.7
2 50 165 20.7 84 32 92.1 2 127 61.9 8 5/8 75 90 3/4 M16 3.2
2 1/2 65 190 23.9 100 37 104.8 2 149.2 74.6 8 3/4 85 100 7/8 M20 4.6
3 80 210 27 117 41 127 2 168.3 90.7 8 3/4 90 110 7/8 M20 5.9
3 1/2 90 230 28.6 133 43 139.7 2 184.2 103.4 8 3/4 95 110 7/8 M20 7.7
4 100 255 30.2 146 46 157.2 2 200 116.8 8 3/4 95 115 7/8 M20 10
5 125 280 33.4 178 49 185.7 2 235 144.4 8 3/4 110 120 7/8 M20 12.7
6 150 320 35 206 51 215.9 2 269.9 171.4 12 3/4 110 120 7/8 M20 17.7
8 200 380 39.7 260 60 269.9 2 330.2 222.2 12 7/8 120 140 1 M24 26
10 250 445 46.1 321 65 323.8 2 387.4 277.4 16 1 140 160 1 1/8 M27 36
12 300 520 49.3 375 71 381 2 450.8 328.2 16 1 1/8 145 170 1 1/4 M30 52
14 350 585 52.4 425 75 412.8 2 514.4 360.2 20 1 1/8 160 180 1 1/4 M30 75
16 400 650 55.6 483 81 469.9 2 571.5 411.2 20 1 1/4 165 190 1 3/8 M33 86
18 450 710 58.8 533 87 533.4 2 628.6 462.3 24 1 1/4 170 195 1 3/8 M33 113
20 500 775 62 587 94 584.2 2 685.8 514.4 24 1 1/4 185 205 1 3/8 M33 143
24 600 915 68.3 702 105 692.2 2 812.8 616 24 1 1/2 205 230 1 5/8 M39 216

Stainless Steel Slip on Flange Class 400 Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 14.3 38 22 34.9 7 66.7 22.2 4 1/2 75 5/8 M14 1.3
3/4 20 115 15.9 48 25 42.9 7 82.6 27.7 4 5/8 90 3/4 M16 1.5
1 25 125 17.5 54 27 50.8 7 88.9 34.5 4 5/8 90 3/4 M16 1.8
1 1/4 32 135 20.7 64 29 63.5 7 98.4 43.2 4 5/8 95 3/4 M16 2.3
1 1/2 40 155 22.3 70 32 73 7 114.3 49.5 4 3/4 110 7/8 M20 3.2
2 50 165 25.4 84 37 92.1 7 127 61.9 8 5/8 110 3/4 M16 4.1
2 1/2 65 190 28.6 100 41 104.8 7 149.2 74.6 8 3/4 120 7/8 M20 5.9
3 80 210 31.8 117 46 127 7 168.3 90.7 8 3/4 125 7/8 M20 7.3
4 100 255 35 146 51 157.2 7 200 116.1 8 7/8 140 1 M24 11.8
5 125 280 38.1 178 54 185.7 7 235 143.8 8 7/8 145 1 M24 14.1
6 150 320 41.3 206 57 215.9 7 269.9 170.7 12 7/8 150 1 M24 20
8 200 380 47.7 260 68 269.9 7 330 221.5 12 1 170 1 1/8 M27 31
10 250 445 54 321 73 323.8 7 387.4 276.2 16 1 1/8 190 1 1/4 M30 42
12 300 520 57.2 375 79 381 7 450.8 327 16 1 1/4 205 1 3/8 M33 59
14 350 585 60.4 425 84 412.8 7 514.4 359.2 20 1 1/4 210 1 3/8 M33 82
16 400 650 63.5 483 94 469.9 7 571.5 410.5 20 1 3/8 220 1 1/2 M36 107
18 450 710 66.7 533 98 533.4 7 628.6 461.8 24 1 3/8 230 1 1/2 M36 130
20 500 775 69.9 587 102 584.2 7 685.8 513.1 24 1 1/2 240 1 3/4 M39 157
24 600 915 76.2 702 114 692.2 7 812.8 616 24 1 3/4 265 1 7/8 M45 232

Stainless Steel Slip on Flange Class 600 Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 14.3 38 22 34.9 7 66.7 22.2 4 1/2 75 5/8 M14 1.3
3/4 20 115 15.9 48 25 42.9 7 82.6 27.7 4 5/8 90 3/4 M16 1.4
1 25 125 17.5 54 27 50.8 7 88.9 34.5 4 5/8 90 3/4 M16 1.8
1 1/4 32 135 20.7 64 29 63.5 7 98.4 43.2 4 5/8 95 3/4 M16 2.3
1 1/2 40 155 22.3 70 32 73 7 114.3 49.5 4 3/4 110 7/8 M20 3.2
2 50 165 25.4 84 37 92.1 7 127 61.9 8 5/8 110 3/4 M16 4.1
2 1/2 65 190 28.6 100 41 104.8 7 149.2 74.6 8 3/4 120 7/8 M20 5.9
3 80 210 31.8 117 46 127 7 168.3 90.7 8 3/4 125 7/8 M20 7.3
4 100 275 38.1 152 54 157.2 7 215.9 116.1 8 7/8 145 1 M24 16.8
5 125 330 44.5 189 60 185.7 7 266.7 143.8 8 1 165 1 1/8 M27 29
6 150 355 47.7 222 67 215.9 7 292.1 170.7 12 1 170 1 1/8 M27 36
8 200 420 55.6 273 76 269.9 7 349.2 221.5 12 1 1/8 190 1 1/4 M30 52
10 250 510 63.5 343 86 323.8 7 431.8 276.2 16 1 1/4 215 1 3/8 M33 77
12 300 560 66.7 400 92 381 7 489 327 20 1 1/4 220 1 3/8 M33 91
14 350 605 69.9 432 94 412.8 7 527 359.2 20 1 3/8 235 1 1/2 M36 105
16 400 685 76.2 495 106 469.9 7 603.2 410.5 20 1 1/2 255 1 5/8 M39 150
18 450 745 82.6 546 117 533.4 7 654 461.8 20 1 5/8 275 1 3/4 M42 182
20 500 815 88.9 610 127 584.2 7 723.9 513.1 24 1 5/8 285 1 3/4 M42 232
24 600 940 101.6 718 140 692.2 7 838.2 616 24 1 7/8 330 2 M48 332

Stainless Steel Slip on Flange Class 900 Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 3/4 110 7/8 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 3/4 115 7/8 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 7/8 125 1 M24 3.6
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 7/8 125 1 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 1 140 1 1/8 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 7/8 145 1 M24 11.5
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 1 160 1 1/8 M27 16.5
3 80 240 38.1 127 54 127 7 190.5 90.7 8 7/8 145 1 M24 12
4 100 290 44.5 159 70 157.2 7 235 116.1 8 1 1/8 170 1 1/4 M30 24
5 125 350 50.8 190 79 185.7 7 279.4 143.8 8 1 1/4 190 1 3/8 M33 38
6 150 380 55.6 235 86 215.9 7 317.5 170.7 12 1 1/8 190 1 1/4 M30 50
8 200 470 63.5 298 102 269.9 7 393.7 221.5 12 1 3/8 220 1 1/2 M36 78
10 250 545 69.9 368 108 323.8 7 469.9 276.2 16 1 3/8 235 1 1/2 M36 112
12 300 610 79.4 419 117 381 7 533.4 327 20 1 3/8 255 1 1/2 M36 148
14 350 640 85.8 451 130 412.8 7 558.8 359.2 20 1 1/2 275 1 5/8 M39 182
16 400 705 88.9 508 133 469.9 7 616 410.5 20 1 5/8 285 1 3/4 M42 193
18 450 785 101.6 565 152 533.4 7 685.8 461.8 20 1 7/8 325 2 M48 258
20 500 855 108 622 159 584.2 7 749.3 513.1 20 2 350 2 1/8 M52 317
24 600 1040 139.7 749 203 692.2 7 901.7 616 20 2 1/2 440 2 5/8 M64 608

Stainless Steel Slip on Flange Class 1500 Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 3/4 110 7/8 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 3/4 115 7/8 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 7/8 125 1 M24 3.7
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 7/8 125 1 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 1 140 1 1/8 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 7/8 145 1 M24 9.8
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 1 160 1 1/8 M27 16.4

Types of Stainless Steel Slip on Flanges

  • Stainless Steel Class 75 Slip-On Flanges
  • Stainless Steel Class 150 Slip-On Flanges
  • Stainless Steel Class 175 Slip-On Flanges
  • Stainless Steel Class 250 Slip-On Flanges
  • Stainless Steel Class 300 Slip-On Flanges
  • Stainless Steel Class 350 Slip-On Flanges
  • Stainless Steel Plate Slip-On Flanges
  • Stainless Steel Ring Type Joint Slip-On Flanges
  • Stainless Steel Drawing Slip-On Flanges
  • Stainless Steel Square Slip-On Flanges
  • Stainless Steel Nipo Slip-On Flanges
  • Stainless Steel Reducing Slip-On Flanges
  • Stainless Steel Forged Slip-On Flanges
  • Stainless Steel Slip-On Flanges
  • Stainless Steel Class 125 Light-weight Slip-On Flanges
  • Stainless Steel Class 125/150 Slip-On Flanges

Other Standards of ANSI / ASME / DIN Stainless Steel Slip on Flanges

  • ANSI B16.5 Stainless Steel Slip-On Flanges
  • ANSI B16.5 Stainless Steel Class 150 Slip-On Flanges
  • ANSI B16.5 Stainless Steel Class 300 Slip-On Flanges
  • ANSI B16.5 Stainless Steel Class 400 Slip-On Flanges
  • ANSI B16.5 Stainless Steel Class 600 Slip-On Flanges
  • ANSI B16.5 Stainless Steel Class 900 Slip-On Flanges
  • ANSI B16.5 Stainless Steel Class 1500 Slip-On Flanges
  • ANSI B16.5 Stainless Steel Class 2500 Slip-On Flanges
  • ASME B16.47 Stainless Steel Series A Slip-On Flanges
  • ASME B16.47 Stainless Steel Series B Slip-On Flanges
  • ANSI B16.36 Stainless Steel Orifice Slip-On Flanges
  • DIN Slip-On Stainless Steel Flanges PN6-PN40

For Stainless Steel Slip on Flanges price list

Request the latest Stainless Steel Slip on Flanges Price List. Use the contact button below for Stainless Steel Slip on Flanges Ready stock information and updated price list.

Call +91-9619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

SEND US YOUR REQUIREMENT

Stainless Steel Slip on Flanges Applications

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

Stainless Steel Slip on Flanges Manufacturer & Supplier

  • Stainless Steel Slip on Flanges manufacturer in india
  • Stainless Steel Slip on Flanges supplier in india
  • Stainless Steel Slip on Flanges manufacturer in Mumbai
  • Stainless Steel Slip on Flanges manufacturer in Pune
  • Stainless Steel Slip on Flanges supplier in Chennai
  • Stainless Steel Slip on Flanges manufacturer in Hyderabad

Top Export Destinations - Stainless Steel Slip on Flanges

Iran, Argentina, Colombia, Mexico, Africa, Houston, Brazil, Tunisia, Kazakhstan, Vietnam, London, Trinidad and Tobago, Kuwait, Canada, Iraq, Sudan, Israel, Azerbaijan, Turkey, Egypt, Australia, Dubai, Chine, United States, Italy, Saudi Arabia, UAE, Malaysia, Sri Lanka, Nigeria, South Africa, Peru, Indonesia, UK, Germany, Bahrain, New Zealand, Thailand (Bangkok), Jordan, Russia, Venezuela, Ethiopa, Ghana, Uganda, Cameroon, Algeria, Morocco, Mozambique, Angola, Qatar, Yemen, Oman, Lebanon, Cyprus, Johannesburg, Brazzaville, Cairo, Maputo, Lagos, Douala, Tripoli, Mogadishu, Khartoum, Port Harcourt, Antananarivo, Port Elizabeth, Kano, New York, Abu Dhabi, Dar es Salaam, Benin, Kampala, Luanda, Conakry, Rabat, Bulawayo, Cape Town, Alexandria, Fez, Ouagadougou, Mbuji-Mayi, Soweto, Singapore, Dakar, Omdurman, Hong Kong, Zaria, Lubumbashi, Kinshasa, Harare, Abidjan, Yaoundé, Addis Ababa, Giza, Algiers, Accra, Colombo, Kaduna, Maiduguri, Nairobi, Casablanca, Pretoria, Kolwezi, Subra al-Haymah, Durban, Freetown, Bamako, Ibadan, South America, Austalia, Austria, Bangladesh, Mozabique, Myanmar, Netherland, Phillipine, Spain, Jordon.

We Supply Stainless Steel Slip on Flanges to following Domestic Cities

Bangalore, Hyderabad, Ahmedabad, Chennai, Suryapet, Jamalpur, Bhiwadi, Ballia, Ambala, Sadar, Udgir, Miryalaguda, Bansberia, Mumbai, India, Maharashtra, Delhi, Karnataka, Andhra Pradesh, Kerala, Tripura, Benin, Puducherry, Mizoram, Manipur, Tadepalligudem, Betul, Nagapattinam, Bundi, Baraut, Buxar, Muktsar, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri and Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Gujarat, Tamil Nadu, West Bengal, Gujarat, Bihar, Rajasthan, Uttar Pradesh, Punjab, Haryana, Madhya Pradesh, Jharkhand, Chhattisgarh, Assam, Chandigarh, Orissa, Kalyan, Dombivali, Vasai, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Bhadreswar, Kasganj, Kalyani, Nagaur, Port, Blair, Datia, Hinganghat, Banswara, Nagda, Raipur, Kota, Guwahati, Solapur, Hubli and Dharwad, Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Ulhasnagar, Jhansi, Kolapur, Ajmer, Akola, Durgapur, Nanded, Gorakhpur, Belgaum, Mangalore, Ambattur, Tirunelveli, Saharanpur, Guntur, Bikaner, Amravati, Kurnool, Bhavnagar, Dehradun, Asansol, Waghala, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri.
REQUEST A QUOTE
Whatsapp
Phone
