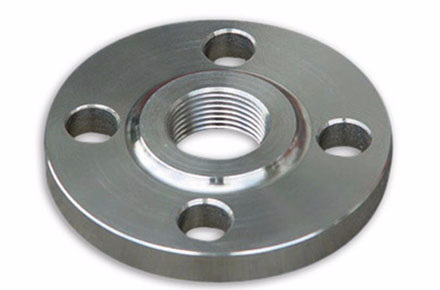

Reducing Flanges

Reducing Flanges Manufacturer & Supplier

ASME B 16.5, ASME B 16.47, MSS SP44, ASTM A182, 240, 105, 350, SB564, 160, 472 Reducing Pipe Flanges Manufacturer & Exporter in India

Stainless Steel Reducing Flanges, Carbon Steel Reducing Flanges, Alloy Steel Reducing Flanges, Nickel Alloy Weld Reducing Flanges, Monel Reducing Flanges, Hastelloy Reducing Flanges Dealer in India

Reducing Flanges are uniquely designed flanges that are used to fit together different sized pipes. Hitesh Metal is the prime manufacturer and exporter of Reducing Pipe Flanges in the global market. The Weld Neck Reducing Flange is the best designed butted flange owing to its inherent structural value.

Reducing Flanges
Reducing Flanges

We design and assemble various types of flanges based on our customer’s requirements. The flanges assembled by us cater to all the pressure types. Our Slip-On Reducing Flanges and Threaded Reducing Flanges are manufactured under the expertise of our diligent workforce using supreme quality raw materials. Our Reducing Flanges catalogue consists of varied products essential for the building of construction, oil refineries and engineering industries.

Stainless Steel Reducing Flanges is designed in compliance to the national and international standards of the product. Carbon Steel Reducing Flanges possess exceptional weld-ability and corrosion resistance to climatic factors owing to the superior quality raw materials used in its manufacturing process.

Alloy Steel Reducing Flanges and Nickel Alloy Reducing Flanges offer the simplest and mosteconomical method of mating two differently sized flanges with the additional benefit of high malleability. We also manufacture ANSI Reducing Flanges and ASME Reducing Flanges as per the requirements of our customers. DIN Reducing Flanges is one of our best sellers available in various sizes 4 x 2 reducing flange, 3x2 reducing flange etc. throughout the global market.

The team at Hitesh Metal is here to help you with outstanding levels of customer service. Contact us today for more information and to request a free quote!

Reducing Weld Neck Flange, Reducing Slip on Flange, Reducing Pipe Flange, Reducing Companion Flange, Threaded Reducing Flange Dealer & Exporter

Reducing Flanges Availability:

  • Stainless Steel Reducing Flanges
  • Carbon Steel Reducing Flanges
  • Alloy Steel Reducing Flanges
  • Nickel Alloy Steel Reducing Flanges
  • Copper Alloy Reducing Flanges

Reducing Flanges Specifications:

Size ½" (15 NB) to 48" (1200NB)
Class 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Standards ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S BS4504 , BS4504, BS1560, BS10

Grade specifications of Reducing Flanges

Stainless Steel Reducing Face Flanges
ASTM A 182, A 240, F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L.
Carbon Steel Reducing Face Flanges
ASTM A 105, ASTM A 181
Alloy Steel Reducing Face Flanges
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Nickel Alloy Steel Reducing Face Flanges
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).
Copper Alloy Reducing Face Flanges
Copper, Brass & Gunmetal

Reducing Flange Dimensions

Nominal Size Type Ø A D Liner
Thickness
DN1 DN2
In. In.   mm mm mm
3/4" 1/2" 1 98.5 30 5.0
1" 1/2" 1 108 30 5.0
1" 3/4" 1 108 30 5.0
1.1/2" 1/2" 1 127 30 5.0
1.1/2" 3/4" 1 127 30 5.0
1.1/2" 1" 1 127 30 5.0
2" 1/2" 3 152 30 5.0
2" 3/4" 2 152 30 5.0
2" 1" 2 152 30 5.0
2" 1.1/2" 1 152 30 5.0
3" 3/4" 3 190.5 35 5.0
3" 1" 3 190.5 35 5.0
3" 1.1/2" 2 190.5 35 5.0
3" 2" 1 190.5 35 5.0
4" 3/4" 3 228.6 35 5.0
4" 1" 3 228.6 35 5.0
4" 1.1/2" 3 228.6 35 5.0
4" 2" 3 228.6 35 5.0
4" 3" 2 228.6 35 5.0
6" 3/4" 3 280 40 5.0
6" 1" 3 280 40 5.0
6" 1.1/2" 3 280 40 5.0
6" 2" 3 280 40 5.0
6" 3" 3 280 40 5.0
6" 4" 2 280 40 5.0
8" 1" 3 343 35 5.0
8" 1.1/2" 3 343 35 5.0
8" 2" 3 343 40 5.0
8" 3" 3 343 40 5.0
8" 4" 3 343 40 5.0
8" 6" 2 343 40 5.0
10" 1" 3 406 35 2.5
10" 1.1/2" 3 406 35 2.5
10" 2" 3 406 35 2.5
10" 3" 3 406 35 2.5
10" 4" 3 406 35 2.5
10" 6" 3 406 35 2.5
10" 8" 2 406 35 3.5
12" 1" 3 483 35  3.5
12" 1.1/2" 3 483 35  3.5
12" 2" 3 483 35  3.5
12" 3" 3 483 35  3.5
12" 4" 3 483 35  3.5
12" 6" 3 483 35  3.5
12" 8" 3 483 35  3.5
12" 10" 2 483 35  3.5
14" 12" 1 533 40 3.5
16" 12" 3 597 40 3.5
 16" 14" 2 597 35 3.5

Types of Reducing Flanges

  • Industry Standard Class 75 Reducing Flanges
  • Industry Standard Class 150 Reducing Flanges
  • Industry Standard Class 175 Reducing Flanges
  • Industry Standard Class 250 Reducing Flanges
  • Industry Standard Class 300 Reducing Flanges
  • Industry Standard Class 350 Reducing Flanges
  • Plate Reducing Flanges
  • Ring Type Joint Reducing Flanges
  • Drawing Reducing Flanges
  • Square Reducing Flanges
  • Nipo Reducing Flanges
  • Reducing Reducing Flanges
  • Forged Reducing Flanges
  • Stainless Steel Reducing Flanges
  • Industry Standard Class 125 Light-weight Reducing Flanges
  • Industry Standard Class 125/150 Reducing Flanges

Other Standards of Reducing Flanges

  • ANSI B16.5 Reducing Flanges
  • ANSI B16.5 Class 150 Reducing Flanges
  • ANSI B16.5 Class 300 Reducing Flanges
  • ANSI B16.5 Class 400 Reducing Flanges
  • ANSI B16.5 Class 600 Reducing Flanges
  • ANSI B16.5 Class 900 Reducing Flanges
  • ANSI B16.5 Class 1500 Reducing Flanges
  • ANSI B16.5 Class 2500 Reducing Flanges
  • ASME B16.47 Series A Reducing Flanges
  • ASME B16.47 Series B Reducing Flanges
  • ANSI B16.36 Reducing Reducing Flanges
  • 150Lbs Reducing Flanges
  • 300Lbs Reducing Flanges
  • 600Lbs Reducing Flanges
  • 900Lbs Reducing Flanges
  • 1500Lbs Reducing Flanges
  • 2500Lbs Reducing Flanges
  • DIN Reducing Flanges PN6-PN40

For Reducing Flanges price list as on :

Request the latest Reducing Flanges Price List. Use the contact button below for Reducing Flanges Ready stock information and updated price list.

Call +91-9619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

Reducing Flanges Applications

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry
