Stainless Steel 180 Degree Short Radius Elbow, Carbon Steel 180 Degree Short Radius Elbow Fittings, Nickel Alloy 180 Degree Short Radius Elbows, Alloy Steel 180 Degree Short Radius Elbow Buttweld Fittings Manufacturer & Exporter

ASME/ANSI B16.9, MSS-SP-43 180 Degree Short Radius Elbow, ANSI B16.28 180 Degree SR Elbow Pipe Fittings Dealer & Exporter in India

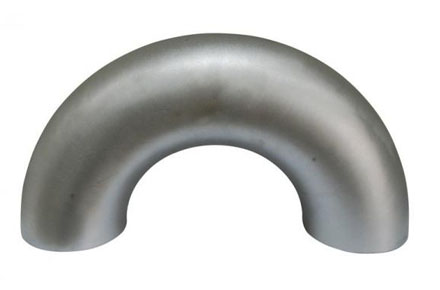

Hitesh Metal is the foremost manufacturer and supplier of 180 Degree Short Radius Elbow. 180 Deg Short Radius Elbow consists of semi-circle point of force along a pipe that changes the direction of the flow of the content of the pipe through a 180-degree angle. 180 Degree SR Elbow is usually used in a long range of applications, across a wide area and larger application. Hitesh Metal is one of the prime exporters of 180 Degree Short Radius Reducing Elbow and ANSI B16.9 180 Deg Short Radius Elbow.

We process products according to the requirements of our customer’s requirements in various sizes and specifications. We even supply these products at very economical and affordable prices to our customers. This Buttweld 180 Degree Short Radius Elbows is also manufactured by us using supreme quality products. These products consist of a wide utilization in the electrochemical, mechanical, construction and welding industries.

The materials used in the manufacturing process of 180 Degree Short Radius Elbow are precisely chosen by our diligent workforce. Stainless Steel 180 Degree Short Radius Elbow and Carbon Steel 180 Deg Short Radius Elbow are our prime best-sellers in the 180 Degree Short Radius Elbow catalogue in the national and international market.

These Alloy Steel 180 Degree Short Radius Elbow and ASME B16.9 180 Deg Short Radius Elbows manufactured by us undergo vigorous quality-checks being exported worldwide to ensure comprehensive customer satisfaction. Our Aluminium 180 Degree Short Radius Elbow is designed specially to incest properties like unprecedented high withstanding resistance towards corrosion caused due to liquids, hardness and temperature fluctuation resistance.

We assure you with the best in class products and services to the customers. Contact us today for your specific needs!

Monel 400 / K500 180 Deg Short Radius Elbow, Inconel 200 / 201 180 Deg Short Radius Elbow Fittings, Hastelloy C22 / C276 180 Deg Short Radius Elbows, Duplex Steel S31803 180 Deg Short Radius Elbow Pipe Fittings Dealer & Stockists

180 Degree Short Radius Elbow Buttweld Fitting Specifications:

Standards	ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule	Sch 5 TO Sch XXS.
Sizes	1/2"NB TO 48"NB IN / Diameters – from 21,3 to 711 mm, Wall Thickness – from 2 to 40 mm
Materials	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type	Butt Weld (BW) / Welded / ERW / Fabricated
Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

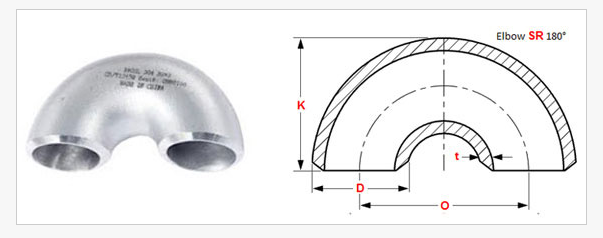

180 Degree Short Radius Elbow Buttweld Fitting Dimensions

NPS	O.D.D	180 Degree Short Radius
		Center to Center O	Back to Face K
1/2	21.3	-	-
3/4	26.7	-	-
1	33.4	51	41
1¼	42.2	64	52
1½	48.3	76	62
2	60.3	102	81
2½	73	127	100
3	88.9	152	121
3½	101.6	178	140
4	114.3	203	159
5	141.3	254	197
6	168.3	305	237
8	219.1	406	313
10	273	508	391
12	323.8	610	467
14	355.6	711	533
16	406.4	813	610
18	457	914	686
20	508	1016	762
22	559	1118	838
24	610	1219	914

The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld 180 Degree Short Radius Elbow Material & Grades

Stainless Steel Buttweld 180 Degree Short Radius Elbow

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld 180 Degree Short Radius Elbow

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld 180 Degree Short Radius Elbow

ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld 180 Degree Short Radius Elbow

ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld 180 Degree Short Radius Elbow

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld 180 Degree Short Radius Elbow

ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Use the contact button below for 180 Degree Short Radius Elbow Buttweld Fitting Price List and Ready stock information.

180 Degree Short Radius Elbow Buttweld Fitting Applications

Off-Shore Oil Drilling Companies	Power Generation	Petrochemicals	Gas Processing
Specialty Chemicals	Pharmaceuticals	Pharmaceutical Equipment	Chemical Equipment
Sea Water Equipment	Heat Exchangers	Condensers	Pulp & Paper Industry

180 Degree Short Radius Elbow Buttweld Fitting Manufacturer & Supplier
