Stainless Steel Equal Tee, Carbon Steel Equal Tee Fittings, Nickel Alloy Equal Tees, Alloy Steel Equal Tee Pipe Fittings Manufacturer & Exporter

ASME / ANSI B 16.9 Equal Tee Buttweld Fittings, ASTM A403 SS Equal Tees, ANSI B16.28 Equal Tee Pipe Fittings Suppliers & Dealers in India

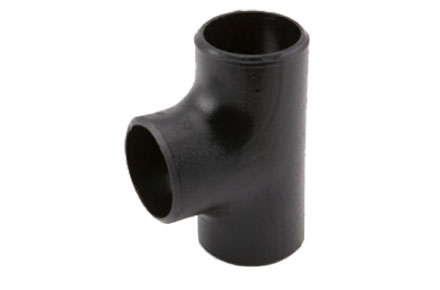

Hitesh Metal is a quality Equal Tee Manufacturer, based in India. These Equal tees are “T” shaped pipe fittings used to manage the direction of the flow of fluids through them. The flow of the fluid can be branched out at a 90° angle with the help of a buttweld equal tee. When the dimensions of all of the outlets of the “T” are standard they are called Equal tees.

We are one of the leading Equal Tee Supplier providing high quality ANSI B 16.9 Equal tees. Our products are forged which ensure consistent appearance and the metal flow is complete. Forged equal tee fittings ensure good mechanical properties and long service life. We can also supply socket weld equal tees which are used for smaller sized pipes if required.

We supply Stainless Steel Equal Tees, carbon steel equal tees and alloy steel equal tees to power generation, petrochemical, shipbuilding, paper manufacturing, chemical and pharmaceutical industries. These stainless steel buttweld fittings are available in various sizes to meet our customers’ needs. At Hitesh Metal we also supply equal tees as per your individual requirements.

We can also supply titanium equal tees, Monel equal tees and ASME B 16.9 Equal Tees which are manufactured using highest quality of raw materials to give our esteemed clients the best equal tees they deserve at the most affordable prices.

Our nickel equal tees or Cupro Nickel Equal Tees and Hastelloy equal tees possess excellent mechanical strength, especially at high temperatures, and are highly resistant to corrosion and oxidation. Our experienced fabricators can deliver to your exact specifications.

With the years of experience in international market and an in-depth understanding of the industry, we are capable to provide our customers with best possible solutions to meet their various requirements. Contact us and we assure you delivery of quality products that meet national and international standards.

Monel 400 / K500 Equal Tee, Inconel 200 / 201 Equal Tee Fittings, Hastelloy C22 / C276 Equal Tees, Duplex Steel S31803 Equal Tee Pipe Fittings Dealer & Stockists

Equal Tee Buttweld Fitting Specifications:

Standards	ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule	Sch 5 TO Sch XXS.
Sizes	1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” )
Materials	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type	Butt Weld (BW) / Seamless / Welded / ERW / Fabricated
Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension	Outside diameter : 1/2" à 24", (21,34 – 609,5 mm), Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS, (1,65 – 59.51 mm)
Variations	Welded & Seamless

Equal Tee Buttweld Fitting Dimensions

Nominal Pipe Size	Outside diameter at bevel	Center-to-End
		Run (C)	Outlet(M)
1/2"	21.3	25	25
3/4"	26.7	29	29
1"	33.4	38	38
1 1/4"	42.2	48	48
1 1/2"	48.3	57	57
2"	60.3	64	64
2 1/2"	73.0	76	76
3"	88.9	86	86
3 1/2"	101.6	95	95
4"	114.3	105	105
5"	141.3	124	124
6"	168.3	143	143
8"	219.1	178	178
10"	273.0	216	216
12"	323.8	254	254
14"	355.6	279	279
16"	406.4	305	305
18"	457.0	343	343
20"	508.0	381	381
22"	559.0	419	419
24"	610.0	432	432

The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld Equal Tee Material & Grades

Stainless Steel Buttweld Equal Tee

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld Equal Tee

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld Equal Tee

ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld Equal Tee

ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld Equal Tee

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld Equal Tee

ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Use the contact button below for Equal Tee Buttweld Fittings Price List and Ready stock information.

Equal Tee Buttweld Fitting Applications

Off-Shore Oil Drilling Companies	Power Generation	Petrochemicals	Gas Processing
Specialty Chemicals	Pharmaceuticals	Pharmaceutical Equipment	Chemical Equipment
Sea Water Equipment	Heat Exchangers	Condensers	Pulp & Paper Industry

Equal Tee Buttweld Fitting Manufacturer & Supplier
