Reducing Cross Buttweld Fitting

Reducing Cross Buttweld Fitting Manufacturer

Stainless Steel Reducing Cross, Carbon Steel Reducing Cross Fittings, Nickel Alloy Reducing Cross, Alloy Steel Reducing Cross Pipe Fittings Manufacturer & Exporter

ASME / ANSI B 16.9 Reducing Cross Buttweld Fittings, ASTM A403 SS Reducing Cross, ANSI B16.28 Reducing Cross Pipe Fittings Suppliers & Dealers in India

Hitesh Metal is one of the best Metal Product Supplying and Manufacturing companies, providing high-quality Buttweld Reducing Cross pipe fitting manufacturers. A reducing buttweld cross pipe fitting is used to distribute the flow of a fluid in 3 different directions. One being the inlet and the other 3 pipe connections are outlets in different directions. It is in the shape of a “+”. When the size of the branches is not equal or symmetrical then it is called a reducing cross pipe fitting. This type of fitting can be used when an equal distribution of fluid is not needed and the branch pipe sizes are not the same.

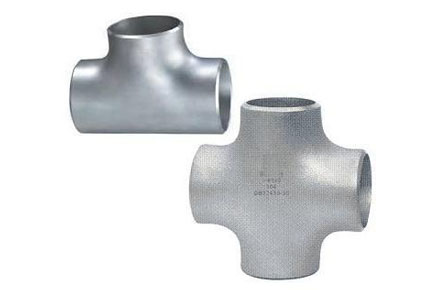

Reducing Cross Buttweld Fitting
Reducing Cross Buttweld Fitting

We stock Male Reducing Cross pipe fittings, Female Reducing Cross Pipe fittings for their varied uses. Our high standard ANSI B16.9 Reducing Cross Fittings, hydraulic Reducing Cross fittings and Forged Reducing Cross fittings are in high demand due to their consistent quality. They are preferred as they help a seamless flow of fluid.  These Buttweld Reducing Cross Fittings ensure a smooth flow as there are no pockets or sharp edges which would otherwise reduce the pressure of the flow. Our Stainless Steel Reducing Cross Pipe Fittings are highly reliable and a guaranteed product.

The Carbon Steel Reducing Cross are very durable due to their chemical properties. They have an excellent finish and are corrosion resistant which is appreciated by our clients. Alloy Steel Reducing Cross, Titanium Reducing Cross and Monel Reducing Crosses are high temperature and high pressure resistant products. The ASME B16.9 Reducing Cross, Nickel Reducing Cross, Cupronickel Reducing Cross and Hastelloy Reducing Cross pipe fittings are made with the highest quality raw materials. These are high heat resistant and durable products. All of our products are available in standard sizes and also are customisable.

Hitesh Metal is a quality Buttweld Reducing Cross supplier. Contact us today to give us a chance to provide you with the best quality products at affordable prices.

Monel 400 / K500 Reducing Cross, Inconel 200 / 201 Reducing Cross Fittings, Hastelloy C22 / C276 Reducing Cross, Duplex Steel S31803 Reducing Cross Pipe Fittings Dealer & Stockists

Reducing Cross Buttweld Fitting Availability:

  • Butt Weld Reducing Tee Buttweld Fitting
  • Straight Cross Buttweld Fitting
  • Reducing Cross Buttweld Fitting

Reducing Cross Buttweld Fitting Specifications:

Standards ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule Sch 5 TO Sch XXS.
Sizes 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” )
Materials Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type Butt Weld (BW) - straight cross, reducing cross
Thickness Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Reducing Cross Buttweld Fitting Dimensions

 Reducing Cross Buttweld Fitting Dimensions
Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
15×15 1/2×1/2 21.3 18 21.3 18 25 25
15×10 1/2×3/8 21.3 18 17.3 14 25 25
15×8 1/2×1/4 21.3 18 13.7 10 25 25
20×20 3/4×3/4 26.9 25 26.9 25 29 29
20×15 3/4×1/2 26.9 25 21.3 18 29 29
20×10 3/4×3/8 26.9 25 17.3 14 29 29
25×25 1×1 33.7 32 33.7 32 38 38
25×20 1×3/4 33.7 32 26.9 25 38 38
25×15 1×1/2 33.7 32 21.3 18 38 38
32×32 1.1/4×1.1/4 42.4 38 42.4 38 48 48
32×25 1.1/4×1 42.4 38 33.7 32 48 48
32×20 1.1/4×3/4 42.4 38 26.9 25 48 48
32×15 1.1/4×1/2 42.4 38 21.3 18 48 48
40×40 1.1/2×1.1/2 48.3 45 48.3 45 57 57
40×32 1.1/2×1.1/4 48.3 45 42.4 38 57 57
40×25 1.1/2×1 48.3 45 33.7 32 57 57
40×20 1.1/2×3/4 48.3 45 26.9 25 57 57
40×15 1.1/2×1/2 48.3 45 21.3 18 57 57
50×50 2×2 60.3 57 60.3 57 64 64
50×40 2×1.1/2 60.3 57 48.3 45 64 60
50×32 2×1.1/4 60.3 57 42.4 38 64 57
50×25 2×1 60.3 57 33.7 32 64 51
50×20 2×3/4 60.3 57 26.9 25 64 44
65×65 2/1/2×2.1/2 73.0 76 73.0 76 76 76
65×50 2/1/2×2 73.0 76 60.3 57 76 70
65×40 2/1/2×1.1/2 73.0 76 48.3 45 76 67
65×32 2/1/2×1.1/4 73.0 76 42.4 38 76 64
65×25 2/1/2×1 73.0 76 33.7 32 76 57
80×80 3×3 88.9 89 88.9 89 86 86
80×65 3×2.1/2 88.9 89 73.0 76 86 83
80×50 3×2 88.9 89 60.3 57 86 76
80×40 3×1.1/2 88.9 89 48.3 45 86 73
80×32 3×1.1/4 88.9 89 42.4 38 86 70
90×90 3.1/2×3.1/2 101.6 - 101.6 - 95 95
90×80 3.1/2×3 101.6 - 88.9 89 95 92
90×65 3.1/2×2.1/2 101.6 - 73.0 76 95 89
90×50 3.1/2×2 101.6 - 60.3 57 95 83
90×40 3.1/2×1.1/2 101.6 - 48.3 45 95 79
100×100 4×4 114.3 108 114.3 108 105 105
100×90 4×3.1/2 114.3 108 101.6 - 105 102
100×80 4×3 114.3 108 88.9 89 105 98
100×65 4×2.1/2 114.3 108 73.0 76 105 95
100×50 4×2 114.3 108 60.3 57 105 89
100×40 4×1.1/2 114.3 108 48.3 45 105 86
125×125 5×5 141.3 133 141.3 133 124 124
125×100 5×4 141.3 133 114.3 108 124 117
125×90 5×3.1/2 141.3 - 101.6 - 124 114
125×80 5×3 141.3 133 88.9 89 124 111
125×65 5×2.1.2 141.3 133 73.0 76 124 108
125×50 5×2 141.3 133 60.3 57 124 105
150×150 6×6 168.3 159 168.3 159 143 143
150×125 6×5 168.3 159 141.3 133 143 137
150×100 6×4 168.3 159 114.3 108 143 130
150×90 6×3.1/2 168.3 - 101.6 - 143 127
150×80 6×3 168.3 159 88.9 89 143 124
150×65 6×2.1/2 168.3 159 73.0 76 143 121
200×200 8×8 219.1 219 219.1 219 178 178
200×150 8×6 219.1 219 168.3 159 178 168
200×125 8×5 219.1 219 141.4 133 178 162
200×100 8×4 219.1 219 114.3 108 178 156
200×90 8×3.1/2 219.1 - 101.6 - 178 152
250×250 10×10 273.0 273 273.0 273 216 216
250×200 10×8 273.0 273 219.1 219 216 203
250×150 10×6 273.0 273 168.3 159 216 194
250×125 10×5 273.0 273 141.3 133 216 191
250×100 10×4 273.0 273 114.3 108 216 184
300×300 12×12 323.9 325 323.9 325 254 254
300×250 12×10 323.9 325 273.0 273 254 241
300×200 12×8 323.9 325 219.1 219 254 229
300×150 12×6 323.9 325 168.3 159 254 219
300×125 12×5 323.9 325 141.3 133 254 216
350×350 14×14 355.6 377 355.6 377 279 279
350×300 14×12 355.6 377 323.9 325 279 270
350×250 14×10 355.6 377 273.0 273 279 257
350×200 14×8 355.6 377 219.1 219 279 248
350×150 14×6 355.6 377 168.3 159 279 238
400×400 16×16 406.4 426 406.4 426 305 305
400×350 16×14 406.4 426 355.6 377 305 305
400×300 16×12 406.4 426 323.9 325 305 295
400×250 16×10 406.4 426 273.0 273 305 283
400×200 16×8 406.4 426 219.1 219 305 273
400×150 16×6 406.4 426 168.3 159 305 264
450×450 18×18 457 480 457 480 343 343
450×400 18×16 457 480 406.4 426 343 330
450×350 18×14 457 480 355.6 377 343 330
450×300 18×12 457 480 323.9 325 343 321
450×250 18×10 457 480 273.0 273 343 308
450×200 18×8 457 480 219.1 219 343 298
500×500 20×20 508 530 508 530 381 381
500×450 20×20 508 530 457 480 381 368
500×400 20×20 508 530 406.4 426 381 356
500×350 20×20 508 530 355.6 377 381 356
500×300 20×20 508 530 323.9 325 381 346
500×250 20×20 508 530 273.0 273 381 333
500×200 20×20 508 530 219.1 219 381 324
The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld Reducing Cross Material & Grades

Stainless Steel Buttweld Reducing Cross
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld Reducing Cross
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld Reducing Cross
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld Reducing Cross
ASTM A420 WPL3, A420 WPL6
Alloy Steel Buttweld Reducing Cross
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld Reducing Cross
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Types of Reducing Cross Buttweld Fitting

  • Buttweld Unequal Cross
  • Butt Weld Reducing Cross
  • 201 Stainless Steel Unequal Cross
  • 202 Stainless Steel Unequal Cross
  • 304 Stainless Steel Unequal Cross
  • 304L Stainless Steel Unequal Cross
  • 316TI Stainless Steel Unequal Cross
  • 316H Stainless Steel Unequal Cross
  • 316L Stainless Steel Unequal Cross
  • 316LN Stainless Steel Unequal Cross
  • 317 Stainless Steel Unequal Cross
  • 317L Stainless Steel Unequal Cross
  • 321 Stainless Steel Unequal Cross
  • Duplex Steel Unequal Cross
  • 347H Stainless Steel Unequal Cross
  • 904L Stainless Steel Unequal Cross
  • 321H Stainless Steel Unequal Cross
  • 347 Stainless Steel Unequal Cross
  • Stainless Steel Buttweld Unequal Cross
  • Duplex Stainless Steel Unequal Cross
  • 304H Stainless Steel Unequal Cross
  • 309S Stainless Steel Unequal Cross
  • 310S Stainless Steel Unequal Cross
  • 310H Stainless Steel Unequal Cross
  • 316 Stainless Steel Unequal Cross
  • Alloy Steel Buttweld Unequal Cross
  • Stainless Steel Unequal Cross
  • Carbon Steel Unequal Cross
  • Alloy Steel Unequal Cross
  • Carbon Steel Buttweld Unequal Cross
  • 309H Stainless Steel Unequal Cross
  • Super Duplex Unequal Cross
  • Steel Reducing Cross Pipe Fittings
  • Stainless Steel Unequal Cross Suppliers
  • SS Unequal Cross
  • Welded Butt weld Unequal Cross Stockholder
  • Seamless Butt weld Unequal Cross Distributors
  • Carbon Steel Reducing Cross
  • High Quality Unequal Cross Manufacturer
  • Duplex Steel Buttweld Reducing Cross
  • Super Duplex Steel Buttweld Reducing Cross
  • Copper Nickel Unequal Cross
  • High Nickel Alloy Unequal Cross
  • Hastelloy Pipe Cross Stockist
  • Titanium Buttweld Reducing Cross
  • Inconel Butt weld Reducing Cross

Reducing Cross Buttweld Fitting Available Standards

  • ASTM A403 Unequal Cross
  • ASTM A234 WPB Unequal Cross
  • ASTM A694 Unequal Cross
  • ASTM A860 WPHY 52 Unequal Cross
  • ASTM A860 WPHY 56 Unequal Cross
  • ASTM A860 WPHY 60 Unequal Cross
  • ASTM A860 WPHY 65 Unequal Cross
  • ASTM A860 WPHY 70 Unequal Cross
  • ASTM A234 Unequal Cross
  • ASTM A234 Alloy Steel Unequal Cross
  • ASTM A420 WPL6 Unequal Cross
  • ASTM A860 WPHY 42 Unequal Cross
  • ASTM A420 WPL3 Unequal Cross
  • ASTM A234 WP12 Unequal Cross
  • ASTM A234 WP11 Unequal Cross
  • ASTM A234 WP22 Unequal Cross
  • ASTM A234 WP5 Unequal Cross
  • ASTM A234 WP9 Unequal Cross
  • ASTM A234 WP91 Unequal Cross
  • ASTM A403 Stainless Steel Unequal Cross

Other Standards of Reducing Cross Buttweld Fitting

  • ASME B16.9 Butt weld Unequal Cross
  • DIN 1.4961 Unequal Cross
  • DIN 1.4840 Unequal Cross
  • DIN 1.4845 Unequal Cross
  • DIN 1.4449 Unequal Cross
  • DIN 1.4438 Unequal Cross
  • DIN 1.4841 Unequal Cross
  • ASME B16.9 Unequal Cross
  • ASME B16.25 Unequal Cross
  • MSS SP-75 Unequal Cross
  • SCH10 Unequal Cross
  • SCH20 Unequal Cross
  • SCH30 Unequal Cross
  • STD SCH40 Unequal Cross
  • DIN 1.4305 Unequal Cross
  • DIN 1.4301 Unequal Cross
  • DIN 1.4307 Unequal Cross
  • DIN 1.4948 Unequal Cross
  • DIN 1.4401 Unequal Cross
  • DIN 1.4404 Unequal Cross
  • DIN 1.4919 Unequal Cross
  • DIN 1.4571 Unequal Cross
  • DIN 1.4541 Unequal Cross
  • DIN 1.4878 Unequal Cross
  • UNS S32900 Unequal Cross
  • UNS S34700 Unequal Cross
  • UNS S34709 Unequal Cross
  • UNS S31000 Unequal Cross
  • UNS S31008 Unequal Cross
  • UNS S31700 Unequal Cross
  • UNS S31703 Unequal Cross
  • UNS S31400 Unequal Cross
  • SCH60 Unequal Cross
  • SCH XS Unequal Cross
  • SCH80. Unequal Cross
  • DIN 2605 Unequal Cross
  • DIN 2609 Unequal Cross
  • DIN 2617 Unequal Cross
  • EN 10253-3 Unequal Cross
  • A403 Gr WP304 Unequal Cross
  • A403 Gr WP 304L Unequal Cross
  • UNS N08904 Unequal Cross
  • UNS S17400 Unequal Cross
  • A403 Gr WP316Ti Unequal Cross
  • UNS S32109 Unequal Cross
  • A403 Gr WP321 Unequal Cross
  • A403 Gr WP321H Unequal Cross
  • A403 Gr WP347 Unequal Cross
  • A403 Gr WP347H Unequal Cross
  • A403 Gr WP317 Unequal Cross
  • A403 Gr WP 317L Unequal Cross
  • A234WPC Unequal Cross
  • A420 WPL6 Unequal Cross
  • UNS S30300 Unequal Cross
  • UNS S30400 Unequal Cross
  • UNS S30403 Unequal Cross
  • UNS S30409 Unequal Cross
  • UNS S31600 Unequal Cross
  • UNS S31603 Unequal Cross
  • UNS S31609 Unequal Cross
  • DIN 1.4460 Unequal Cross
  • DIN 1.4550 Unequal Cross
  • DIN 1.4006 Unequal Cross
  • DIN 1.4005 Unequal Cross
  • DIN 1.4021 Unequal Cross
  • DIN 1.4016 Unequal Cross
  • UNS S31635 Unequal Cross
  • UNS S32100 Unequal Cross
  • UNS S13800 Unequal Cross
  • UNS S66286 Unequal Cross
  • UNS S66286 Unequal Cross
  • UNS S20910 Unequal Cross
  • UNS S21800 Unequal Cross
  • SCH160 Unequal Cross
  • DIN 2615 Unequal Cross
  • DIN 2616 Unequal Cross
  • UNS S43020 Unequal Cross
  • UNS S43100 Unequal Cross
  • UNS S44004 Unequal Cross
  • UNS S41000 Unequal Cross
  • UNS S41600 Unequal Cross
  • UNS S42000 Unequal Cross
  • A403 Gr WP316 Unequal Cross
  • A403 Gr WP316L Unequal Cross
  • UNS S43000 Unequal Cross
  • UNS S44600 Unequal Cross
  • UNS S44200 Unequal Cross
  • UNS S15500 Unequal Cross
  • DIN 1.4104 Unequal Cross
  • DIN 1.4057 Unequal Cross
  • DIN 1.4125 Unequal Cross
  • DIN 1.4762 Unequal Cross
  • DIN 1.4742 Unequal Cross
  • DIN 1.4539 Unequal Cross
  • DIN 1.4542 Unequal Cross
  • DIN 1.4545 Unequal Cross
  • DIN 1.4534 Unequal Cross
  • DIN 1.4980 Unequal Cross
  • SCH100 Unequal Cross
  • SCH120 Unequal Cross
  • SCH140 Unequal Cross
  • EN 10253-1 Unequal Cross
  • ANSI B16.9 Buttweld Reducing Cross Dealer
  • ASME B16.28 Buttweld Pipe Cross Exporter
  • EN 10253-2 Unequal Cross
  • SCH XXS Unequal Cross
  • A234 AISI 4130 High Strength Low Alloyed Steel Unequal Cross
  • Use the contact button below for Reducing Cross Buttweld Fittings Price List and Ready stock information.

    Call +91-9619557302 OR

    Email us at hiteshmetal@yahoo.com for quick response

    Reducing Cross Buttweld Fitting Applications

    Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
    Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
    Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

    Reducing Cross Buttweld Fitting Manufacturer & Supplier


    Iran, Argentina, Colombia, Mexico, Africa, Houston, Brazil, Tunisia, Kazakhstan, Vietnam, London, Trinidad and Tobago, Kuwait, Canada, Iraq, Sudan, Israel, Azerbaijan, Turkey, Egypt, Australia, Dubai, Chine, United States, Italy, Saudi Arabia, UAE, Malaysia, Sri Lanka, Nigeria, South Africa, Peru, Indonesia, UK, Germany, Bahrain, New Zealand, Thailand (Bangkok), Jordan, Russia, Venezuela, Ethiopa, Ghana, Uganda, Cameroon, Algeria, Morocco, Mozambique, Angola, Qatar, Yemen, Oman, Lebanon, Cyprus, Johannesburg, Brazzaville, Cairo, Maputo, Lagos, Douala, Tripoli, Mogadishu, Khartoum, Port Harcourt, Antananarivo, Port Elizabeth, Kano, New York, Abu Dhabi, Dar es Salaam, Benin, Kampala, Luanda, Conakry, Rabat, Bulawayo, Cape Town, Alexandria, Fez, Ouagadougou, Mbuji-Mayi, Soweto, Singapore, Dakar, Omdurman, Hong Kong, Zaria, Lubumbashi, Kinshasa, Harare, Abidjan, Yaoundé, Addis Ababa, Giza, Algiers, Accra, Colombo, Kaduna, Maiduguri, Nairobi, Casablanca, Pretoria, Kolwezi, Subra al-Haymah, Durban, Freetown, Bamako, Ibadan, South America, Austalia, Austria, Bangladesh, Mozabique, Myanmar, Netherland, Phillipine, Spain, Jordon.
    Bangalore, Hyderabad, Ahmedabad, Chennai, Suryapet, Jamalpur, Bhiwadi, Ballia, Ambala, Sadar, Udgir, Miryalaguda, Bansberia, Mumbai, India, Maharashtra, Delhi, Karnataka, Andhra Pradesh, Kerala, Tripura, Benin, Puducherry, Mizoram, Manipur, Tadepalligudem, Betul, Nagapattinam, Bundi, Baraut, Buxar, Muktsar, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri and Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Gujarat, Tamil Nadu, West Bengal, Gujarat, Bihar, Rajasthan, Uttar Pradesh, Punjab, Haryana, Madhya Pradesh, Jharkhand, Chhattisgarh, Assam, Chandigarh, Orissa, Kalyan, Dombivali, Vasai, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Bhadreswar, Kasganj, Kalyani, Nagaur, Port, Blair, Datia, Hinganghat, Banswara, Nagda, Raipur, Kota, Guwahati, Solapur, Hubli and Dharwad, Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Ulhasnagar, Jhansi, Kolapur, Ajmer, Akola, Durgapur, Nanded, Gorakhpur, Belgaum, Mangalore, Ambattur, Tirunelveli, Saharanpur, Guntur, Bikaner, Amravati, Kurnool, Bhavnagar, Dehradun, Asansol, Waghala, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri.
    REQUEST A QUOTE
    Whatsapp
    Phone
