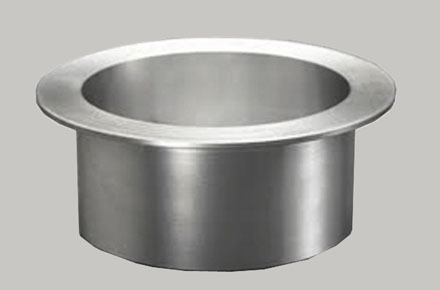

A Stub End fitting is a short length of pipe with one flared end and the other end needing to be welded to the pipe of the same size. A combination of stub ends and backing flanges is an alternate way of joining pipes compared to the use of standard flanges. The use of stub ends reduces the weight of the flanged joints. The stub ends allow quick disconnection of the particular section involved. Stub ends are installed in pairs and mated together with two lap joint flanges.

These can also be used in high pressure pipelines. The stub ends do not get in contact with the fluid conveyed by the pipeline. Stub ends allow sections of the line to be opened without the need to re-weld. Hitesh Metal is a quality buttweld Stub End Supplier. We have a large inventory of Stainless steel buttweld stub ends, carbon steel stub ends due to the high customer demand. We can also provide custom stub end fittings.

Our high standard ANSI B16.9 Stub end Fittings are in demand due to their consistent quality. Our Stainless Steel Stub end pipe fittings are highly reliable and a guaranteed product.

The Carbon Steel Stub end pipe fittings are very durable due to their chemical properties. They have an excellent finish and are corrosion resistant which is appreciated by our clients. Alloy Steel Stub ends, Titanium Stub ends and Monel Stub ends are high temperature and high pressure resistant products. The ASME B16.9 Stub Ends, Nickel Stub End, Copper Alloy Stub End and Duplex Steel buttweld Stub End pipe fittings are made with the highest quality raw materials. These are high heat resistant and durable products. All of our products are available in standard sizes and are also customisable.

At Hitesh Metal, we fabricate Buttweld Stub Ends in different sizes and designs which can be customised. Contact us and we assure you a speedy delivery of best in class products that meet your specific needs and demands. We guarantee you the best quality products at affordable rates.

Monel 400 / K500 Stub End, Inconel 200 / 201 Stub End Fittings, Hastelloy C22 / C276 Stub End, Duplex Steel S31803 Stub End Buttweld Fittings Dealer & Stockists

Stub End Buttweld Fitting Specifications:

Standards	ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule	Sch 5 TO Sch XXS.
Sizes	1/2" (15 NB) to 48" (1200NB), Outside diameter : 1/2" à 24" (21,34 – 609,5 mm), Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS (1,65 – 59.51 mm)
Materials	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type	Butt Weld (BW) / Seamless / ERW / Welded / Fabricated
Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
Variations	Welded & Seamless, MSS-A; MSS-B; MSS-C, type & Long type

Stub End Buttweld Fitting Dimensions

Nominal Pipe Size	Outside diameter of barrel		Length (F)		Radius (R)	Diameter (G)
	Minimum	Maximum	Long Pattern	Short Pattern
1/2"	20.5	22.8	76	51	3	35
3/4"	25.9	28.1	76	51	3	43
1"	32.6	35.0	102	51	3	51
1 1/4"	41.4	43.6	102	51	5	64
1 1/2"	47.5	49.9	102	51	6	74
2"	59.5	62.4	152	64	8	92
2 1/2"	72.2	75.3	152	64	8	105
3"	88.1	91.3	152	64	10	127
3 1/2"	100.8	104.0	152	76	10	140
4"	113.5	116.7	152	76	11	157
5"	140.5	144.3	203	76	11	186
6"	167.5	171.3	203	89	13	216
8"	218.3	222.1	203	102	13	270
10"	272.3	277.2	254	127	13	324
12"	323.1	328.0	254	152	13	381
14"	354.8	359.9	305	152	13	413
16"	405.6	411.0	305	152	13	470
18"	456.0	462.0	305	152	13	533
20"	507.0	514.0	305	152	13	584
22"	558.0	565.0	305	152	13	641
24"	609.0	616.0	305	152	13	692

The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld Stub End Material & Grades

Stainless Steel Buttweld Stub End

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld Stub End

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld Stub End

ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld Stub End

ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld Stub End

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld Stub End

ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
