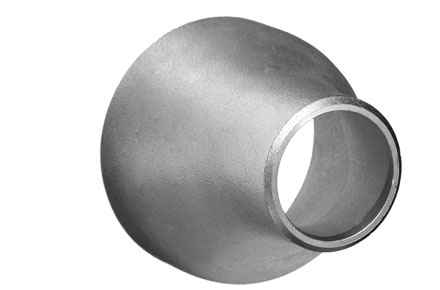

Eccentric Reducer Buttweld Fitting Manufacturer
Stainless Steel Eccentric Reducer, Carbon Steel Eccentric Reducer Fittings, Nickel Alloy Eccentric Reducer, Alloy Steel Eccentric Reducer Pipe Fittings Manufacturer & Exporter
ASME / ANSI B 16.9 Eccentric Reducer Buttweld Fittings, ASTM A403 SS Eccentric Reducer, ANSI B16.28 Eccentric Reducer Pipe Fittings Suppliers & Dealers in India
An Eccentric Reducer fitting is used in the piping system between two pipes of different diameters. These buttweld eccentric reducer fittings are used when one of the pipes carrying a fluid is bigger than the connecting pipe. At Hitesh Metal is a quality Eccentric Reducer Pipe Fitting manufacturer. An eccentric reducer fitting has an edge that is parallel to the connecting pipe. This parallel edge of the reducer fitting results in the two pipes having off centre lines. The same eccentric pipe reducer can be used in the reverse as an eccentric increaser.
It is best to use eccentric pipe reducers for horizontal liquid flow to avoid build up of air in the system. These are used on the suction side of the pump to avoid air accumulation. We supply tri clamp eccentric reducers, grooved eccentric reducers and forged eccentric reducers to cater to your varied business needs. We are a large stainless steel eccentric reducer fitting, carbon eccentric reducer fitting and alloy steel eccentric reducer fitting suppliers.
ANSI B16.9 Eccentric Reducer Fitting, ASME B16.9 Eccentric Reducer fittings are high quality products conforming to international standards. We also fabricate alloy steel eccentric reducer fittings, titanium eccentric reducer fittings and Monel eccentric reducer fittings as per our client’s requirements. These eccentric reducer fittings are widely used for their strength and high resistance to corrosion and heat. Nickel eccentric reducer, Cupro-nickel eccentric reducers and Hastelloy eccentric reducers are very popular with a wide range of customers due excellent mechanical strength. These eccentric reducer fittings are resistant to corrosion and oxidation and also are highly durable.
At Hitesh Metal our experienced staffs monitor each and every process from when the raw materials are procured to the despatch of the finished goods. Contact us for high quality products that meet national and international standards and also your specific requirements.
Monel 400 / K500 Eccentric Reducer, Inconel 200 / 201 Eccentric Reducer Fittings, Hastelloy C22 / C276 Eccentric Reducer, Duplex Steel S31803 Eccentric Reducer Pipe Fittings Dealer & Stockists
Eccentric Reducer Buttweld Fitting Availability:
- Butt Weld Eccentric Reducer Buttweld Fitting
- Seamless Eccentric Reducer Buttweld Fitting
- Welded Eccentric Reducer Buttweld Fitting
- ERW Eccentric Reducer Buttweld Fitting
- Fabricated Eccentric Reducer Buttweld Fitting
Eccentric Reducer Buttweld Fitting Specifications:
Standards | ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
Schedule | Sch 5 TO Sch XXS. |
Sizes | 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” ) |
Materials | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Type | Butt Weld (BW) / Seamless / ERW / Welded / Fabricated |
Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Eccentric Reducer Buttweld Fitting Dimensions
|
|||||
Nominal Diameter | Outside Diameter | End to End | |||
D1*D2 | |||||
DN | NPS | Series A | Series B | H | |
20×15 | 3/4×1/2 | 26.9×21.3 | 25×18 | 38 | |
20×10 | 3/4×3/8 | 26.9×17.3 | 25×14 | 38 | |
25×20 | 1×3/4 | 33.7×26.9 | 32×25 | 51 | |
25×15 | 1×1/2 | 33.7×21.3 | 32×18 | 51 | |
32×25 | 1.1/4×1 | 42.4×33.7 | 38×32 | 51 | |
32×20 | 1.1/4×3/4 | 42.4×26.9 | 38×25 | 51 | |
32×15 | 1.1/4×1/2 | 42.4×21.3 | 38×18 | 51 | |
40×32 | 1.1/2×1.1/4 | 48.3×42.4 | 45×38 | 64 | |
40×25 | 1.1/2×1 | 48.3×33.7 | 45×32 | 64 | |
40×20 | 1.1/2×3/4 | 48.3×26.9 | 45×25 | 64 | |
40×15 | 1.1/2×1/2 | 48.3×21.3 | 45×18 | 64 | |
50×40 | 2×1.1/2 | 60.3×48.3 | 57×45 | 76 | |
50×32 | 2×1.1/4 | 60.3×42.4 | 57×38 | 76 | |
50×25 | 2×1 | 60.3×33.7 | 57×32 | 76 | |
50×20 | 2×3/4 | 60.3×26.9 | 57×25 | 76 | |
65×50 | 2.1/2×2 | 73.0×60.3 | 76×57 | 89 | |
65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 76×45 | 89 | |
65×32 | 2.1/2×1.1/4 | 73.0×42.4 | 76×38 | 89 | |
65×25 | 2.1/2×1 | 73.0×33.7 | 76×32 | 89 | |
80×65 | 3×2.1/2 | 88.9×73.0 | 89×76 | 89 | |
80×50 | 3×2 | 88.9×60.3 | 89×57 | 89 | |
80×40 | 3×1.1/2 | 88.9×48.3 | 89×45 | 89 | |
80×32 | 3×1.1/4 | 88.9×42.4 | 89×38 | 89 | |
90×80 | 3.1/2×3 | 101.6×88.9 | - | 102 | |
90×65 | 3.1/2×2.1/2 | 101.6×73.0 | - | 102 | |
90×50 | 3.1/2×2 | 101.6×60.3 | - | 102 | |
90×40 | 3.1/2×1.1/2 | 101.6×48.3 | - | 102 | |
90×32 | 3.1/2×1.1/4 | 101.6×42.4 | - | 102 | |
100×90 | 4×3.1/2 | 114.3×101.6 | - | 102 | |
100×80 | 4×3 | 114.3×88.9 | 108×89 | 102 | |
100×65 | 4×2.1/2 | 114.3×73.0 | 108×76 | 102 | |
100×50 | 4×2 | 114.3×60.3 | 108×57 | 102 | |
100×40 | 4×1.1/2 | 114.3×48.3 | 108×45 | 102 | |
125×100 | 5×4 | 141.3×114.3 | 133×108 | 127 | |
125×90 | 5×3.1/2 | 141.3×101.6 | - | 127 | |
125×80 | 5×3 | 141.3×88.9 | 133×89 | 127 | |
125×65 | 5×2.1/2 | 141.3×73.0 | 133×76 | 127 | |
125×50 | 5×2 | 141.3×60.3 | 133×57 | 127 | |
150×125 | 6×5 | 168.3×141.3 | 159×133 | 140 | |
150×100 | 6×5 | 168.3×114.3 | 159×108 | 140 | |
150×90 | 6×3.1/2 | 168.3×101.6 | - | 140 | |
150×80 | 6×3 | 168.3×88.9 | 159×89 | 140 | |
150×65 | 6×2.1/2 | 168.3×73.0 | 159×76 | 140 | |
200×150 | 8×6 | 219.1×168.3 | 219×159 | 152 | |
200×125 | 8×5 | 219.1×141.3 | 219×133 | 152 | |
200×100 | 8×4 | 219.1×114.3 | 219×108 | 152 | |
200×90 | 8×3.1/2 | 219.1×101.6 | - | 152 | |
250×200 | 10×8 | 273.0×219.1 | 273×219 | 178 | |
250×150 | 10×6 | 273.0×168.3 | 273×159 | 178 | |
250×125 | 10×5 | 273.0×141.3 | 273×133 | 178 | |
250×100 | 10×4 | 273.0×114.3 | 273×108 | 178 | |
300×250 | 12×10 | 323.9×273.1 | 325×273 | 203 | |
300×200 | 12×8 | 323.9×219.1 | 325×219 | 203 | |
300×150 | 12×6 | 323.9×168.3 | 325×159 | 203 | |
300×125 | 12×5 | 323.9×141.3 | 325×133 | 203 | |
350×300 | 14×12 | 355.6×323.9 | 377×325 | 330 | |
350×250 | 14×10 | 355.6×273.0 | 377×273 | 330 | |
350×200 | 14×8 | 355.6×219.1 | 377×219 | 330 | |
350×150 | 14×6 | 355.6×168.3 | 377×159 | 330 | |
400×350 | 16×14 | 406.4×355.6 | 426×377 | 356 | |
400×300 | 16×12 | 406.4×323.9 | 426×325 | 356 | |
400×250 | 16×10 | 406.4×273.0 | 426×273 | 356 | |
400×200 | 16×8 | 406.4×219.1 | 426×219 | 356 | |
450×400 | 18×16 | 457×406.4 | 478×426 | 381 | |
450×350 | 18×14 | 457×355.6 | 478×377 | 381 | |
450×300 | 18×12 | 457×323.9 | 478×325 | 381 | |
450×250 | 18×10 | 457×273.0 | 478×273 | 381 | |
500×450 | 20×18 | 508×457 | 529×478 | 508 | |
500×400 | 20×16 | 508×406.4 | 529×426 | 508 | |
500×350 | 20×14 | 508×355.6 | 529×377 | 508 | |
500×300 | 20×12 | 508×323.9 | 529×325 | 508 | |
550×500 | 22×20 | 559×508 | - | 508 | |
550×450 | 22×18 | 559×457 | - | 508 | |
550×400 | 22×16 | 559×406.4 | - | 508 | |
550×350 | 22×14 | 559×355.6 | - | 508 | |
600×550 | 24×22 | 610×559 | - | 508 | |
600×500 | 24×20 | 610×508 | 630×529 | 508 | |
600×450 | 24×18 | 610×457 | 630×478 | 508 | |
600×400 | 24×22 | 610×406.4 | 630×426 | 508 | |
650×600 | 26×24 | 660×610 | - | 610 | |
650×550 | 26×22 | 660×559 | - | 610 | |
650×500 | 26×20 | 660×508 | - | 610 | |
650×450 | 26×18 | 660×457 | - | 610 | |
700×650 | 28×26 | 711×660 | - | 610 | |
700×600 | 28×24 | 711×610 | 720×630 | 610 | |
700×550 | 28×22 | 711×559 | - | 610 | |
700×500 | 28×20 | 711×508 | 720×530 | 610 | |
750×700 | 30×28 | 762×711 | - | 610 | |
750×650 | 30×26 | 762×660 | - | 610 | |
750×600 | 30×24 | 762×610 | - | 610 | |
750×550 | 30×22 | 762×559 | - | 610 | |
800×750 | 32×30 | 813×762 | - | 610 | |
800×700 | 32×28 | 813×711 | 820×720 | 610 | |
800×650 | 32×26 | 813×660 | - | 610 | |
800×600 | 32×24 | 813×610 | 820×630 | 610 | |
850×800 | 34×32 | 864×813 | - | 610 | |
850×750 | 34×30 | 864×762 | - | 610 | |
850×700 | 34×28 | 864×711 | - | 610 | |
850×650 | 34×26 | 864×660 | - | 610 | |
900×850 | 36×34 | 914×864 | - | 610 | |
900×800 | 36×32 | 914×813 | 920×820 | 610 | |
900×750 | 36×30 | 914×762 | - | 610 | |
900×700 | 36×28 | 914×711 | 920×720 | 610 | |
950×900 | 38×36 | 965×914 | - | 610 | |
950×850 | 38×34 | 965×864 | - | 610 | |
950×800 | 38×32 | 965×813 | - | 610 | |
950×750 | 38×30 | 965×762 | - | 610 | |
1000×950 | 40×38 | 1016×965 | - | 610 | |
1000×900 | 40×36 | 1016×914 | 1020×920 | 610 | |
1000×850 | 40×34 | 1016×864 | - | 610 | |
1000×800 | 40×32 | 1016×813 | 1020×820 | 610 | |
1050×1000 | 42×40 | 1067×1016 | - | 610 | |
1050×950 | 42×38 | 1067×965 | - | 610 | |
1050×900 | 42×36 | 1067×914 | - | 610 | |
1050×850 | 42×34 | 1067×864 | - | 610 | |
1100×1050 | 44×42 | 1118×1067 | - | 610 | |
1100×1000 | 44×40 | 1118×1016 | 1120×1020 | 610 | |
1100×950 | 44×38 | 1118×965 | - | 610 | |
1100×900 | 44×36 | 1118×914 | 1220×920 | 610 | |
1150×1100 | 46×44 | 1168×1118 | - | 711 | |
1150×1050 | 46×42 | 1168×1067 | - | 711 | |
1150×1000 | 46×40 | 1168×1016 | - | 711 | |
1150×950 | 46×38 | 1168×965 | - | 711 | |
1200×1150 | 48×46 | 1220×1168 | - | 711 | |
1200×1100 | 48×44 | 1220×1118 | 1220×1120 | 711 | |
1200×1050 | 48×42 | 1220×1067 | - | 711 | |
1200×1000 | 48×40 | 1220×1016 | 1220×1020 | 711 |
The dimensions are in millimeters
Source : ASME B16.9 – 2007
Buttweld Eccentric Reducer Material & Grades
Stainless Steel Buttweld Eccentric Reducer |
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Duplex & Super Duplex Steel Buttweld Eccentric Reducer |
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 |
Carbon Steel Buttweld Eccentric Reducer |
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
Low Temperature Carbon Steel Buttweld Eccentric Reducer |
ASTM A420 WPL3, A420 WPL6 |
Alloy Steel Buttweld Eccentric Reducer |
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
Nickel Alloy Buttweld Eccentric Reducer |
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
Types of Eccentric Reducer Buttweld Fitting
- Buttweld Eccentric Reducer
- Butt Weld Pipe Reducers
- ASME B16.9 Butt weld Eccentric Reducer
- 201 Stainless Steel Reducer
- 202 Stainless Steel Reducer
- 304 Stainless Steel Reducer
- 304L Stainless Steel Reducer
- 316TI Stainless Steel Reducer
- 316H Stainless Steel Reducer
- 316L Stainless Steel Reducer
- 316LN Stainless Steel Reducer
- 317 Stainless Steel Reducer
- 317L Stainless Steel Reducer
- 321 Stainless Steel Reducer
- 347H Stainless Steel Reducer
- 904L Stainless Steel Reducer
- 321H Stainless Steel Reducer
- 347 Stainless Steel Reducer
- Stainless Steel Buttweld Reducer
- Duplex Stainless Steel Reducer
- 304H Stainless Steel Reducer
- 309S Stainless Steel Reducer
- 310S Stainless Steel Reducer
- 310H Stainless Steel Reducer
- 316 Stainless Steel Reducer
- Alloy Steel Buttweld Reducer
- Stainless Steel Reducer
- Carbon Steel Reducer
- Alloy Steel Reducer
- Carbon Steel Buttweld Reducer
- 309H Stainless Steel Reducer
- Super Duplex Reducer
- Steel Reducer Pipe Fittings
- Stainless Steel Eccentric Reducer Suppliers
- SS Eccentric Reducers
- Welded Butt weld Eccentric Reducer Stockholder
- Seamless Butt weld Eccentric Reducer Distributors
- Carbon Steel Eccentric Reducer
- High Quality Eccentric Reducer Manufacturer
- Duplex Steel Buttweld Eccentric Reducer
- Super Duplex Steel Buttweld Eccentric Reducer
- Copper Nickel Eccentric Reducer
- High Nickel Alloy Eccentric Reducer
- Hastelloy Eccentric Reducer Stockist
- Titanium Buttweld Eccentric Reducer
- Inconel Butt weld Eccentric Reducer
Eccentric Reducer Buttweld Fitting Available Standards
- ASTM A403 Reducer
- ASTM A234 WPB Reducer
- ASTM A694 Reducer
- ASTM A860 WPHY 52 Reducer
- ASTM A860 WPHY 56 Reducer
- ASTM A860 WPHY 60 Reducer
- ASTM A860 WPHY 65 Reducer
- ASTM A860 WPHY 70 Reducer
- ASTM A234 Reducer
- ASTM A234 Alloy Steel Reducer
- ASTM A420 WPL6 Reducer
- ASTM A860 WPHY 42 Reducer
- ASTM A420 WPL3 Reducer
- ASTM A234 WP12 Reducer
- ASTM A234 WP11 Reducer
- ASTM A234 WP22 Reducer
- ASTM A234 WP5 Reducer
- ASTM A234 WP9 Reducer
- ASTM A234 WP91 Reducer
- ASTM A403 Stainless Steel Eccentric Reducers
Other Standards of Eccentric Reducer Buttweld Fitting
- DIN 1.4961 Reducer
- DIN 1.4840 Reducer
- DIN 1.4845 Reducer
- DIN 1.4449 Reducer
- DIN 1.4438 Reducer
- DIN 1.4841 Reducer
- ASME B16.9 Reducer
- ASME B16.25 Reducer
- MSS SP-75 Reducer
- SCH10 Reducer
- SCH20 Reducer
- SCH30 Reducer
- STD SCH40 Reducer
- DIN 1.4305 Reducer
- DIN 1.4301 Reducer
- DIN 1.4307 Reducer
- DIN 1.4948 Reducer
- DIN 1.4401 Reducer
- DIN 1.4404 Reducer
- DIN 1.4919 Reducer
- DIN 1.4571 Reducer
- DIN 1.4541 Reducer
- DIN 1.4878 Reducer
- UNS S32900 Reducer
- UNS S34700 Reducer
- UNS S34709 Reducer
- UNS S31000 Reducer
- UNS S31008 Reducer
- Duplex Steel Reducer
- UNS S31700 Reducer
- UNS S31703 Reducer
- UNS S31400 Reducer
- SCH60 Reducer
- SCH XS Reducer
- SCH80. Reducer
- DIN 2605 Reducer
- DIN 2609 Reducer
- DIN 2617 Reducer
- EN 10253-3 Reducer
- A403 Gr WP304 Reducer
- A403 Gr WP 304L Reducer
- UNS N08904 Reducer
- UNS S17400 Reducer
- A403 Gr WP316Ti Reducer
- UNS S32109 Reducer
- A403 Gr WP321 Reducer
- A403 Gr WP321H Reducer
- A403 Gr WP347 Reducer
- A403 Gr WP347H Reducer
- A403 Gr WP317 Reducer
- A403 Gr WP 317L Reducer
- A234WPC Reducer
- A420 WPL6 Reducer
- UNS S30300 Reducer
- UNS S30400 Reducer
- UNS S30403 Reducer
- UNS S30409 Reducer
- UNS S31600 Reducer
- UNS S31603 Reducer
- UNS S31609 Reducer
- DIN 1.4460 Reducer
- DIN 1.4550 Reducer
- DIN 1.4006 Reducer
- DIN 1.4005 Reducer
- DIN 1.4021 Reducer
- DIN 1.4016 Reducer
- UNS S31635 Reducer
- UNS S32100 Reducer
- UNS S13800 Reducer
- UNS S66286 Reducer
- UNS S66286 Reducer
- UNS S20910 Reducer
- UNS S21800 Reducer
- SCH160 Reducer
- DIN 2615 Reducer
- DIN 2616 Reducer
- UNS S43020 Reducer
- UNS S43100 Reducer
- UNS S44004 Reducer
- UNS S41000 Reducer
- UNS S41600 Reducer
- UNS S42000 Reducer
- A403 Gr WP316 Reducer
- A403 Gr WP316L Reducer
- UNS S43000 Reducer
- UNS S44600 Reducer
- UNS S44200 Reducer
- UNS S15500 Reducer
- DIN 1.4104 Reducer
- DIN 1.4057 Reducer
- DIN 1.4125 Reducer
- DIN 1.4762 Reducer
- DIN 1.4742 Reducer
- DIN 1.4539 Reducer
- DIN 1.4542 Reducer
- DIN 1.4545 Reducer
- DIN 1.4534 Reducer
- DIN 1.4980 Reducer
- SCH100 Reducer
- SCH120 Reducer
- SCH140 Reducer
- EN 10253-1 Reducer
- ANSI B16.9 Buttweld Eccentric Reducer Dealer
- ASME B16.28 Buttweld Eccentric Pipe Reducers Exporter
- A234 AISI 4130 High Strength Low Alloyed Steel Reducer
- EN 10253-2 Reducer
- SCH XXS Reducer
Use the contact button below for Eccentric Reducer Buttweld Fitting Price List and Ready stock information.
Eccentric Reducer Buttweld Fitting Applications
Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
Eccentric Reducer Buttweld Fitting Manufacturer & Supplier
- Eccentric Reducer Buttweld Fitting manufacturer in india
- Eccentric Reducer Buttweld Fitting supplier in india
- Eccentric Reducer Buttweld Fitting manufacturer in Mumbai
- Eccentric Reducer Buttweld Fitting manufacturer in Pune
- Eccentric Reducer Buttweld Fitting supplier in Chennai
- Eccentric Reducer Buttweld Fitting manufacturer in Hyderabad
