Stainless Steel Equal Cross, Carbon Steel Equal Cross Fittings, Nickel Alloy Equal Cross, Alloy Steel Equal Cross Pipe Fittings Manufacturer & Exporter

ASME / ANSI B 16.9 Equal Cross Buttweld Fittings, ASTM A403 SS Equal Cross, ANSI B16.28 Equal Cross Pipe Fittings Suppliers & Dealers in India

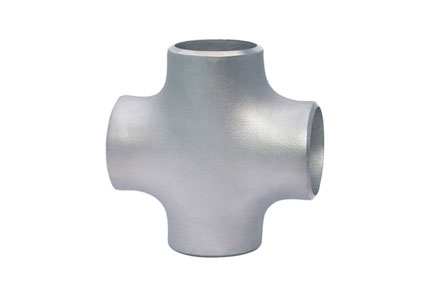

Hitesh Metal is a quality Buttweld Equal Cross pipe fitting manufacturers. An equal cross pipe fittings is used to equally distribute the flow of a fluid in 3 different directions. One will be an inlet and the other 3 pipe connections are outlets in different directions. It is in the shape of a “+”. These types of fittings are used in a number of industries for a better network of fluid supply.

We provide quality ANSI B16.9 Equal Cross fittings, Male Equal Cross fittings and Female Equal Cross fittings as per the clients’ requirements. Our buttweld equal cross fittings ensure smooth and even finishes inside and outside of the product. The Forged Equal Cross is a seamless product which is highly durable as forging ensures no deformities or uneven surfaces.  We also manufacture Hydraulic Equal Cross fittings that are made to withstand high amount of pressure and avoid leakage.

We manufacture quality Stainless Steel Equal Cross fittings, Carbon steel equal Cross fittings which have a very high demand due to the durability and strength they offer. We can also supply alloy steel equal cross, titanium equal cross or Monel equal cross as per the requirements of our clients. These Buttweld Equal Crosses are excellent for their superior finish and leak resistance. The ASME B 16.9 Equal Cross is made using high quality raw materials and of international standards. Our Cupro-Nickel Equal Cross and Nickel Equal cross are recommended for their high corrosion and oxidation resistance. The Hastelloy Equal Cross is also well known for its high heat resistance to be used in numerous industries.  We are well known as quality Buttweld Equal Cross suppliers.

Our Buttweld Equal Cross is of high quality and available in various sizes. They are customisable as per your requirements. Contact Hitesh Metal for your needs and we assure you the best quality products for reasonable prices.

Monel 400 / K500 Equal Cross, Inconel 200 / 201 Equal Cross Fittings, Hastelloy C22 / C276 Equal Cross, Duplex Steel S31803 Equal Cross Pipe Fittings Dealer & Stockists

Equal Cross Buttweld Fitting Specifications:

Standards	ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule	Sch 5 TO Sch XXS.
Sizes	1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” )
Materials	Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type	Butt Weld (BW) / Seamless / ERW / Welded / Fabricated
Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Equal Cross Buttweld Fitting Dimensions

Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Center- to-End
			Run.C	Outlet. M
1/2	15	21.3	25	25
3/4	20	26.7	29	29
1	25	33.4	38	38
1-1/4	32	42.2	48	48
1-1/2	40	48.3	57	57
2	50	60.3	64	64
2-1/2	65	73.0	76	76
3	80	88.9	86	86
3-1/2	90	101.6	95	95
4	100	114.3	105	105
5	125	141.3	124	124
6	150	168.3	143	143
8	200	219.1	178	178
10	250	273.0	216	216
12	300	323.8	254	254
14	350	355.6	279	279
16	400	406.4	305	305
18	450	457	343	343
20	500	508	381	381
22	550	559	419	419
24	600	610	432	432
26	650	660	495	495
28	700	711	521	521
30	750	762	559	559
32	800	813	597	597
34	850	864	635	635
36	900	914	673	673
38	950	965	711	711
40	1000	1016	749	749
42	1050	1067	762	711
44	1100	1118	813	762
46	1150	1168	851	800
48	1200	1219	889	838

The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld Equal Cross Material & Grades

Stainless Steel Buttweld Equal Cross

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld Equal Cross

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld Equal Cross

ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld Equal Cross

ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld Equal Cross

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld Equal Cross

ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Use the contact button below for Equal Cross Buttweld Fittings Price List and Ready stock information.

Equal Cross Buttweld Fitting Applications

Off-Shore Oil Drilling Companies	Power Generation	Petrochemicals	Gas Processing
Specialty Chemicals	Pharmaceuticals	Pharmaceutical Equipment	Chemical Equipment
Sea Water Equipment	Heat Exchangers	Condensers	Pulp & Paper Industry

Equal Cross Buttweld Fitting Manufacturer & Supplier
