Pipe Cap Buttweld Fitting

Pipe Caps / Pipe End Caps Buttweld Fitting Manufacturer

Stainless Steel Buttweld Pipe End Caps Fittings, Carbon Steel Pipe End Caps, Alloy Steel Pipe End Caps, Duplex Steel Pipe End Caps Pipe Fittings Leading Manufacturer & Exporter

ASME / ANSI B 16.9 Pipe Caps, ANSI B16.28 End Caps, ASME B16.25 Pipe End Caps Manufacturer & Suppliers in India

Pipe caps are the pipe fittings used as a plug to cover the end of a pipe. H is a leading Pipe Cap Manufacturer . Our pipe cap fittings are of standard quality as all of our fittings are subject to strict inspection. From the time the raw material is procured to the dispatch of the finished goods our expert team monitors each and every process carefully. We are a quality pipe end cap manufacturers. The stainless steel buttweld pipe end caps are known for their sturdiness. We provide ANSI B16.9 pipe cap fittings which are of high quality and internationally recognised. Our forged pipe caps are known for their consistent appearance.

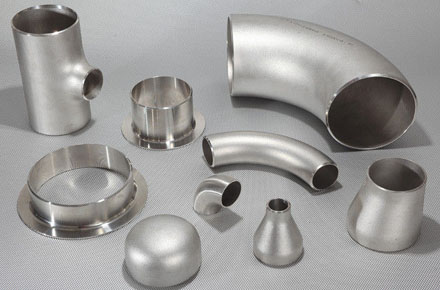

Pipe Cap Buttweld Fitting
Pipe Cap Buttweld Fitting

At Hitesh Metal we fabricate Stainless Steel Pipe Caps, Carbon Steel Pipe Caps and Alloy Steel Pipe Caps are widely used in chemical industries, power generation, and shipbuilding, paper manufacturing, petrochemical and pharmaceutical industries. We can supply Pipe Caps as per your company requirements.

Our titanium Pipe Caps, Monel Pipe Caps and ASME B 16.9 Pipe Caps are manufactured using highest quality of raw materials available at affordable prices. We recommend our nickel Pipe Caps or Cupro nickel Pipe Caps and Hastelloy Pipe Caps for excellent mechanical strength, high corrosion and oxidation resistance. These Pipe Caps are especially good for use at high temperatures due to their excellent heat resistance. We can also provide Duplex Steel Buttweld pipe caps which are acclaimed for their consistence and high corrosion resistance.

At Hitesh Metal we fabricate Buttweld Pipe Caps in different sizes and shapes which can be customised as per your company specifications. Call us to place your orders now and we guarantee you the best quality products at affordable rates.

Monel 400 / K500 Pipe Cap, Inconel 200 / 201 Pipe Cap Fittings, Hastelloy C22 / C276 Pipe Cap, Duplex Steel S31803 Pipe Cap Buttweld Fittings Dealer & Stockists

Pipe Cap Buttweld Fitting Availability:

  • Butt Weld Pipe Cap Buttweld Fitting
  • Seamless Pipe Cap Buttweld Fitting
  • Welded Pipe Cap Buttweld Fitting
  • ERW Pipe Cap Buttweld Fitting
  • Fabricated Pipe Cap Buttweld Fitting

Pipe Cap Buttweld Fitting Specifications:

Standards ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule Sch 5 TO Sch XXS.
Sizes 1/2" (15 NB) to 48" (1200NB), Outside diameter : 1/2" à 24" (21,34 – 609,5 mm), Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS (1,65 – 59.51 mm)
Materials Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type Butt Weld (BW) / Seamless / ERW / Welded / Fabricated
Thickness Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Pipe Cap Buttweld Fitting Dimensions

Pipe Cap Buttweld Fitting

CAPS – ANSI 16.9 dimension

Nominal Pipe Size Outside diameter
at bevel
Length (E) Limit wall thickness
1/2" 21.3 25 4.57
3/4" 26.7 25 3.81
1" 33.4 38 4.57
1 1/4" 42.2 38 4.83
1 1/2" 48.3 38 5.08
2" 60.3 38 5.59
2 1/2" 73.0 38 7.11
3" 88.9 51 7.62
3 1/2" 101.6 64 8.13
4" 114.3 64 8.64
5" 141.3 76 9.65
6" 168.3 89 10.92
8" 219.1 102 12.70
10" 273.0 127 12.70
12" 323.8 152 12.70
14" 355.6 165 12.70
16" 406.4 178 12.70
18" 457.0 203 12.70
20" 508.0 229 12.70
22" 559.0 254 12.70
24" 610.0 267 12.70
Dimension in mm
The dimensions are in millimeters
Source : ASME B16.9 – 2007
 Pipe Cap Buttweld Fitting Dimensions

CAPS – ANSI B 16.9 dimension

inches mm Height
D E
1/2 15 21,34 25,40
3/4 20 26,67 31,75
25 33,40 38,10
1 1/4 32 42,16 38,10
1 1/2 40 48,26 38,10
2 50 60,32 38,10
2 1/2 65 73,02 38,10
3 80 88,90 50,80
3 1/2 90 101,60 63,50
4 100 114,30 63,50
5 125 141,30 76,20
6 150 168,27 88,90
8 200 219,07 101,60
10 250 273,05 127,00
12 300 323,85 152,40
14 350 355,60 165,10
16 400 406,40 177,80
18 450 457,20 203,20
20 500 508,00 228,60
22 550 558,80 254,00
24 600 609,60 266,70
28 700 711,20 266,70
Dimension in mm
The dimensions are in millimeters
Source : ASME B16.9 – 2007

Buttweld Pipe Cap Material & Grades

Stainless Steel Buttweld Pipe Cap
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld Pipe Cap
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld Pipe Cap
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld Pipe Cap
ASTM A420 WPL3, A420 WPL6
Alloy Steel Buttweld Pipe Cap
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld Pipe Cap
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

Types of Pipe Cap Buttweld Fitting

  • Buttweld End Cap
  • Butt Weld Pipe Caps
  • 201 Stainless Steel End Cap
  • 202 Stainless Steel End Cap
  • 304 Stainless Steel End Cap
  • 304L Stainless Steel End Cap
  • 316TI Stainless Steel End Cap
  • 316H Stainless Steel End Cap
  • 316L Stainless Steel End Cap
  • 316LN Stainless Steel End Cap
  • 317 Stainless Steel End Cap
  • 317L Stainless Steel End Cap
  • 321 Stainless Steel End Cap
  • Duplex Steel End Cap
  • 347H Stainless Steel End Cap
  • 904L Stainless Steel End Cap
  • 321H Stainless Steel End Cap
  • 347 Stainless Steel End Cap
  • Stainless Steel Buttweld End Cap
  • Duplex Stainless Steel End Cap
  • 304H Stainless Steel End Cap
  • 309S Stainless Steel End Cap
  • 310S Stainless Steel End Cap
  • 310H Stainless Steel End Cap
  • 316 Stainless Steel End Cap
  • Alloy Steel Buttweld End Cap
  • Stainless Steel End Cap
  • Carbon Steel End Cap
  • Alloy Steel End Cap
  • Carbon Steel Buttweld End Cap
  • 309H Stainless Steel End Cap
  • Super Duplex End Cap
  • Steel Cap Pipe Fittings
  • Stainless Steel End Cap Suppliers
  • SS Buttweld End Caps
  • Welded Butt weld End Cap Stockholder
  • Seamless Butt weld End Cap Distributors
  • Carbon Steel End Cap
  • High Quality End Cap Manufacturer
  • Duplex Steel Buttweld End Cap
  • Super Duplex Steel Buttweld End Cap
  • Copper Nickel End Cap
  • High Nickel Alloy End Cap
  • Hastelloy End Cap Stockist
  • Titanium Buttweld End Cap
  • Inconel Butt weld End Cap

Pipe Cap Buttweld Fitting Available Standards

  • ASTM A403 End Cap
  • ASTM A234 WPB End Cap
  • ASTM A694 End Cap
  • ASTM A860 WPHY 52 End Cap
  • ASTM A860 WPHY 56 End Cap
  • ASTM A860 WPHY 60 End Cap
  • ASTM A860 WPHY 65 End Cap
  • ASTM A860 WPHY 70 End Cap
  • ASTM A234 End Cap
  • ASTM A234 Alloy Steel End Cap
  • ASTM A420 WPL6 End Cap
  • ASTM A860 WPHY 42 End Cap
  • ASTM A420 WPL3 End Cap
  • ASTM A234 WP12 End Cap
  • ASTM A234 WP11 End Cap
  • ASTM A234 WP22 End Cap
  • ASTM A234 WP5 End Cap
  • ASTM A234 WP9 End Cap
  • ASTM A234 WP91 End Cap
  • ASTM A403 Stainless Steel End Caps

Other Standards of Pipe Cap Buttweld Fitting

  • ASME B16.9 Butt weld End Cap
  • DIN 1.4961 End Cap
  • DIN 1.4840 End Cap
  • DIN 1.4845 End Cap
  • DIN 1.4449 End Cap
  • DIN 1.4438 End Cap
  • DIN 1.4841 End Cap
  • ASME B16.9 End Cap
  • ASME B16.25 End Cap
  • MSS SP-75 End Cap
  • SCH10 End Cap
  • SCH20 End Cap
  • SCH30 End Cap
  • STD SCH40 End Cap
  • DIN 1.4305 End Cap
  • DIN 1.4301 End Cap
  • DIN 1.4307 End Cap
  • DIN 1.4948 End Cap
  • DIN 1.4401 End Cap
  • DIN 1.4404 End Cap
  • DIN 1.4919 End Cap
  • DIN 1.4571 End Cap
  • DIN 1.4541 End Cap
  • DIN 1.4878 End Cap
  • UNS S32900 End Cap
  • UNS S34700 End Cap
  • UNS S34709 End Cap
  • UNS S31000 End Cap
  • UNS S31008 End Cap
  • A403 Gr WP304 End Cap
  • A403 Gr WP 304L End Cap
  • UNS N08904 End Cap
  • UNS S17400 End Cap
  • A403 Gr WP316Ti End Cap
  • UNS S32109 End Cap
  • A403 Gr WP321 End Cap
  • A403 Gr WP321H End Cap
  • A403 Gr WP347 End Cap
  • A403 Gr WP347H End Cap
  • A403 Gr WP317 End Cap
  • A403 Gr WP 317L End Cap
  • UNS S31700 End Cap
  • UNS S31703 End Cap
  • UNS S31400 End Cap
  • SCH60 End Cap
  • SCH XS End Cap
  • SCH80. End Cap
  • DIN 2605 End Cap
  • DIN 2609 End Cap
  • DIN 2617 End Cap
  • EN 10253-3 End Cap
  • A234WPC End Cap
  • A420 WPL6 End Cap
  • UNS S30300 End Cap
  • UNS S30400 End Cap
  • UNS S30403 End Cap
  • UNS S30409 End Cap
  • UNS S31600 End Cap
  • UNS S31603 End Cap
  • UNS S31609 End Cap
  • DIN 1.4460 End Cap
  • DIN 1.4550 End Cap
  • DIN 1.4006 End Cap
  • DIN 1.4005 End Cap
  • DIN 1.4021 End Cap
  • DIN 1.4016 End Cap
  • UNS S31635 End Cap
  • UNS S32100 End Cap
  • UNS S13800 End Cap
  • UNS S66286 End Cap
  • UNS S66286 End Cap
  • UNS S20910 End Cap
  • UNS S21800 End Cap
  • SCH160 End Cap
  • DIN 2615 End Cap
  • DIN 2616 End Cap
  • UNS S43020 End Cap
  • UNS S43100 End Cap
  • UNS S44004 End Cap
  • UNS S41000 End Cap
  • UNS S41600 End Cap
  • UNS S42000 End Cap
  • A403 Gr WP316 End Cap
  • A403 Gr WP316L End Cap
  • UNS S43000 End Cap
  • UNS S44600 End Cap
  • UNS S44200 End Cap
  • UNS S15500 End Cap
  • DIN 1.4104 End Cap
  • DIN 1.4057 End Cap
  • DIN 1.4125 End Cap
  • DIN 1.4762 End Cap
  • DIN 1.4742 End Cap
  • DIN 1.4539 End Cap
  • DIN 1.4542 End Cap
  • DIN 1.4545 End Cap
  • DIN 1.4534 End Cap
  • DIN 1.4980 End Cap
  • SCH100 End Cap
  • SCH120 End Cap
  • SCH140 End Cap
  • EN 10253-1 End Cap
  • ANSI B16.9 Buttweld End Cap Dealer
  • ASME B16.28 Buttweld Pipe End Caps Exporter
  • A234 AISI 4130 High Strength Low Alloyed Steel End Cap
  • EN 10253-2 End Cap
  • SCH XXS End Cap

Use the contact button below for Pipe Cap Buttweld Fitting Price List and Ready stock information.

Call +91-9619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

Pipe Cap Buttweld Fitting Applications

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

Pipe Cap Buttweld Fitting Manufacturer & Supplier


Iran, Argentina, Colombia, Mexico, Africa, Houston, Brazil, Tunisia, Kazakhstan, Vietnam, London, Trinidad and Tobago, Kuwait, Canada, Iraq, Sudan, Israel, Azerbaijan, Turkey, Egypt, Australia, Dubai, Chine, United States, Italy, Saudi Arabia, UAE, Malaysia, Sri Lanka, Nigeria, South Africa, Peru, Indonesia, UK, Germany, Bahrain, New Zealand, Thailand (Bangkok), Jordan, Russia, Venezuela, Ethiopa, Ghana, Uganda, Cameroon, Algeria, Morocco, Mozambique, Angola, Qatar, Yemen, Oman, Lebanon, Cyprus, Johannesburg, Brazzaville, Cairo, Maputo, Lagos, Douala, Tripoli, Mogadishu, Khartoum, Port Harcourt, Antananarivo, Port Elizabeth, Kano, New York, Abu Dhabi, Dar es Salaam, Benin, Kampala, Luanda, Conakry, Rabat, Bulawayo, Cape Town, Alexandria, Fez, Ouagadougou, Mbuji-Mayi, Soweto, Singapore, Dakar, Omdurman, Hong Kong, Zaria, Lubumbashi, Kinshasa, Harare, Abidjan, Yaoundé, Addis Ababa, Giza, Algiers, Accra, Colombo, Kaduna, Maiduguri, Nairobi, Casablanca, Pretoria, Kolwezi, Subra al-Haymah, Durban, Freetown, Bamako, Ibadan, South America, Austalia, Austria, Bangladesh, Mozabique, Myanmar, Netherland, Phillipine, Spain, Jordon.
Bangalore, Hyderabad, Ahmedabad, Chennai, Suryapet, Jamalpur, Bhiwadi, Ballia, Ambala, Sadar, Udgir, Miryalaguda, Bansberia, Mumbai, India, Maharashtra, Delhi, Karnataka, Andhra Pradesh, Kerala, Tripura, Benin, Puducherry, Mizoram, Manipur, Tadepalligudem, Betul, Nagapattinam, Bundi, Baraut, Buxar, Muktsar, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Pimpri and Chinchwad, Patna, Vadodara, Ghaziabad, Ludhiana, Agra, Nashik, Faridabad, Meerut, Rajkot, Gujarat, Tamil Nadu, West Bengal, Gujarat, Bihar, Rajasthan, Uttar Pradesh, Punjab, Haryana, Madhya Pradesh, Jharkhand, Chhattisgarh, Assam, Chandigarh, Orissa, Kalyan, Dombivali, Vasai, Coimbatore, Jabalpur, Gwalior, Vijayawada, Jodhpur, Madurai, Bhadreswar, Kasganj, Kalyani, Nagaur, Port, Blair, Datia, Hinganghat, Banswara, Nagda, Raipur, Kota, Guwahati, Solapur, Hubli and Dharwad, Virar, Varanasi, Srinagar, Aurangabad, Dhanbad, Amritsar, Navi Mumbai, Allahabad, Ranchi, Haora, Ulhasnagar, Jhansi, Kolapur, Ajmer, Akola, Durgapur, Nanded, Gorakhpur, Belgaum, Mangalore, Ambattur, Tirunelveli, Saharanpur, Guntur, Bikaner, Amravati, Kurnool, Bhavnagar, Dehradun, Asansol, Waghala, Gulbarga, Jamnagar, Ujjain, Loni, Siliguri.
