Hitesh Metal is one of the well-known manufacturer & trader for high quality Steel Ball Valves , which is a split ring that is engineered and designed to give a pre - measured minimum gap for socket welds. This valve is used in combustible gas trains in many industrial applications.

Stainless Steel Ball Valves offered by Hitesh Metal are used in hydraulic and pneumatic systems because the needle valve allows for precise flow regulation when there is low flow in a non - hazardous environment. These valves replace existing traditional techniques employed by pipeline engineers to generate a double block and bleed configuration in the pipeline.

Carbon Steel Ball Valves is often used for critical process service, which are for high pressure systems or toxic / hazardous fluid processes. Applications that use valves include instrument drain, chemical injection connection, chemical seal isolation, and gauge isolation.

Alloy Steel Ball Valves offered by Hitesh Metal do the work of three separate valves (two isolations and one drain) and require less space and have less weight. This design also has operational advantages, there are significantly fewer potential leak paths within the double block and bleed section of the pipeline. Because the Duplex Steel Ball Valves are full bore with an uninterrupted flow orifice they have got a negligible pressure drop across the unit. The pipelines where these valves are installed can also be pigged without any problems.

Hitesh Metal also offer these Nickel Alloy Ball Valves in different sizes, shapes and designs as per customers’ specifications at affordable rates.

Specifiaction of Stainless Steel, Nickel Alloy High Pressure Ball Valves

High Pressure Ball Valves Specifiactions:

Dimensions of ANSI/ASME B16.10 Ball Valves

Standards

Scope		Standard
Design*		ISO 17292/ API 6D
End-to-End	Socket-weld ends	ASME B16.11
	Screwed-end BSPT	ISO 7-1
	Screwed-end NPT	ASME B1.20.1
	End flange	ASME B16.5 RF/ FF/ RTJ
Face-to-face (Flanged)		ASME B16.10
Pressure testing		ISO 5208/ API 598
Fire Test		ISO 10497/ API 607

Test Pressures (bar)

	Class 150	Class 300	Class 600*
Shell - Hydrostatic	30	77	155
Seat - Hydrostatic	22	56	113
Seat - Pneumatic	5.5	5.5	5.5

Single-piece Ball Valves - Regular Bore (ASME Class 150 & 300)

Size		A		B		C	D	E	F	G	Wt.		ISO 5211 Base
DN	NPS	Cl 150	Cl 300	Cl 150	Cl 300						Cl 150	Cl 300	Cl 150	Cl 300
15	½	108	140	90	95	13	11	38	120	90	1	2	F03	F03
20	¾	117	152	100	115	19	11	38	120	90	1	2.5	F03	F03
25	1	127	165	110	125	25	17	46	140	100	2	4	F03	F03
40	1½	165	190	125	155	38	27	56	180	115	4	4.5	F04	F04
50	2	178	216	150	165	51	37	75	210	122	6.5	9	F05	F05
65	2½	190	241	180	190	64	49	102	210	142	11	15	F07	F07
80	3	203	282	190	210	76	62	175	390		15.5	22	F07	F07
100	4	229	305	230	255	102	74	195	390		25	35	F07	F07
150	6	267	403	280	320	152	98	245	*		40	65	F10	F12

All dimensions in mm and weights in kg

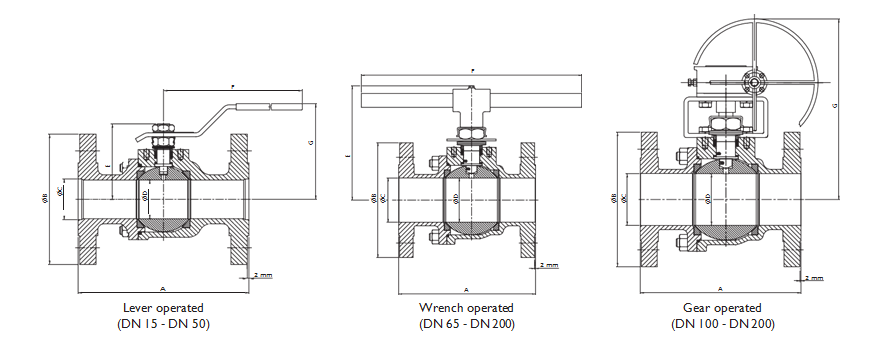

Two-piece Ball Valves - Full Bore (ASME Class 150 & 300)

Size		A		B		C	D	E		F	G	Wt.		ISO 5211 Base
DN	NPS	Cl 150	Cl 300	Cl 150	Cl 300			Cl 150	Cl 300			Cl 150	Cl 300	Cl 150	Cl 300
15	½	108	140	90	95	13	11	38	38	120	90	1	2
20	¾	117	152	100	115	19	17	45	45	120	97	2	3
25	1	127	165	110	125	25	24	55	55	158	97	3	4
40	1½	165	190	125	155	38	37	75	75	212	122	5	6	F05	F05
50	2	178	216	150	165	51	49	103	103	212	142	9	12	F07	F07
65	2½	190	241	180	190	64	62	175	175	390		14	20.5	F07	F07
80	3	203	282	190	210	76	74	185	195	390		19	28	F07	F07
100	4	229	305	230	255	102	98	235	247	*		31	45	F10	F12
150	6	394	403	280	320	152	148	285	315	**		78	105	F12	F14
200	8	457	502	345	380	203	198	345	371	980		141.5	169	F14	F16

All dimensions in mm and weights in kg

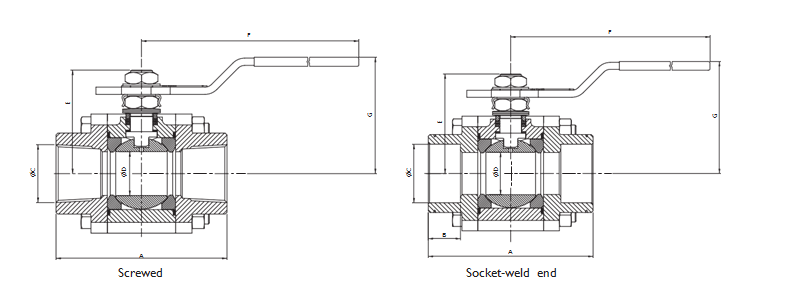

Three-piece Ball Valves - Full Bore (ASME Class 150, 300, 600 & 2500)

Size		A	B	C			D	E	F	G	Wt.
DN	NPS			SW	BSPT	NPT
8	¼	62	9.5	14.6 - 14.2	¼“ - 19	¼“ - 18	11	38	132	50	1
10	3/8	62	9.5	18.0 - 17.6	3/8” - 19	3/8” - 18	11	38	132	50	1
15	½	66	10	22.2 - 21.8	½“ - 14	½“ - 14	11	38	132	50	1
20	¾	75	13	27.6 - 27.2	¾“ - 14	¾“ - 14	17	46	132	58	1
25	1	92	13	34.3 - 33.9	1“ - 11	1“ - 11½	24	54	162	65	2
32	1¼	114	13	43.1 - 42.7	1¼“ - 11	1¼“ - 11½	37	75	192	83	4
40	1½	114	13	49.2 - 48.8	1½“ - 11	1½“ - 11½	37	75	192	83	4
50	2	132	16	61.7 - 61.2	2“ - 11	2“ - 11½	49	87	202	94	6
65	2½	185	16	74.4 - 73.9	2½“ - 11	2½“ - 8	62	200	390	200	15.5
80	3	208	16	90.3 - 89.8	3“ - 11	3“ - 11	74	225	390	225	25
100	4	240	19	115.7 - 115.2	4“ - 11	4“ - 8	98	250	600	250	39

All dimensions in mm and weights in kg
