Manifold Valves

Manifold Valves Manufacturer & Supplier

Best in Class Industrial High Pressure Manifold Valve, 2 Way, 3 Way & 5 Way Manifold Valves Manufacturer & Supplier in India

Stainless Steel Manifold Valves, Carbon Steel Manifold Valves, Alloy Steel Manifold Valve, Aluminium Manifold Valves, Brass Manifold Valves Stockist & Dealers

Hitesh Metal is one of the expertise manufacturer and exporter of Steel Manifold Valves, which is a hydraulic manifold that combines one or more block / isolate valves, and one or more bleed / vent valves, into one component for interface with other components (pressure measurement transmitters, gauges, switches, etc.) of a hydraulic (fluid) system.

The purpose of the block and bleed manifold is to isolate or block the flow of fluid in the system so the fluid from upstream of the manifold does not reach other components of the system that are downstream. Then these Stainless Steel Manifold Valves bleed off or vent the remaining fluid from the system on the downstream side of the manifold. For example, a block and bleed manifold would be used to stop the flow of fluids to some component, then vent the fluid from that component’s side of the manifold, in order to effect some kind of work (maintenance/repair/replacement) on that component.

Carbon Steel Manifold Valves is factory tested with nitrogen for leakage at the seat and packing, which is performed with de ionised water at 1.5 times the working pressure; however, other tests like vibration, temperatures, helium and so on are available upon requests. Each and every package is labelled for proper and easy identification.

Hitesh Metal also offer these Alloy Steel Manifold Valves in different sizes, shapes and designs as per customers’ specifications at affordable rates.

Types of 2 Way, 3 Way & 5 Way Manifold Valves

2 Valve Manifolds
Straight Type Tee Type
H Type

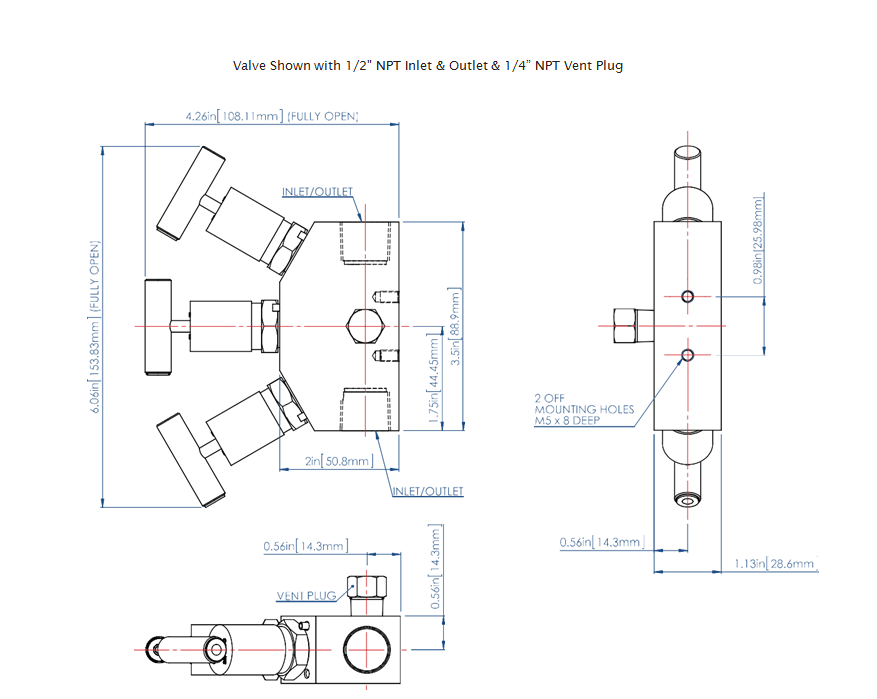

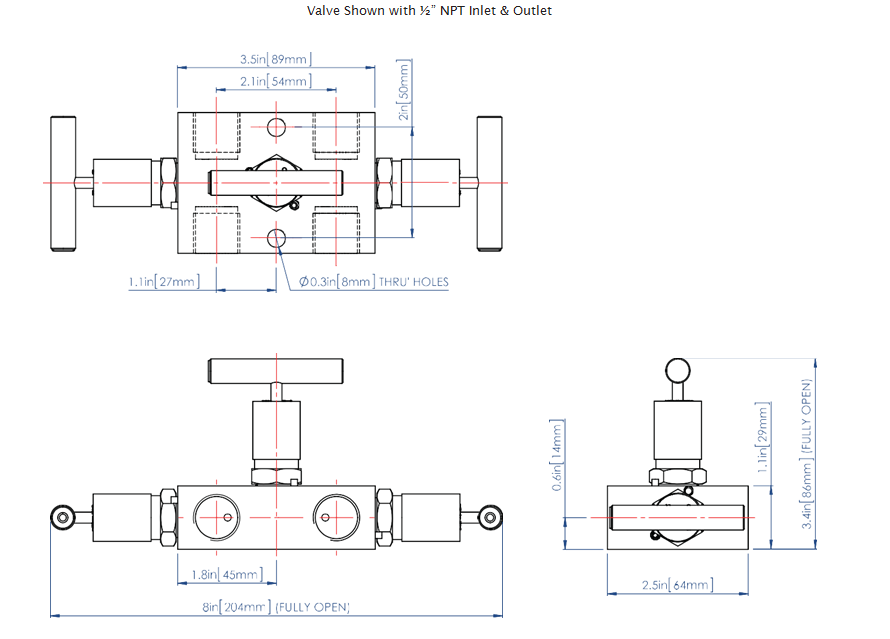

3 Valve Manifolds
Straight Type Tee Type
H Type

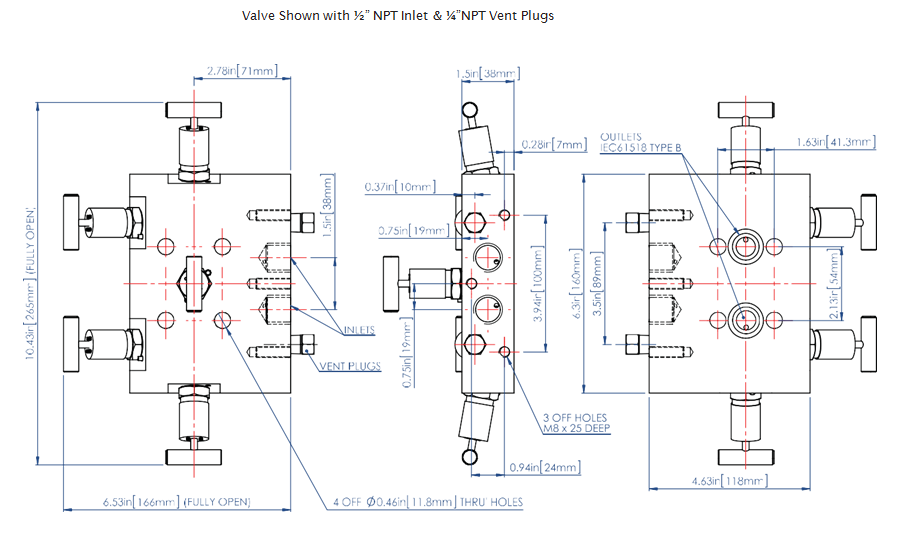

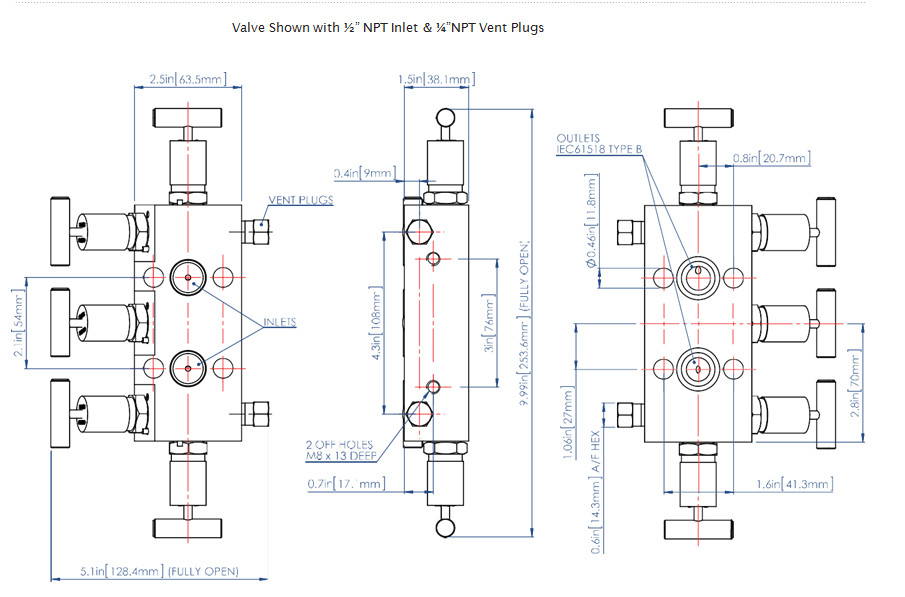

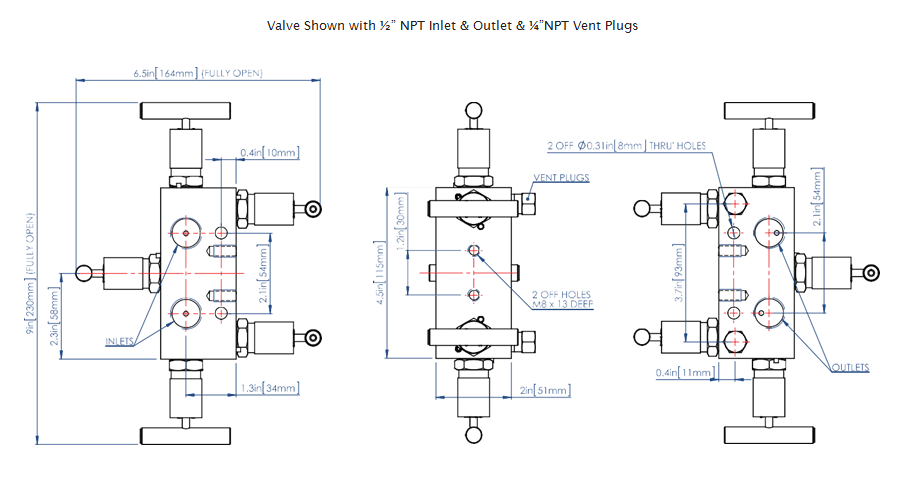

5 Valve Manifolds
Straight Type Tee Type
H Type
Monoflange Valves

Dimensions of ANSI/ASME B16.10 Manifold Valves

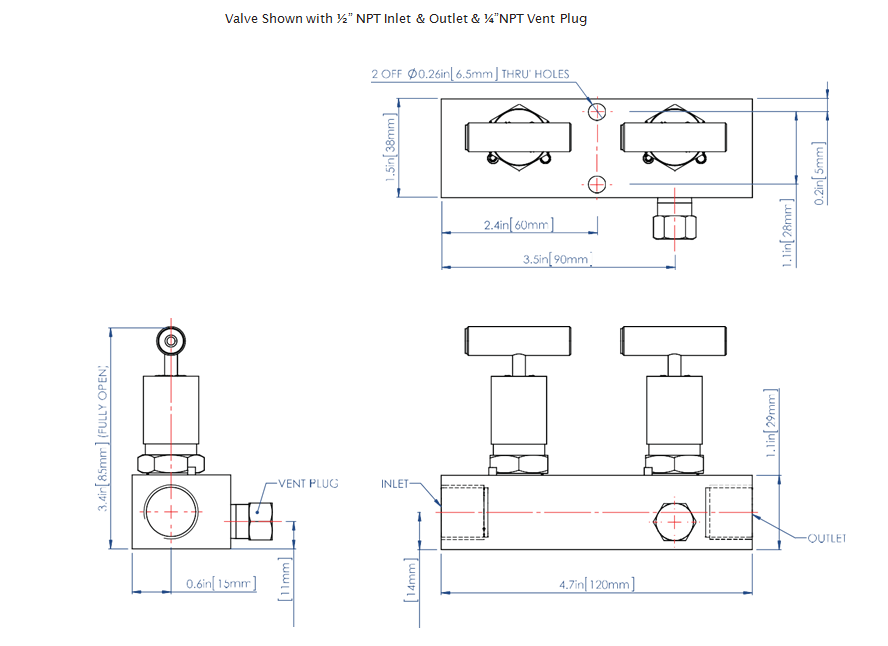

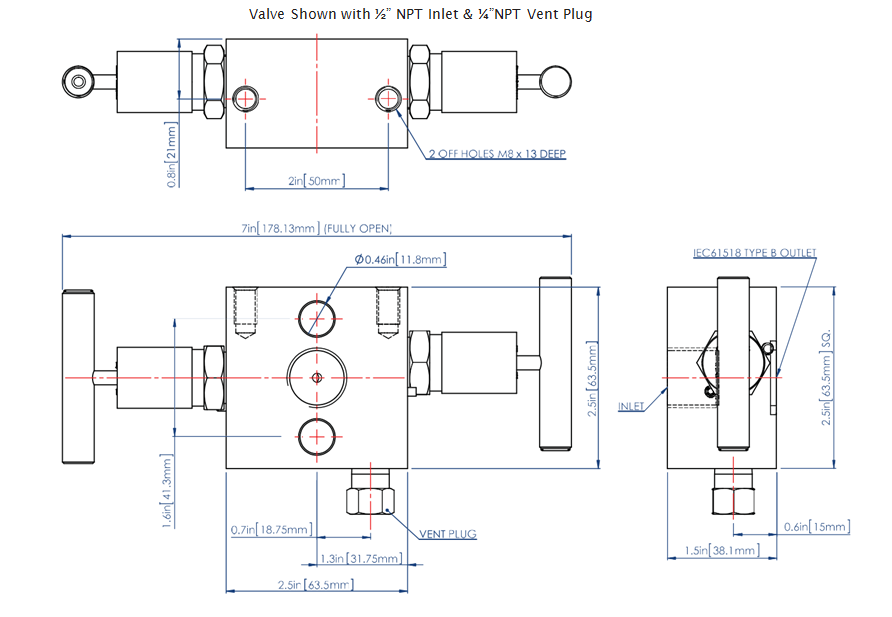

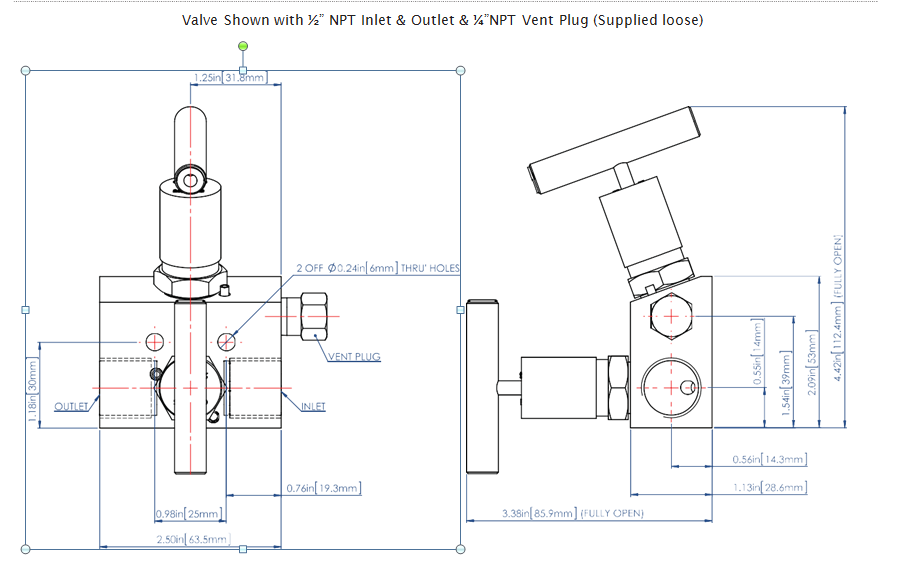

2-Way Manifold Valve

Types of ANSI/ASME B16.10 Manifold Valves

  • Stainless Steel Manifold Valves Manufacturer
  • Steel Manifold Valves Supplier
  • Alloy Steel Manifold Valves Exporter
  • High Pressure Manifold Valves
  • Steel Manifold Valves
  • Carbon Steel Manifold Valves
  • Metal Manifold Valves
  • Nickel Alloy Manifold Valves
  • Duplex Steel Manifold Valves
  • Inconel Manifold Valves
  • Hastelloy Manifold Valves
  • Low Temperature Carbon Steel Manifold Valves
  • Martensitic Steels Manifold Valves
  • Austenitic Stainless Steel Manifold Valves
  • Duplex Stainless Steels Manifold Valve
  • Super Duplex Stainless Steels Manifold Valve
  • Nickel Aluminum Bronze Manifold Valve
  • Titanium Alloy Steel Manifold Valves

For Manifold Valves price list as on :

Request the latest Manifold Valves Price List. Use the contact button below for Manifold Valves Ready stock information and updated price list.

Call +91-9619557302 OR

Email us at hiteshmetal@yahoo.com for quick response

Other Material Grades of ANSI/ASME B16.10 Manifold Valves

DESCRIPTION UNS GRADE FORGING CASTING BARSTOCK
Carbon Steel K30504 A105 A216 WCB A105
Low Temp Carbon K03011 A350 LF2 A352 LCB A350 LF2
High Yield Steel K03014 A694 F60 - A694 F60
3 1/2 Nickel Steel K32025 A350 LF3 A352 LC3 A350 LF3
5 Chrome, 1/2 Moly K41545 A182 F5 A217 C5 A182 F5
1 1/4 Chrome, 1/2 Moly K11597 A182 F11 A217 WC6 A182 F11
2 1/4 Chrome, 1 Moly K21590 A182 F22 A217 WC9 A182 F22
9 Chrome, 1 Moly K90941 A182 F9 A217 WC6 A182 F9
13 Chrome S41000 A182 F6A A351 CA15 A276 or A479 410
304 S30400 A182 F304 A351 CF8 A276 or A479 304
304L S30403 A182 F304L A351 CF3 A276 or A479 304L
316 S31600 A182 F316 A351 CF8M A276 or A479 316
316L S31603 A182 F316L A351 CF3M A276 or A479 316L
317L S31703 A182 F317L A351 CG8M A276 or A479 317L
321 S32100 A182 F321 - A276 or A479 321
347 S34700 A182 F347 A351 CF8C A276 or A479 347
17-4PH S17400 A564 630 - -
Alloy 400 N04400 B564 N04400 A494 M35-1 B164 N04400
Alloy K500 N05500 - - B865 N05500
Alloy 800 N08800 B564 N08810 - B408 N08800
Alloy 825 N08825 - - B425 N08825
Alloy 600 N06600 B564 N06600 A494 CY40 B166 N06600
Alloy 625 N06625 B564 N06625 A494 CW 6MC B446 N06625
Alloy B2 N10665 B564 N10665 A494 N 12MV B335 N10665
Alloy C N10002 - A494 CW6M -
Alloy C22 N06022 B574 N06022 A494 CX2MW B574 N06022
Alloy C276 N10276 B564 N10276 A494 CW12 MW B574 N10276
22% Duplex S31803 A182 F51 A890 Gr 4A A276 or A479 S31803
25% Duplex S32750 or 32760 A182 F53 A890 Gr 6A A276 or A479 S32750 or 60
254SMO S31254 A182 F44 A351 CK3MCuN A182 F44
904L N08904 B625 N08904 - B649 N08904
Titanium R50400 B381 F2 B367 C2 B348 Gr 2

ANSI/ASME B16.10 Manifold Valves Application

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

ANSI/ASME B16.10 Manifold Valves Manufacturer & Supplier
