Industrial Lug Dual Plate Check Valves Manufacturer & Suppliers in India

Hitesh Metal is a professional Lug Dual Plate Check valves Manufacturer & Supplier in the country. We offer Lug Type Dual Plate Check Valve of sizes ranging from 40 mm to 500 mm. We design and manufacture Dual-Plate Lug Check Valves at our state of the art technologically efficient warehouses that use modern machinery. We pride ourselves in our ready to sale inventory that is ready to be shipped at a moments’ notice of all our clients.

We are one of the leading organizations, engaged in manufacturing and supplying excellent quality Alloy Steel Lug Dual Plate Check Valves which are known for their sturdiness and strength. Our Bronze Lug Dual Plate Check Valves is a non-return valve that is much stronger, lighter in terms of weight and smaller in size as compared to conventional swing lift check valve. Its design has distinct advantages over conventional swing check valve.

We manufacture Stainless Steel Lug Dual Plate Check Valves of different cracking points such as 0.35 bar and 4.5 bar among other on demand valves. We are also known for our Brass Lug Dual Plate Check Valves that meet the national and international standards, to suit the needs of our clients in various industries and sectors.

Our professional supervisors and highly skilled and talented work force help produce the Aluminium Lug Dual Plate Check Valves of highest quality and durability. They are the corner stone to our success. Contact us for products that meet the required industry lug dual plate check valves specification.

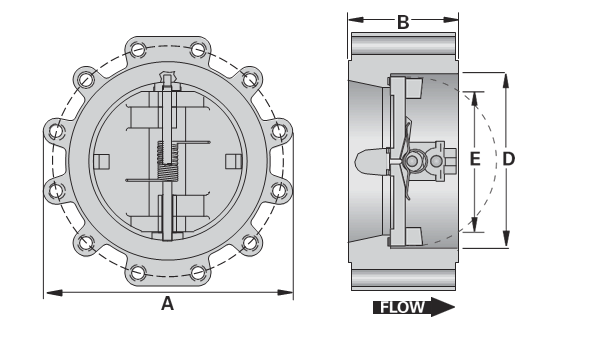

Dimensions of ANSI/ASME B16.10 Lug Dual Plate Check Valve

Lug Type – ASME Class 150

SIZE		DIMENSIONS								STUD DETAILS					END FACING	EYE BOLT HOLE SIZE (1)
		A		B		D		E		No.	Diameter		RF Stud Length
NPS	DN	in	mm	in	mm	in	mm	in	mm		in	mm	in	mm		in	mm
2"	50	6.00	152	2.38	60	2.38	60	0.00	0	4	0.63	16	2.75	70	RF	–	–
21/2"	65	7.00	178	2.63	67	2.88	73	1.05	27	4	0.63	16	2.75	70	RF	–	–
3"	80	7.50	191	2.88	73	2.88	73	1.68	43	4	0.63	16	3.00	76	RF	–	–
4"	100	9.00	229	2.88	73	4.50	114	3.37	85	8	0.63	16	3.00	76	RF	–	–
5"	125	10.00	254	3.38	86	5.56	141	4.42	112	8	0.75	19	3.25	83	RF	–	–
6"	150	11.00	279	3.88	98	6.63	168	5.62	143	8	0.75	19	3.25	83	RF	0.50	13
8"	200	13.50	343	5.00	127	8.63	219	7.35	187	8	0.75	19	3.50	89	RF	0.50	13
10"	250	16.00	406	5.75	146	10.75	273	9.45	240	12	0.88	22	3.75	95	RF	0.50	13
12"	300	19.00	483	7.13	181	12.75	324	11.15	283	12	0.88	22	3.75	95	RF	0.75	19
14"	350	21.00	533	7.25	184	14.00	356	12.23	311	12	1.00	25	4.25	108	RF	0.75	19
16"	400	23.50	597	1.50	38	16.00	406	13.99	355	16	1.00	25	4.25	108	RF	1.00	25
18"	450	25.00	635	8.00	203	18.00	457	15.95	405	16	1.13	29	4.75	121	RF	1.00	25
20"	500	27.50	699	8.63	219	20.00	508	17.78	452	20	1.13	29	5.00	127	RF	1.00	25
24"	600	32.00	813	8.75	222	24.00	610	21.29	541	20	1.25	32	5.50	140	RF	1.00	25
26"	650	34.25	870	14.00	356	26.00	660	21.96	558	24	1.25	32	6.50	165	RF	1.00	25
28"	700	36.50	927	15.00	381	28.00	711	22.06	560	28	1.25	32	6.50	165	RF	1.00	25
30"	750	38.75	984	12.00	305	30.00	762	27.80	706	28	1.25	32	6.75	171	RF	1.00	25
32"	800	41.75	1060	14.00	356	32.00	813	29.25	743	28	1.50	38	7.50	191	RF	1.00	25
36"	900	46.00	1168	14.50	368	36.00	914	33.40	848	32	1.50	38	8.00	203	RF	1.00	25
40"	1000	50.75	1289	17.00	432	40.00	1016	37.56	954	36	1.50	38	8.00	203	RF	1.50	38
42"	1050	53.00	1346	17.00	432	42.00	1067	39.20	996	36	1.50	38	8.25	210	RF	1.50	38
48"	1200	59.50	1511	20.63	524	48.00	1219	43.06	1094	44	1.50	38	8.75	222	RF	1.50	38
54"	1350	66.25	1683	23.25	591	54.00	1372	50.44	1281	44	1.75	44	9.75	248	RF	1.50	38
60"	1500	73.00	1854	26.00	660	60.00	1524	55.68	1414	52	1.75	44	10.25	260	RF	2.00	51

Lug Type – ASME Class 300

SIZE		DIMENSIONS								STUD DETAILS					END FACING	EYE BOLT HOLE SIZE (1)
		A		B		D		E		No.	Diameter		RFStud Length
NPS	DN	in	mm	in	mm	in	mm	in	mm		in	mm	in	mm		in	mm
2"	50	6.50	165	2.38	60	2.38	60	0.00	0	8	0.63	16	2.75	70	RF	–	–
21/2"	65	7.50	191	2.63	67	2.88	73	1.19	30	8	0.75	19	3.25	83	RF	–	–
3"	80	8.25	210	2.88	73	2.91	74	1.90	48	8	0.75	19	3.50	89	RF	–	–
4"	100	10.00	254	2.88	73	4.50	114	3.37	85	8	0.75	19	3.50	89	RF	–	–
5"	125	11.00	279	3.38	86	5.56	141	4.42	112	8	0.75	19	3.75	95	RF	–	–
6"	150	12.50	318	3.88	98	6.63	168	5.47	139	12	0.75	19	3.75	95	RF	0.50	13
8"	200	15.00	381	5.00	127	8.63	219	7.35	187	12	0.88	22	4.25	108	RF	0.50	13
10"	250	17.50	445	5.75	146	10.75	273	9.45	240	16	1.00	25	4.75	121	RF	0.50	13
12"	300	20.50	521	7.13	181	12.75	324	11.15	283	16	1.13	29	5.25	133	RF	0.75	19
14"	350	23.00	584	8.75	222	14.00	356	12.27	312	20	1.13	29	5.25	133	RF	0.75	19
16"	400	25.50	648	9.13	232	16.00	406	14.13	359	20	1.25	32	5.75	146	RF	1.00	25
18"	450	28.00	711	10.38	264	18.00	457	16.44	418	24	1.25	32	6.00	152	RF	1.00	25
20"	500	30.50	775	11.50	292	20.00	508	17.81	452	24	1.25	32	6.00	152	RF	1.00	25
24"	600	36.00	914	12.50	318	24.00	610	21.87	555	24	1.50	38	7.00	178	RF	1.00	25
26"	650	38.25	972	14.00	356	26.00	660	22.85	580	28	1.63	41	7.75	197	RF	1.00	25
28"	700	40.75	1035	15.00	381	28.00	711	24.41	620	28	1.63	41	8.25	210	RF	1.00	25
30"	750	43.00	1092	14.50	368	30.00	762	27.69	703	28	1.75	44	8.75	222	RF	1.00	25
32"	800	45.25	1149	16.00	406	32.00	813	28.93	735	28	1.88	48	9.25	235	RF	1.00	25
36"	900	50.00	1270	19.00	483	36.00	914	32.41	823	32	2.00	51	9.75	248	RF	1.00	25
40"	1000	48.75	1238	21.50	546	36.00	914	36.29	922	32	1.63	41	9.25	235	RF	1.50	38
42"	1050	50.75	1289	22.38	568	40.00	1016	35.99	914	32	1.63	41	9.50	241	RF	1.50	38
48"	1200	57.75	1467	24.75	629	44.00	1118	43.68	1109	32	1.88	48	10.50	267	RF	1.50	38
54"	1350	65.25	1657	28.25	718	50.00	1270	48.65	1236	28	2.25	57	12.25	311	RF	1.50	38
60"	1500	71.25	1810	33.00	838	56.00	1422	48.00	1219	32	2.25	57	12.75	324	RF	2.00	51

Lug Type – ASME Class 600

SIZE		DIMENSIONS								STUD DETAILS							END FACING	EYE BOLT HOLE SIZE (1)
		A		B		D		E		No.	Diameter		RFStud Length		RTJStud Length
NPS	DN	in	mm	in	mm	in	mm	in	mm		in	mm	in	mm	in	mm		in	mm
2"	50	6.50	165	2.38	60	2.38	60	0.00	0	8	0.63	16	3.25	83	3.75	95	RF/RTJ#23	–	–
3"	80	8.25	210	2.88	73	2.91	74	2.14	54	8	0.75	19	3.75	95	4.25	108	RF/RTJ#31	–	–
4"	100	10.75	273	3.13	79	4.50	114	3.54	90	8	0.88	22	4.25	108	4.75	121	RF/RTJ#37	–	–
6"	150	14.00	356	5.38	137	6.63	168	5.22	133	12	1.00	25	5.00	127	5.50	140	RF/RTJ#45	0.50	13
8"	200	16.50	419	6.50	165	8.63	219	6.98	177	12	1.13	29	5.75	146	6.00	152	RF/RTJ#49	0.50	13
10"	250	20.00	508	8.38	213	10.75	273	9.08	231	16	1.25	32	6.25	159	6.75	171	RF/RTJ#53	0.50	13
12"	300	22.00	559	9.00	229	12.75	324	11.32	288	20	1.25	32	6.50	165	6.75	171	RF/RTJ#57	0.75	19
14"	350	23.75	603	10.75	273	14.00	356	12.46	316	20	1.38	35	6.75	171	7.25	184	RF/RTJ#61	0.75	19
16"	400	27.00	686	12.00	305	16.00	406	12.89	327	20	1.50	38	7.50	191	7.75	197	RF/RTJ#65	1.00	25
18"	450	29.25	743	14.25	362	18.00	457	14.52	369	20	1.63	41	8.00	203	8.50	216	RF/RTJ#69	1.00	25
20"	500	32.00	813	14.50	368	20.00	508	17.06	433	24	1.63	41	8.25	210	9.00	229	RF/RTJ#73	1.00	25
24"	600	37.00	940	17.50	445	24.00	610	20.18	513	24	1.63	41	8.75	222	9.50	241	RF/RTJ#77	1.00	25
26"	650	40.00	1016	18.00	457	26.00	660	21.74	552	28	1.88	48	9.50	241	10.50	267	RF/RTJ#93	1.00	25
28"	700	42.25	1073	19.00	483	28.00	711	23.89	607	28	2.00	51	10.00	254	11.00	279	RF/RTJ#94	1.00	25
30"	750	44.50	1130	19.88	505	30.00	762	27.88	708	28	2.00	51	10.25	260	11.25	286	RF/RTJ#95	1.00	25
32"	800	47.00	1194	21.00	533	32.00	813	27.92	709	28	2.25	57	11.00	279	12.00	305	RF/RTJ#96	1.00	25
36"	900	51.75	1314	25.00	635	36.00	914	31.47	799	28	2.50	64	11.75	298	13.00	330	RF/RTJ#98	1.00	25
40"	1000	52.00	1321	26.00	660	36.00	914	33.38	848	32	2.25	57	12.50	318	–	–	RF	1.50	38
42"	1050	55.25	1403	27.63	702	38.00	965	36.78	934	28	2.50	64	13.50	343	–	–	RF	1.50	38
48"	1200	62.75	1594	31.00	787	42.00	1067	42.25	1073	32	2.75	70	15.00	381	–	–	RF	1.50	38
54"	1350	70.00	1778	35.00	889	48.00	1219	48.34	1228	32	3.00	76	16.50	419	–	–	RF	2.00	51
60"	1500	78.50	1994	39.00	991	54.00	1372	45.00	1143	28	3.50	89	18.75	476	–	–	RF	2.50	64
