Industrial High Pressure Globe Valves Manufacturer & Suppliers in India

Hitesh Metal is one of the major manufacturers, suppliers and stockholders of globe valve. Our industrial Globe Valves are linear motion valves which are round in shape. They have highly efficient throttling ability for high-pressure systems. Globe valves can be used in systems that work with wide range of temperature extremes or require frequent stroking, vacuum etc.

These globe valves find its efficient use for on-off service. However, it is also suited for frequent cycling and control of fluids at any point between the open and closed positions. The globe valve is found in mainly three designs- angle design, Y-shaped, and Z- shaped. Globe valves are comes in different types which include Flanged End Globe Valve, Screwed End Globe Valve, Butt Weld End Globe Valve, Socket Weld End Globe Valve and more.

Globe Valves Specification:

Depending on Globe valve construction material, it can work within temperature range of - 425°F to 1100°F. The materials may be Steel Globe Valve, Alloy Steel Globe Valves, Aluminium Globe Valves, Brass Globe Valves, and Bronze Globe Valves. Our Globe Valves are available in various sizes from .5 to .48 inches and for hand-operated manual valves they weigh up to 13,000lbs. Globe valves can handle pressure limits from 1480 to 1500psi which is dependent on the material of construction, size, and temperature.

We, at Hitesh Metal, make sure to provide the best material according to the client’s specification. Our company is well equipped with all kinds of resources for successfully meeting the demand of its products. Contact us today to get the best value price for globe valves.

Bolted Bonnet Globe Valves Dealer, Pressure Seal Globe Valves Stockist, Bellows Seal Globe Valves Dealer in India

ANSI/ASME B16.10 Globe Valves Specifications:

Dimensions of ANSI/ASME B16.10 Globe Valve

Standards

Parameter		Standard
Design	Gate Valves	ASME B16.34	API 600
	Globe Valves		API 623
	Check Valves		API 594
Ends	Face-to-face/ End-to-end Dimensions	ASME B16.10
	End Flange Dimensions	ASME B16.5/ 16.47
	Butt-weld End Dimensions	ASME B16.25
	Forged Fittings, Socket welding & Threading Dimensions	ASME B16.11

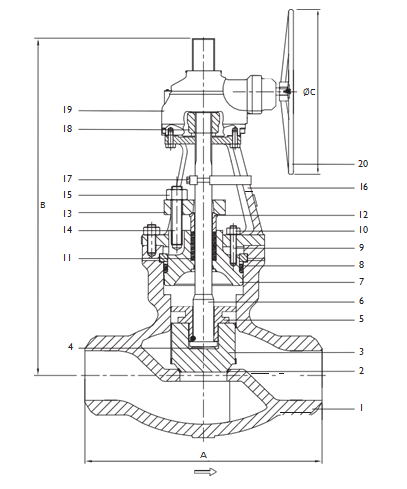

Globe Valves - T Pattern - Dimensions & Weights

Size		Class 600				Class 900				Class 1500				Class 2500
NPS	DN	A	B	C	Wt.	A	B	C	Wt.	A	B	C	Wt.	A	B	C	Wt.
2	50	292	425	228	40	216	575	406	65	216	550	406	85	279	750	508	155
3	80	356	540	305	65	305	590	406	75	305	690	500	170	368	712	486	240
4	100	432	610	457	165	356	675	630	130	406	710	630	280	457	800	710	340
6	150	559	805	710	270	508	795	710	350	559	920	900	530	610	1200	900	815
8	200	660	1135	900	645	660	1020	900	640	711	1280	710	915	762	1450	900	1400
10	250													914	1690	900	2150
16	400													1397	2435	1000	5555
18 450 1397 2645 1000 6900

Globe Valves - Y Pattern- Dimensions & Weights

Size		Class 900				Class 1500				Class 2500
NPS	DN	A	B	C	Wt.	A	B	C	Wt.	A	B	C	Wt.
2	50	368	620	406	60	368	620	406	60	451	620	406	110
3	80	381	630	508	80	470	710	400	110	578	875	630	185
4	100	457	865	500	170	546	875	630	170	673	920	710	330
6	150	610	1290	630	270	705	1200	900	410	914	1460	750	990
8	200	737	1710	710	610	832	1580	710	780	1022	1890	610	1900
10	250	838	1900	1000	830	991	1890	800	1375	1270	1960	900	2100
12	300	965	2080	1000	1300	1130	2040	900	2250	1041	2720	1000	3000
14	350	1029	2350	900	1550	1257	2390	1000	2570	1118	2760	710	4200
18	450	1219	2730	710	2800	1537	2900	1000	3500	1537	3020	1000	7150

All dimensions in mm and weights in kg
