Needle Valves Manufacturer & Supplier
Best Manufacturer & Supplier of Industrial High Pressure Needle Valve, Hydraulic Needle Valve, Flow Control Needle Valve in India
Stainless Steel Needle Valves, Carbon Steel Needle Valves, Alloy Steel Needle Valve, Aluminium Needle Valves, Brass Needle Valves Stockist & Dealers
Hitesh Metal is expertise trader & supplier for high quality Steel Needle Valves , which is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Fatigue resistance is lower than that in butt - welded construction due to the use of fillet welds and abrupt fitting geometry, but it is still better than that of most mechanical joining methods.
Stainless Steel Needle Valves offered by Hitesh Metal are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted. Valves are used only in conjunction with ASME Pipe and are available in the same size range. Carbon Steel Needle Valves are used in areas where pipe - work is permanent and are designed to provide good flow characteristics.
They are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller. Alloy Steel Needle Valves offered by Hitesh Metal is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations. To join pipe to Valves and fittings or to other sections of pipe, fillet - type seal welds be used.
Duplex Steel Needle Valves are produced to several ASTM standards and are manufactured in accordance with ASME B16.11. Hitesh Metal also offer these Nickel Alloy Needle Valves in different sizes, shapes and designs as per customers’ specifications at affordable rates.
ANSI/ASME B16.10 Needle Valves Specifiactions:
| Materials | CS, SS, Monel, Hastalloy, Duplex and High Nickel alloys | |
| Seat | Metal or Soft. | |
| Connections | Thread, Weld or Tube End | |
| Design | Forged Body with Inline/Straight or Angle Pattern, Integral Bonnet Design | |
| Size | 1/8 to 1”, Custom Sizes available on request | |
| End Connection | Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female, Female to Female | |
| Working Pressure | Up to 6000 PSIG, Needle Valves are also available that can handle higher pressure Stainless Steel Needle Valves: up to 6000 psig (414 bar) Steel Needle Valves: up to 3000psig (207 bar) Brass Needle Valves: up to 3000 psig (207 bar) |
|
| Temperature Rating | PTFE 450F,(232C)/ Grafoil 700 F(371C) PTFE Packing: -65 °F to 450 °F ( -54 °C to 232 °C) PEEK Packing: -65 °F to 600 °F ( -54 °C to 315 °C) |
|
Types of Stainless Steel, Nickel Alloy Needle Valves
| Female Needle Valves | NPT (Female) X NPT (Female) |
| Male Needle Valves | NPT( Male ) X NPT( Male) |
| Female Male Needle Valves / NPT( Male ) X NPT( Female ) | NPT( Male ) X NPT( Female ) : Angular |
| Tube End Needle Valves | Tube End X Tube End |
Needle Valves with tube to tube end connection are available in below types & sizes
| Needle Valve Tube to Tube End | W.P.- BAR | Series | Sizes for Threads | Types of Threads Available |
| 6 MM to 15 MM OD | 250 | Light | 6 MM to 15 MM | Metric Threads both end |
| 18 MM to 22 MM OD | 160 | Light | 18 MM to 22 MM | Metric Threads both end |
| 28 MM to 42 MM OD | 100 | Light | 28 MM to 42 MM | Metric Threads both end |
| 6 MM to 12 MM OD | 630 | Heavy | 6 MM to 12 MM | Metric Threads both end |
| 14 MM to 25 MM OD | 400 | Heavy | 14 MM to 25 MM | Metric Threads both end |
| 30 MM to 38 MM OD | 250 | Heavy | 30 MM to 38 MM | Metric Threads both end |
Dimensions of ANSI/ASME B16.10 Needle Valves
 |
|||
| End Connections | Order By Part Number | ||
| Inlet | Outlet | 316 Stainless Steel | Monel |
| ¼˝ Gyrolok® | ¼˝ Gyrolok® | 1711G4Y | — |
| ¼˝ male NPT | ¼˝ male NPT | 1711M4Y | 1711M4M |
| ¼˝ male NPT | ¼˝ female NPT | 1711L4Y | — |
| ¼˝ female NPT | ¼˝ female NPT | 1711F4Y | 1711F4M |
| 3/8˝ Gyrolok® | 3/8˝ Gyrolok® | 1711G6Y | — |
| 8mm Gyrolok | 8mm Gyrolok | 1711G8YMM | — |
|
|
|||||||||

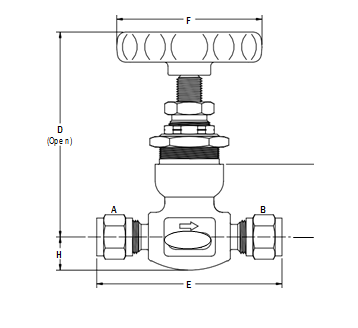

| Inlet A | Outlet B | D | e | HardSeat | F Soft Seat | Metal Handle | H | H1 | |
| ¼˝ female NPT | ¼˝ | inch | 3¼ | 211/16 | 17/8 | — | — | ½ | 25/32 |
| mm | 83 | 68 | 48 | — | — | 13 | 20 | ||
| ¼˝ female NPT | ¼˝ female NPT | inch | 3¼ | 2 | 17/8 | 13/8 | 23/8 | ½ | ¾ |
| mm | 83 | 51 | 48 | 35 | 60 | 13 | 19 | ||
| 3/8" female NPT | 3/8" female NPT | inch | 35/16 | 211/16 | 17/8 | 17/8 | — | ½ | ¾ |
| mm | 84 | 68 | 48 | 48 | — | 13 | 19 | ||
| ½˝ female NPT | ½˝ female NPT | inch | 35/16 | 25/16 | 17/8 | — | — | ½ | ¾ |
| mm | 84 | 75 | 48 | — | — | 13 | 19 | ||
| ½˝ male NPT | ½˝ female NPT | inch | 3¾ | 2¾ | 17/8 | — | — | 5/8 | 31/32 |
| mm | 95 | 70 | 48 | — | — | 16 | 25 | ||
| ½˝ female NPT | ½˝ female NPT | inch | 3¾ | 2½ | 23/8 | 17/8 | 23/8 | 5/8 | 15/16 |
| mm | 95 | 64 | 60 | 48 | 60 | 16 | 24 | ||
 |
|||||||||

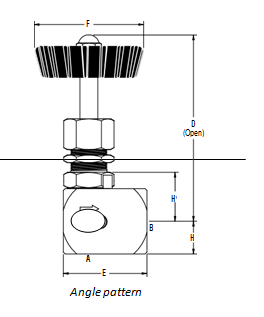

| Inlet A | Outlet B | D | e | HardSeat | F | Soft Seat | H | H1 | |
| ¼˝ female NPT | ¼˝ female NPT | inch | 35/16 | 17/16 | 17/8 | 13/8 | 9/16 | 13/16 | |
| mm | 84 | 37 | 48 | 35 | 14 | 21 | |||
| 3/8" female NPT | 3/8" female NPT | inch | 33/8 | 1½ | 17/8 | - | 5/8 | 7/8 | |
| mm | 86 | 38 | 48 | - | 16 | 22 | |||
Types of ANSI/ASME B16.10 Needle Valves
- Stainless Steel Needle Valves Manufacturer
- Steel Needle Valves Supplier
- Alloy Steel Needle Valves Exporter
- High Pressure Needle Valves
- Steel Needle Valves
- Carbon Steel Needle Valves
- Metal Needle Valves
- Nickel Alloy Needle Valves
- Duplex Steel Needle Valves
- Inconel Needle Valves
- Hastelloy Needle Valves
- Low Temperature Carbon Steel Needle Valves
- Martensitic Steels Needle Valves
- Austenitic Stainless Steel Needle Valves
- Duplex Stainless Steels Needle Valve
- Super Duplex Stainless Steels Needle Valve
- Nickel Aluminum Bronze Needle Valve
- Titanium Alloy Steel Needle Valves
- General Purpose Needle Valves
- Union Bonnet Needle Valves
- Integral Bonnet Barstock Needle Valves
- Bar Stock Needle Valves
- Hexagonal Bar Stock Needle Valves
- Forged Needle Valves
- Non Rotating-stem Needle Valves
- High-pressure Needle Valves
- Integral Bonnet Needle Valve
- Mini Needle Valve
- Needle Valve
- Needle Valve (Multi Port)
- Needle Valve (Hex Body)
- Needle Valve (Square Body)
- Needle Type Gate Valve double Ferrule Compression
- Needle Type Globe Valve
- Needle Valve Angle Female X Male
- Needle Valve, Od Tube, Double Ferrule
- SS316 Needle Valve, Od Tube, Double Ferrule
Available Grades of Stainless Steel Needle Valves
- SS 304 Needle Valve
- SS 316 Needle Valve
- SS 304/316 General Purpose Needle Valves
- SS 304/316 Integral Bonnet Barstock Needle Valves
- SS 304/316 Union Bonnet Needle Valves
- SS 304/316 Bar Stock Needle Valves
- SS 304/316 Hexagonal Bar Stock Needle Valves
- SS 304/316 Forged Needle Valves
- SS 304/316 Nonrotating-stem Needle Valves
- SS 304/316 High-pressure Needle Valves
- SS 304/316 Integral Bonnet Needle Valve
- SS 304/316 Mini Needle Valve
- SS 304/316 Needle Valve
- SS 304/316 Needle Valve (Multi Port)
- SS 304/316 Needle Valve (Hex Body)
- SS 304/316 Needle Valve (Square Body)
- SS 304/316 Needle Type Gate Valve double Ferrule Compression
- SS 304/316 Needle Type Globe Valve
- SS 304/316 Needle Valve Angle Female X Male
- SS 304/316 Needle Valve, Od Tube, Double Ferrule
- SS 316L Needle Valves Distributors
- Parker instrumentation Needle Valves Distributors
- Top Quality SS 316H Needle Valves Exporter
- Stainless Steel 310S Needle Valves Manufacturer
- Stainless Steel 304L Needle Valves
- ASME B16.10 SS 310 Needle Valves Suppliers
- Stainless Steel 321H Needle Valves
- SS 347 Trunnion Mounted Needle Valves
- 446 SS Needle Valves Exporter
- Stainless Steel 904L Needle Valves Stockholder
For Needle Valves price list as on :
Request the latest Needle Valves Price List. Use the contact button below for Needle Valves Ready stock information and updated price list.
Other Material Grades of ANSI/ASME B16.10 Needle Valves
| DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| Carbon Steel | K30504 | A105 | A216 WCB | A105 |
| Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
| High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
| 3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
| 5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
| 1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
| 2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
| 9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
| 13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
| 304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
| 304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
| 316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
| 316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
| 317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
| 321 | S32100 | A182 F321 | - | A276 or A479 321 |
| 347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
| 17-4PH | S17400 | A564 630 | - | - |
| Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
| Alloy K500 | N05500 | - | - | B865 N05500 |
| Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
| Alloy 825 | N08825 | - | - | B425 N08825 |
| Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
| Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
| Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
| Alloy C | N10002 | - | A494 CW6M | - |
| Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
| Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
| 22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
| 25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
| 254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
| 904L | N08904 | B625 N08904 | - | B649 N08904 |
| Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
ANSI/ASME B16.10 Needle Valves Stock
| A216 WCB Needle Valves | A352 LCB Needle Valves | A352 LC3 Needle Valves | A217 C5 Needle Valves |
| A351 CF8 Needle Valves | A351 CF3 Needle Valves | A351 CF8C Needle Valves | A494 M35-1 Needle Valves |
| A494 CY40 Needle Valves | A494 CW 6MC Needle Valves | A494 N 12MV Needle Valves | A494 CW6M Needle Valves |
| A494 CX2MW Needle Valves | A494 CW12 MW Needle Valves | A890 Gr 4A Needle Valves | A890 Gr 6A Needle Valves |
| A351 CK3MCuN Needle Valves | B367 C2 Needle Valves | K30504 Needle Valves | A351 CG8M Needle Valves |
| K03011 Needle Valves | K03014 Needle Valves | A351 CF3M Needle Valves | K32025 Needle Valves |
| K11597 Needle Valves | K21590 Needle Valves | K90941 Needle Valves | S41000 Needle Valves |
| S30400 Needle Valves | S30403 Needle Valves | S31600 Needle Valves | A217 WC9 Needle Valves |
| S31603 Needle Valves | S31703 Needle Valves | A217 WC6 Needle Valves | A217 WC6 Needle Valves |
| K41545 Needle Valves | A351 CA15 Needle Valves | S32100 Needle Valves | S34700 Needle Valves |
| SS316 V-Ball Control Valves | UNS S17400 Needle Valves | N04400 Needle Valves | N05500 Needle Valves |
| N08800 Needle Valves | N08825 Needle Valves | N06600 Needle Valves | N06625 Needle Valves |
| A890 Gr. 5A Needle Valves | A890 Gr. 6A Needle Valves | A995 5A Needle Valves | A995 6A Needle Valves |
| A182 F53 Needle Valves | A182 F55 Needle Valves | 2207 alloys Needle Valves | N10002 Needle Valves |
| N06022 Needle Valves | N10276 Needle Valves | S31803 Needle Valves | N10665 Needle Valves |
| SS316 Low Pressure Needle Valve | S32750 Needle Valves | S32760 Needle Valves | S31254 Needle Valves |
| N08904 Needle Valves | R50400 Needle Valves | SS316 Integral Bonnet Needle Valve | A351 CF8M Needle Valves |
ANSI/ASME B16.10 Needle Valves Application
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
