Plug Valves Manufacturer & Supplier
Stainless Steel Plug Valve Manufacturers, Carbon Steel Plug Valve Suppliers, Alloy Steel Plug Valve Exporters, Brass Plug Valve Providers
Top Industrial Plug Valve Manufacturers & Supplier in India
Plug valves are deployed in a valve to regulate the flow inside it. Plug Relief Valves are generally conical or cylindrical in shape which contains two or three path ways. Hitesh Metal is a renowned Plug Valves Manufacturer, Supplier in the market. We mass produce Industrial Plug Relief Valves of all sizes and shapes which are offered at economical prices.
The stem of a device is connected to larger diameter end of a Lubricant Plug Valve which is conically subsided. We design our Non-Lubricated Plug Valve and Lift-type plug valve in both 2-way and 3-way. In the latter one, the flow of fluid from first valve can be regulated to both second and third valves.
We lend raw material for manufacturing Eccentric Plug Valves and Expanding Plug Valves from illustrious and genuine vendors. We design Steel Safety Plug Valves in all sizes and shapes keeping all the industrial requirements in view. Our Alloy Steel Plug Valves are finely finished in order to ensure dimensional accuracy and flawlessness.
Our Aluminium Plug Valves are noted for their durability, strength, and toughness. On the other hand our Brass Plug Valves and Bronze Plug Valves are employed in household natural gas lines and vacuum applications.
For further details about our goods and services, you can come across our official website. Feel free to get In touch with us whenever necessary. Place your order right now!
Lubricant Plug Valve, Non-Lubricated Plug Valve, Lift-type Plug valve, Eccentric Plug Valve, Expanding Plug Valve Dealer & Wholesaler
ANSI/ASME B16.10 Plug Valves Specifications:
| Size | 25mm to 200mm |
| Pressure Rating | ASME 150# to 2500# |
| Materials | Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconnel, Titanium Alloy & Carbon Steel with Internal CorrosionResistant Alloy (CRA) Overlay |
| Design Standard | API6D, API 599, BS 5353, MESC SPE 77/107 |
| Pressure / Temperature Rating | ASME B 16.34 |
| Test (Inspection) Standard | API 598, API 6D, MESC 77/107, ISO 5208 |
| Construction Details | Inverted Plug Pressure Balanced /Lubricated |
| End Connection | Screwed, Socket Weld, Flanged, Hub End, Butt-Weld |
| Operator / Actuator | Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised) |
Dimensions of ANSI/ASME B16.10 Plug Valves
| Item # | Part Description | Stainless Steel | Brass |
| 1 | Body | ASTM A 479Type 316 | ASTM B 16Alloy C36000 |
| 2 | Plug* | ASTM A 479Type 316 | ASTM B 16Alloy C36000 |
| 3 | Seat** | Fluorocarbon Rubber | |
| 4 | O-Ring Seals** | Fluorocarbon Rubber | |
| 5 | Back-up Rings | PTFE | |
| 6 | Handle | Nylon 6/6 | |
| 7 | Handle Pin | 316 Stainless Steel | |
| 8 | Body Pin | 316 Stainless Steel (not shown) | |
| 9 | Retaining Ring | 316 Stainless Steel | |
| Material | Temperature Rating |
| Nitrile Rubber | -30°F to 225°F (-34°C to 107°C) |
| Fluorocarbon Rubber | -10°F to 450°F (-23°C to 232°C) |
| Highly Fluorinated Fluorocarbon Rubber | -10°F to 300°F (-23°C to 149°C) |
| Ethylene Propylene Rubber | -70°F to 275°F (-57°C to 135°C) |
 |
|||||||||||||||||

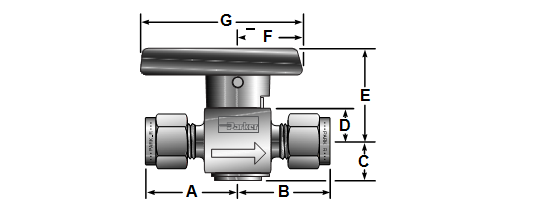

| Port Size | Basic Part # | Flow Data | End Connections | Dimensions Inches (mm) | |||||||||||||
| Orifice | Cv | XT * | |||||||||||||||
| Inch | mm | Port 1 Port 2 | A† | B† | C | D | E | F | G | ||||||||
| 2F | PR4 | 0.193 | 4.9 | 1.24 | 0.39 | 1/8" Female NPT | 0.89(22.6) | 0.89(22.6) | 0.46(11.7) | 0.38(9.7) | 1.07(27.2) | 0.75(19.1) | 1.88(47.8) | ||||
| 2M | 0.172 | 4.4 | 1.02 | 0.39 | 1/8" Male NPT | 0.77(19.6) | 0.77(19.6) | ||||||||||
| 2A | 0.093 | 2.4 | 0.22 | 0.48 | 1/8" A- | 1.00(25.4) | 1.00(25.4) | ||||||||||
| 2Z | 1/8" - | ||||||||||||||||
| 4F | 0.193 | 4.9 | 1.24 | 0.39 | 1/4" Female NPT | 1.05(26.7) | 1.05(26.7) | ||||||||||
| 4M | 0.193 | 4.9 | 1.24 | 0.39 | 1/4" Male NPT | 0.96(24.4) | 0.96(24.4) | ||||||||||
| 4A | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" A- | 1.09(27.7) | 1.09(27.7) | ||||||||||
| 4Z | 1/4" - | ||||||||||||||||
| 4Q | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" UltraSeal | 0.85(21.7) | 0.85(21.7) | ||||||||||
| 4V | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" VacuSeal | 1.02(25.9) | 1.02(25.9) | ||||||||||
| 6M | 0.193 | 4.9 | 1.24 | 0.39 | 3/8" Male NPT | 0.94(23.9) | 0.94(23.9) | ||||||||||
| 6A | 0.193 | 4.9 | 1.24 | 0.39 | 3/8" A- | 1.14(29.0) | 1.14(29.0) | ||||||||||
| 6Z | 3/8" - | ||||||||||||||||
| M3A | 0.086 | 2.2 | 0.15 | 0.48 | 3mm A- | 0.98(24.9) | 0.98(24.9) | ||||||||||
| M3Z | 3mm - | ||||||||||||||||
| M6A | 0.188 | 4.8 | 1.18 | 0.41 | 6mm A- | 1.08(27.4) | 1.08(27.4) | ||||||||||
| M6Z | 6mm - | ||||||||||||||||
| M8A | 0.193 | 4.9 | 1.24 | 0.48 | 8mm A- | 1.11(28.2) | 1.11(28.2) | ||||||||||
| M8Z | 8mm - | ||||||||||||||||
| 4F | PR6 | 0.281 | 7.1 | 3.19 | 0.28 | 1/4" Female NPT | 1.19(30.2) | 1.19(30.2) | 0.67(17.0) | 0.56(14.2) | 1.49(37.8) | 0.99(25.1) | 2.40(61.0) | ||||
| 6A | 0.281 | 7.1 | 3.19 | 0.28 | 3/8" A- | 1.33(33.8) | 1.33(33.8) | ||||||||||
| 6Z | 3/8" - | ||||||||||||||||
| 8F | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" Female NPT | 1.44(36.6) | 1.44(36.6) | ||||||||||
| 8M | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" Male NPT | 1.32(33.5) | 1.32(33.5) | ||||||||||
| 8A | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" A- | 1.44(36.6) | 1.44(36.6) | ||||||||||
| 8Z | 1/2" - | ||||||||||||||||
| M8A | 0.250 | 6.4 | 2.84 | 0.29 | 8mm A- | 1.30(33.0) | 1.30(33.0) | ||||||||||
| M8Z | 8mm - | ||||||||||||||||
| M10A | 0.281 | 7.1 | 3.19 | 0.28 | 10mm A- | 1.34(34.0) | 1.34(34.0) | ||||||||||
| M10Z | 10mm - | ||||||||||||||||
| M12A | 0.281 | 7.1 | 3.19 | 0.28 | 12mm A- | 1.47(37.3) | 1.47(37.3) | ||||||||||
| M12Z | 12mm - | ||||||||||||||||
Types of ANSI/ASME B16.10 Plug Valves
- Plug Valves Manufacturer
- Plug Valves Supplier
- Plug Valves Stock
- Industrial Plug Relief Valves
- Lubricant Plug Valve
- Non-Lubricated Plug Valve
- Lift-type plug valve
- Eccentric Plug Valve
- Expanding Plug Valve
- Steel Safety Plug Valves
- Alloy Steel Plug Valves
- Aluminium Plug Valves
- Brass Plug Valves
- Bronze Plug Valves
- Carbon Steel Plug Valves
- Hastelloy Plug Valves
- Inconel Plug Valves
- Low Temperature Carbon Steel Plug Valves
- Martensitic Steels Plug Valves
- Austenitic Stainless Steel Plug Valves
- Duplex Stainless Steels Plug Valve
- Super Duplex Stainless Steels Plug Valve
- Nickel Alloys Plug Valve
- Nickel Aluminum Bronze Plug Valve
- Titanium Alloy Steel Plug Valves
For Plug Valves price list as on :
Request the latest Plug Valves Price List. Use the contact button below for Plug Valves Ready stock information and updated price list.
Other Material Grades of ANSI/ASME B16.10 Plug Valves
| DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| Carbon Steel | K30504 | A105 | A216 WCB | A105 |
| Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
| High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
| 3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
| 5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
| 1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
| 2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
| 9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
| 13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
| 304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
| 304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
| 316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
| 316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
| 317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
| 321 | S32100 | A182 F321 | - | A276 or A479 321 |
| 347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
| 17-4PH | S17400 | A564 630 | - | - |
| Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
| Alloy K500 | N05500 | - | - | B865 N05500 |
| Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
| Alloy 825 | N08825 | - | - | B425 N08825 |
| Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
| Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
| Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
| Alloy C | N10002 | - | A494 CW6M | - |
| Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
| Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
| 22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
| 25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
| 254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
| 904L | N08904 | B625 N08904 | - | B649 N08904 |
| Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
ANSI/ASME B16.10 Plug Valves Application
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
