Industrial PFA Lined Valves Manufacturer & Supplier in India

Hitesh Metal is an eminent PFA Lined Valves Supplier and manufacturer based in India. We maintain a very large PFA lined valves stock and are well known in the industry for different PFA Lined Valves types which are supplied to a wide base of clients across a number of industries.

We assure you that all our products meet the required PFA Lined Valves Specification. We are renowned suppliers of PFA Lined Ball Valve in size range from1/2" (DN15) to 6"(DN 150) with lining thickness of minimum 3.0 mm / 5.0 mm overall. PFA Lined Plug Valve is designed according to the modular assembly principle. We supply PFA Lined Diaphragm Valve which is primarily used in the fields of water and waste water treatment, mining, the mineral, paper and cellulose processing industry, the chemical industry or at power stations and steelworks.

We are renowned for our PFA Lined Check Valve and PFA Lined Butterfly Valve that are in compliance with the national and international standards.  Our quality controllers strictly supervise the fabrication of Alloy Steel PFA Lined Valves such as Bronze PFA Lined Valves and Brass PFA Lined Valves that are designed based on varied parameters of quality before the delivery of these products to the desired locations. We also deliver Stainless Steel PFA Lined Valves and Aluminium PFA Lined Valves in varying sizes and thickness.

We pride ourselves in offering a comprehensive that we offer at a very reasonable and commendable price list to all our esteemed clients. Call or email us to know more and help us serve you better.

PFA Lined Ball Valves, PFA Lined Plug Valves, PFA Lined Diaphragm Valve, PFA Lined Butterfly Valve, PFA Lined Check Valves, PFA Lined Wafer Type Swing Check Valve Dealer & Wholesaler

ANSI/ASME B16.10 PFA Lined Valves Specifications:

Dimensions of ANSI/ASME B16.10 PFA Lined Valve

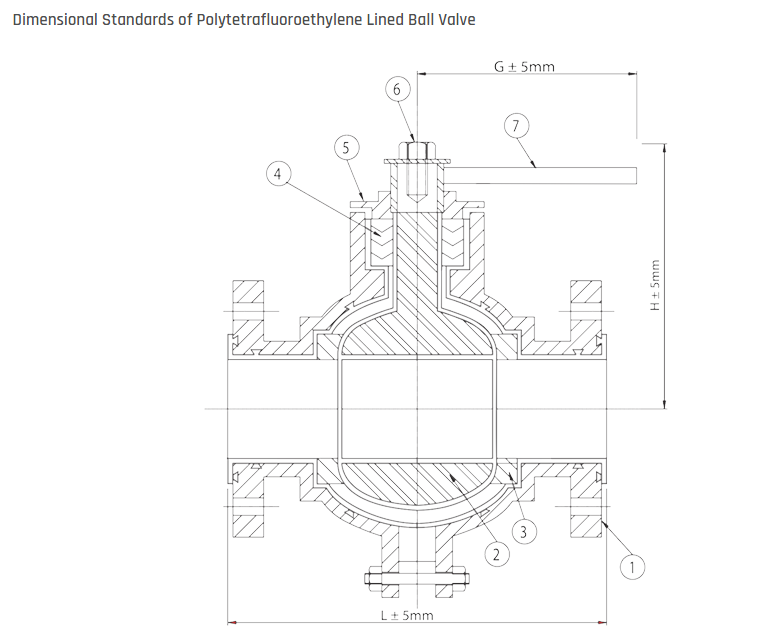

PFA Ball Valve

SIZE	L	G	H	WEIGHT
15	108	134	85	2.15 Kg
20	117	133	85	3.10 Kg
25	127	158	95	3.75 Kg
40	165	228	120	6.75 Kg
50	178	228	135	9.75 Kg
80	203	325	165	19.50 Kg
100	229	377	180	31.00 Kg
150	267	548	250	56.00 Kg

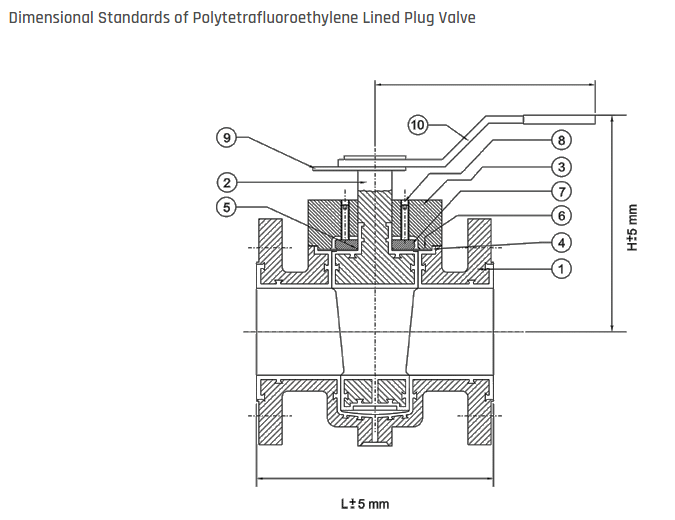

PFA Lined Plug Valve

SIZE	L	G	H
15	108	158	95
20	117	228	100
25	127	228	105
40	165	325	130
50	178	325	140
80	203	548	170
100	228	548	217
150	268	575	300

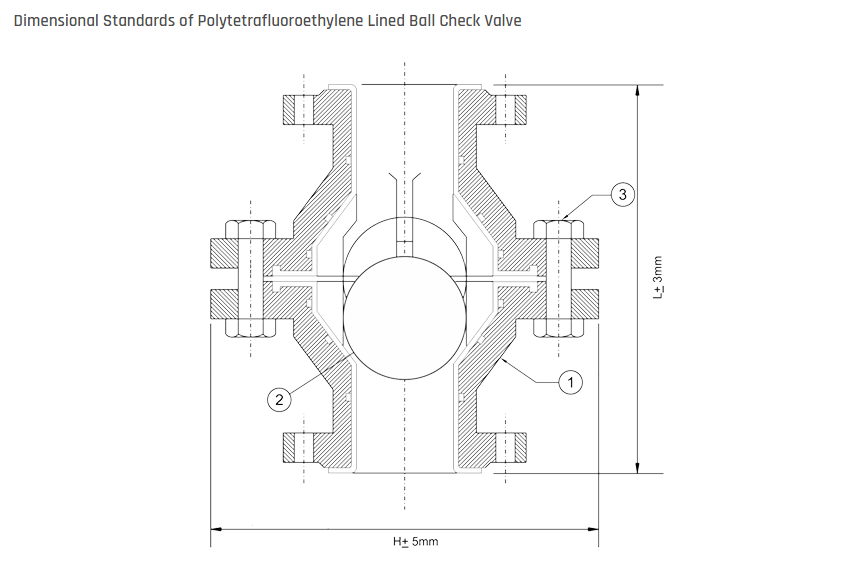

PFA Lined Ball Check Valve

SIZE	L	H
15	130	105
20	150	115
25	127	125
40	165	160
50	178	175
80	203	240
100	229	270
150	400	330
200	600	381

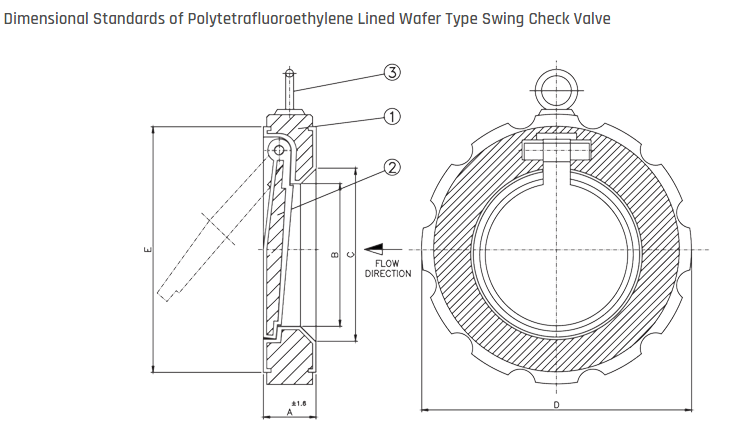

PFA Lined Wafer Type Swing Check Valve

NB	A	B	C	D	E
40	30	20	35	95	70
50	35	30	52	110	90
80	46	42	64	142	124
100	52	65	80	180	152
150	56	111	128	233	207
200	60	133	175	295	260
250	68	184	224	348	317
300	78	232	272	398	367

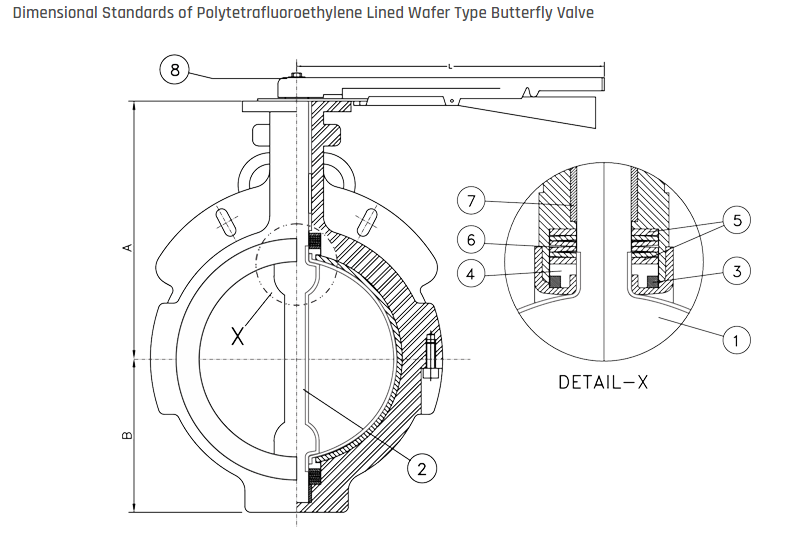

PFA Lined Wafer Type Butterfly Valve

SIZE	F/F	A	B	L
50	43	100	70	265
65	46	114	70	265
80	46	120	80	265
100	52	158	110	350
125	56	175	125	350
150	56	190	130	430
200	60	220	160	430
250	68	250	185	G.Box
300	78	285	215	G.Box
350	78	325	285	G.Box

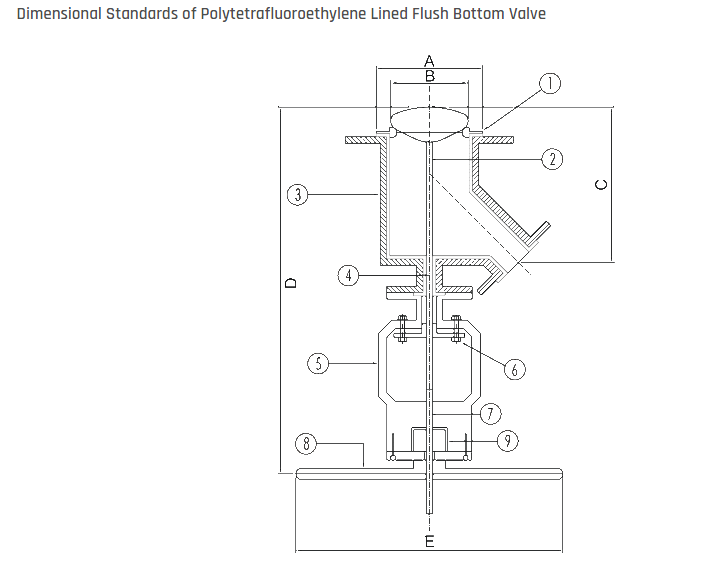

PFA Lined Flush Bottom Valve

SIZE	A	B	C	E	E
50 X 25	90	40	100	220	150
80 X 50	127	70	160	430	200
100 X 80	160	88	220	500	200
150 X 100	210	140	330	600	250

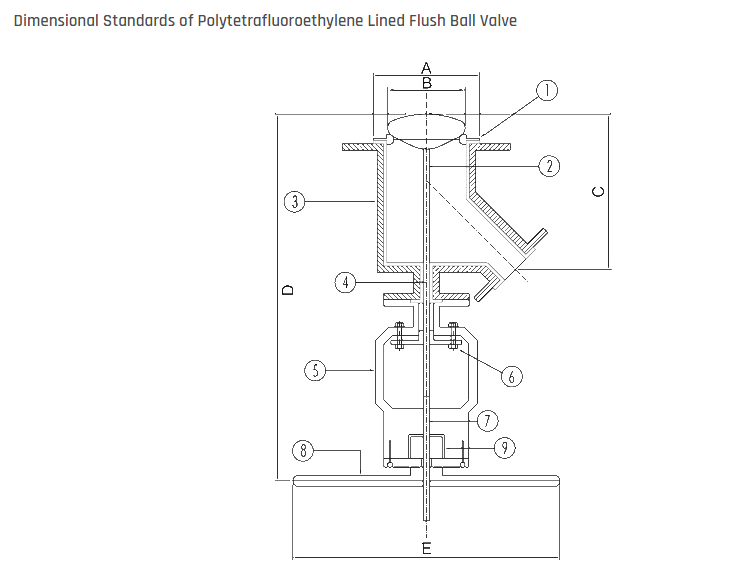

PFA Lined Flush Ball Valve

SIZE	A	B	C	E	E
50 X 25	90	40	100	220	150
80 X 50	127	70	160	430	200
100 X 80	160	88	220	500	200
150 X 100	210	140	330	600	250

For PFA Lined Valves price list as on 02 February, 2018:

Request the latest PFA Lined Valves Price List. Use the contact button below for PFA Lined Valves Ready stock information and updated price list.
